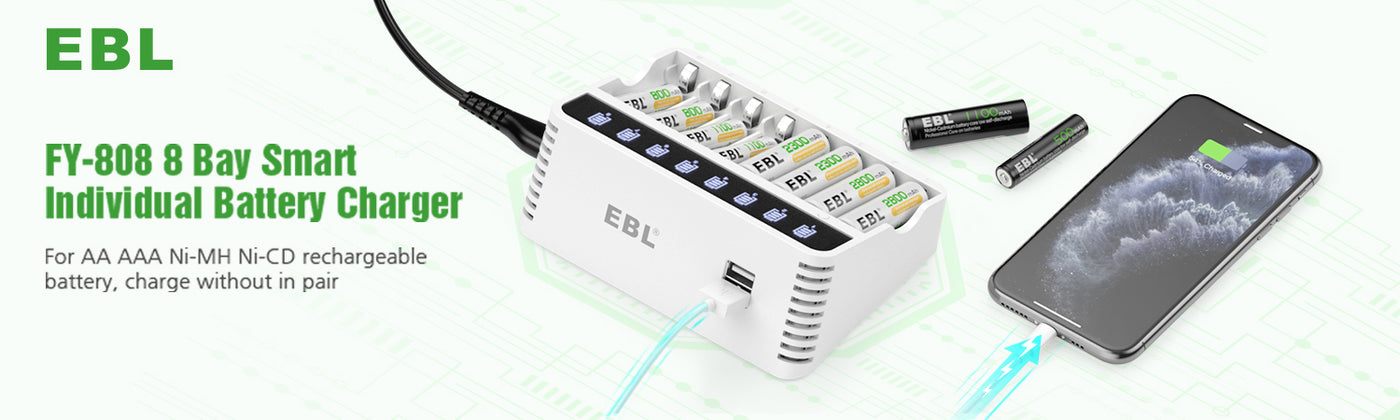

EBL 8 Bay Individual AA AAA Battery Charger with Discharge Function for AA AAA Ni-MH Ni-CD Rechargeable Batteries - with LCD Display and 2 USB Output Port
⚡FY-808⚡

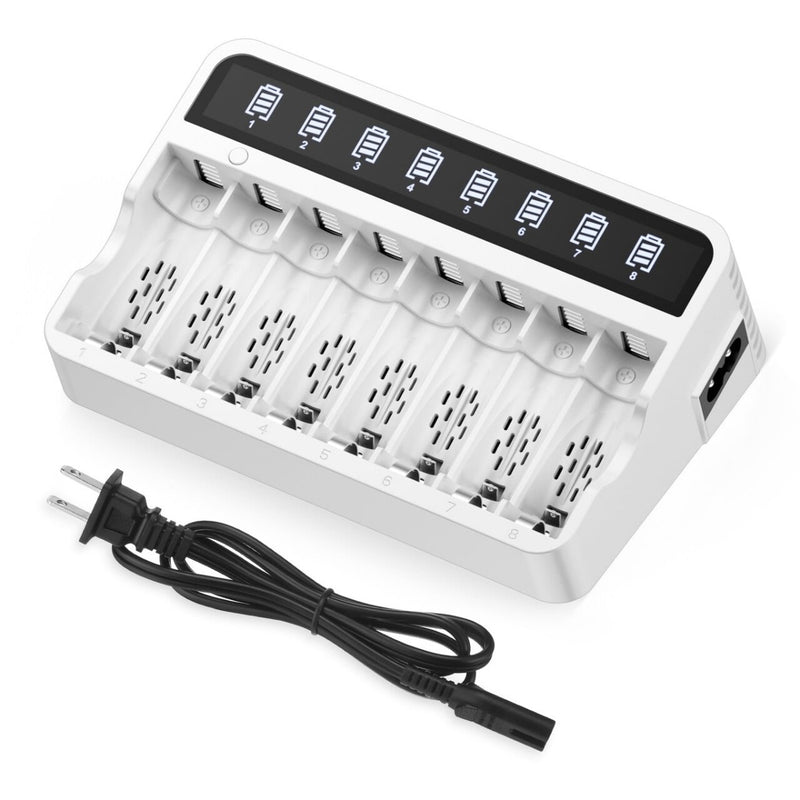

Individual Battery Charger
The smart battery charger has 8 independent charge slots, you can fastly charge any number of aa aaa rechargeable battery, without charging in pairs. Taking just 4 hours to fully charge your ni-mh/ni-cd aa aaa battery.

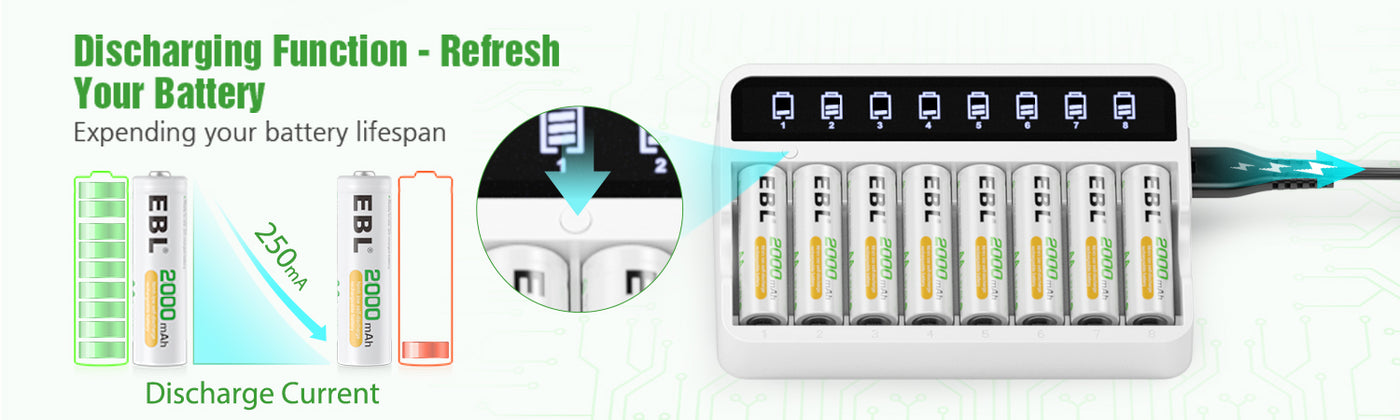

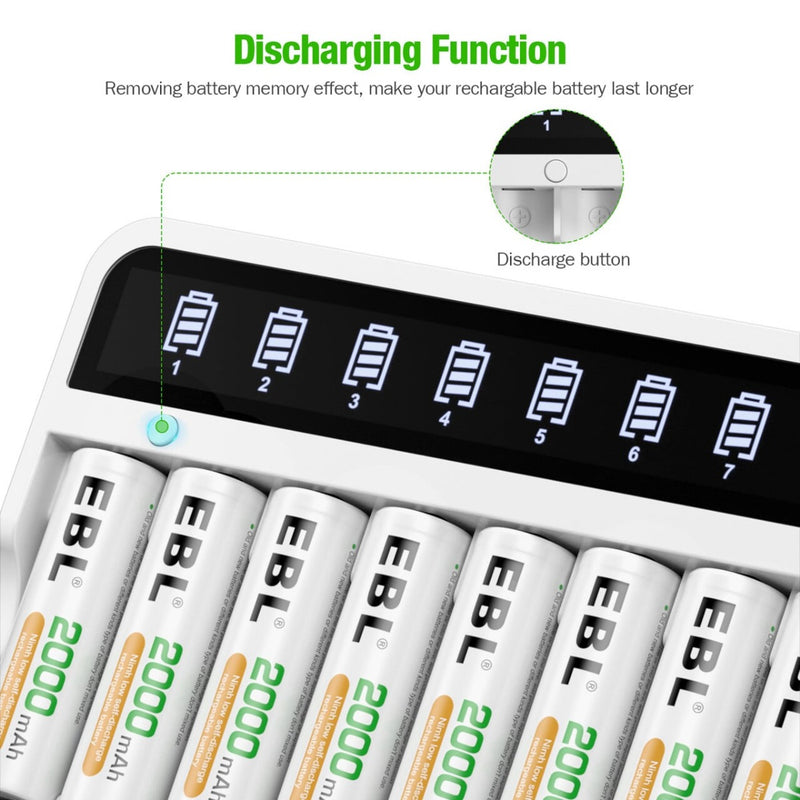

Discharge Function
Pressing the discharge button for 3 seconds, the smart battery charger will turn to discharge mode, discharging the aa/aaa rechargeable batteries, which can reduce battery memory effect, expand your battery life and save your money. (Press the discharge button again it will turn to charge mode)

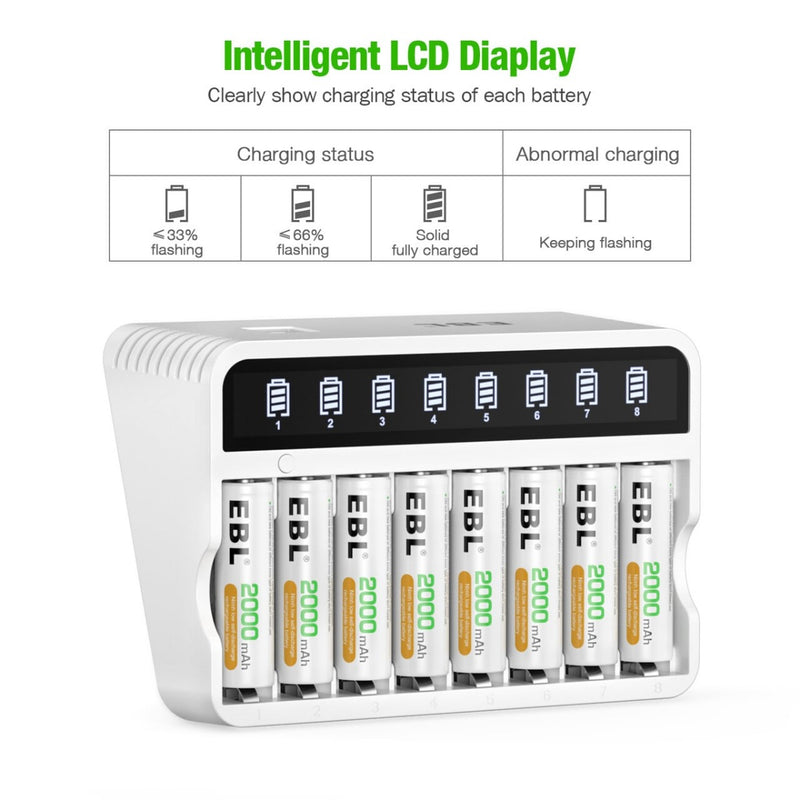

Clear LCD Screen
The 8 bays battery charger with a high-definition LCD screen shows the charging progress of each battery. The battery icon will flash when detected defective battery or non-rechargeable battery.

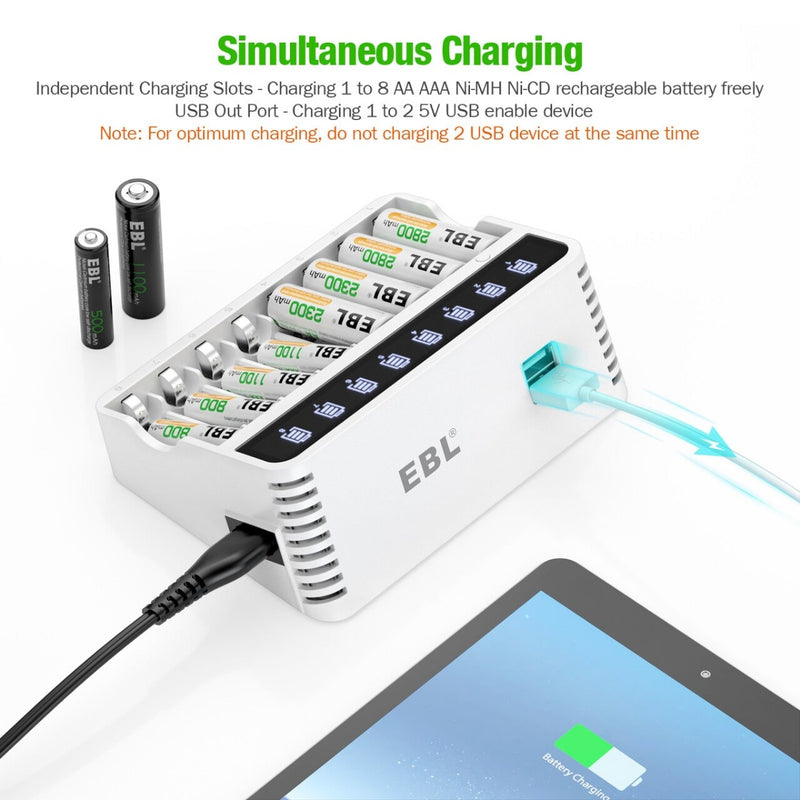

2 USB Output
Multi-function battery charger equipped with 2 USB ports（5V/2.4A）for charging a smartphone, tablet, or another USB device. You can charge 5V USB enable devices and aa/aaa rechargeable battery at the same time, more convenient for your daily life.

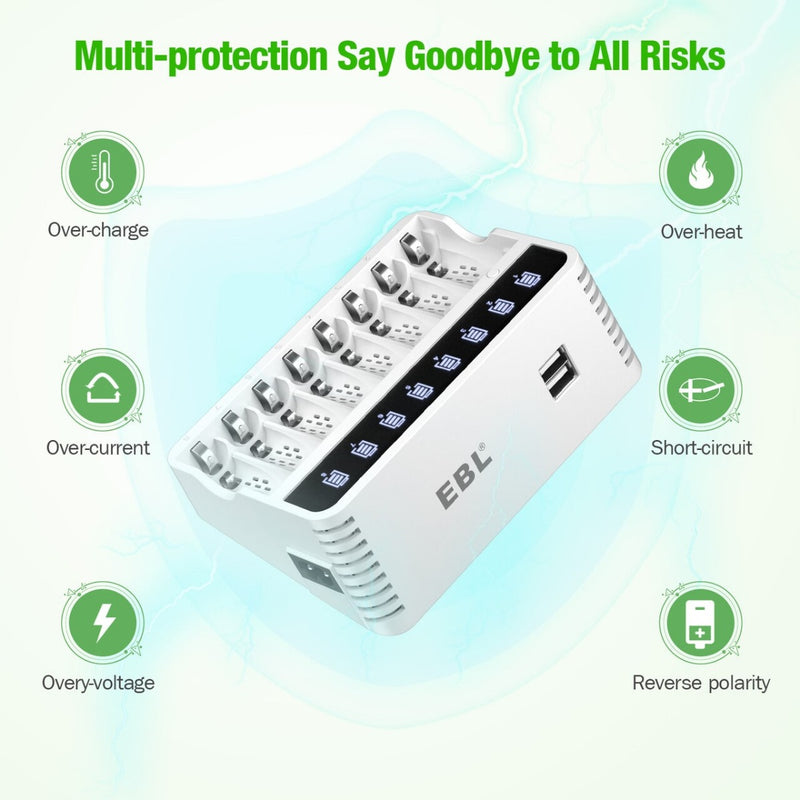

Safety Guarantee
Advanced MCU control and -∆V function, over-heat and over-current protection short-circuit protection, non-rechargeable, and defective battery detection.
-

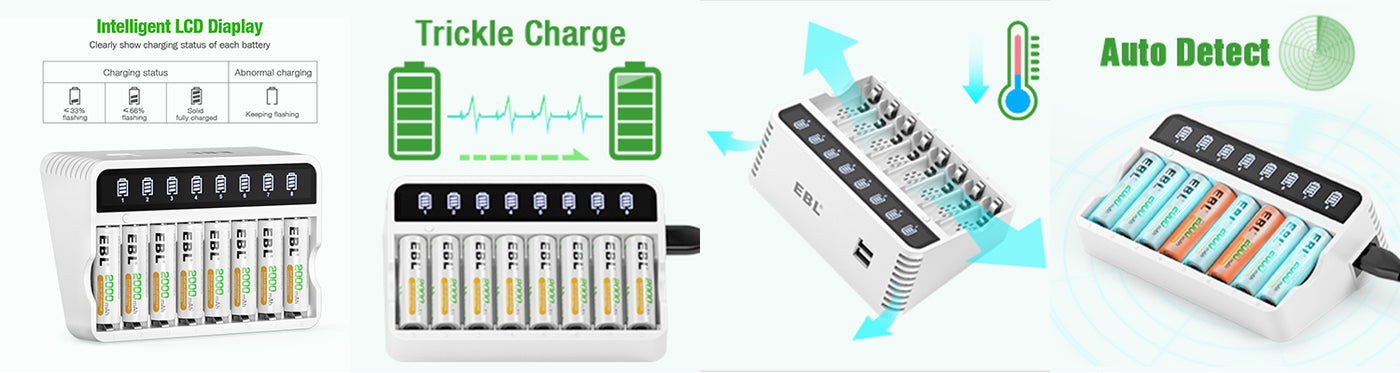

Trickle Charge Mode: The trickle mode of this smart charger can intelligently adjust the current so that the battery can be fully charged, which also can prevent overcharging.
-

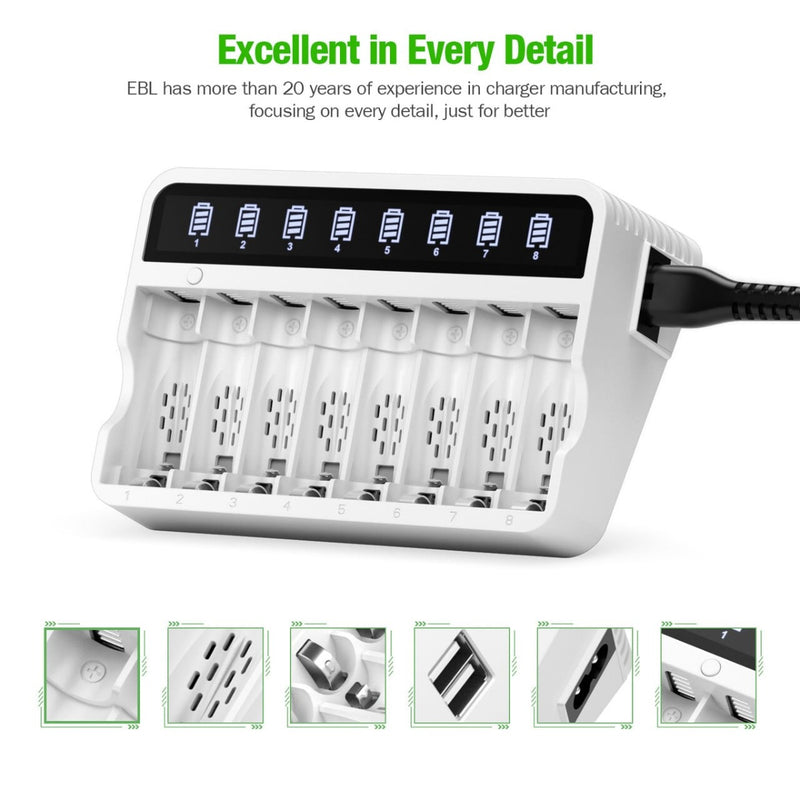

Unique Cooling Design: The FY-808 charger adopts a unique heat dissipation design, and heat dissipation holes are also added around the charger to more effectively dissipate heat and ensure your charging safety.
-
Intelligent Recognition: This smart charger can automatically detect non-rechargeable batteries and damaged batteries, and stop charging these batteries.

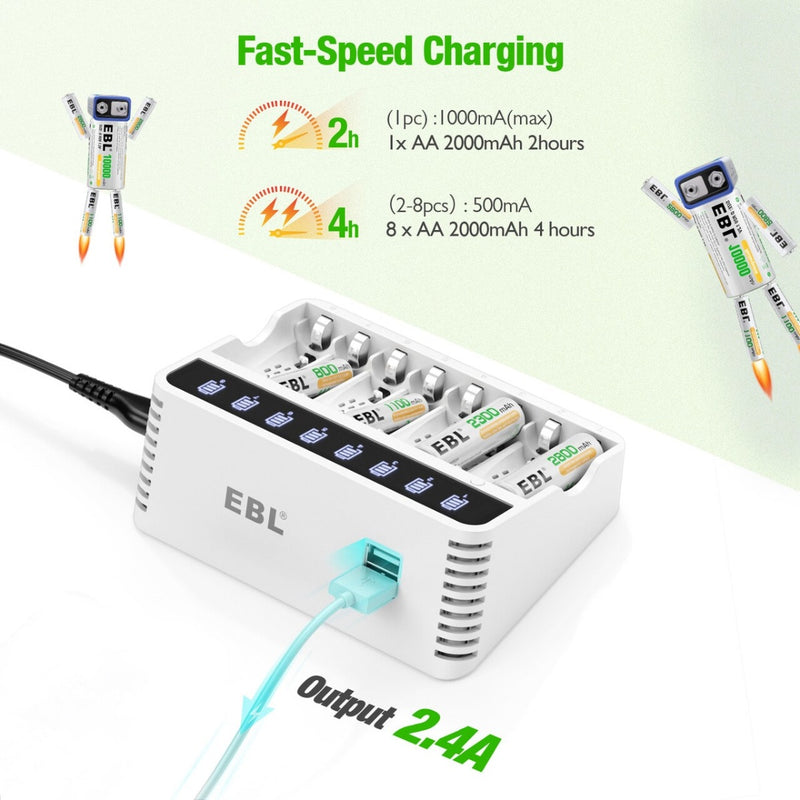

Charging Time Table: For Ni-NH Ni-CD battery
1pc AA 2000mAh-2800mAh: appr 2-3 hours( 1000mA output)
2 to 8 pcs AA 2000mAh-2800mAh: appr 4-7 hours( 500mA output)
1pc AAA 800mAh-1100mAh: appr 0.8-1.1 hours( 1000mA output)
2 to 8 pcs AA 800mAh-1100mAh: appr 1.6-2.2 hours( 500mA output)
What You Get
- 1 x FY-808 Charger
- 1 x USB Charging Port
- 1 x User Manual
Specifications
|
Model No.
|
FY-808 Charger
|
Brand
|
EBL
|
|
Compatible
|
1/2/3/4/.../8 pieces AA AAA Ni-MH Ni-CD batteries
|
|
Input
|
AC 100-240V, 50/60HZ 0.6A
|
|
Output Voltage
|
DC 1.4V
|
Output Current
|
500 mA
|
|
USB Output Voltage
|
5V
|
USB Output Current
|
2.4A(Max)
|
|
No-load Power Consumption
|
0.3 W(Max)
|
Battery Charging Rate
|
≥90%
|
|
Weight of charger
|
235±5g/8.47oz
|
Dimensions of charger
|
(140.54*106*54.86mm)±0.3mm
|
How many batteries can be charged at a time?
1 to 8 AA or AAA batteries at a time, single or in pairs are both OK, no need to charge batteries in pairs anymore.
👇Shop AA AAA rechargeable batteries
>>>EBL AA Ni-MH Rechargeable Batteries 2300mAh
>>>EBL AAA Ni-MH Rechargeable Batteries 1.2V 800mAh
🔎Want to buy the rechargeable batteries kit directly
>>>EBL FY-808 8-Bay Battery Charger with AA AAA Ni-MH Batteries
Why the rechargeable batteries life will be shorter and shorter？
The reason is that the battery has a memory effect due to incomplete partial charging and discharging of the battery. Will temporarily reduce the capacity of the battery, resulting in the shortened use time.
