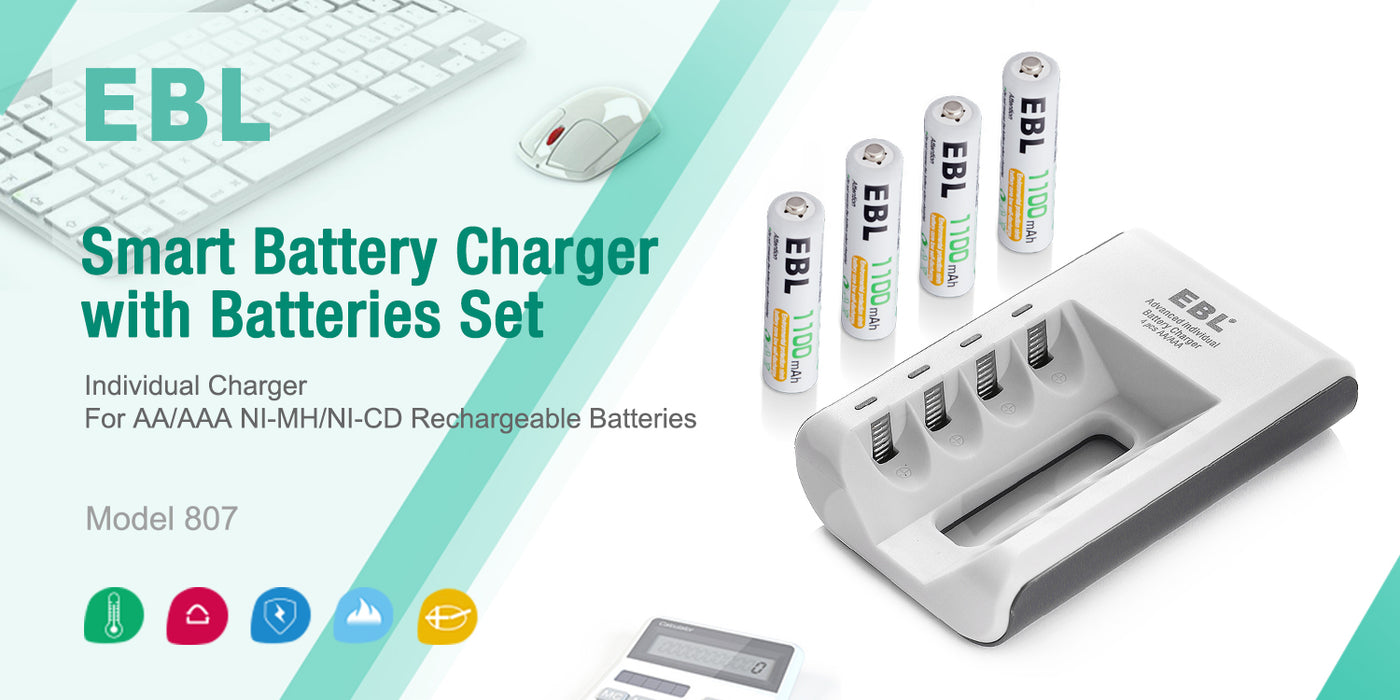

4 Bay Smart Battery Charger Smart C807 Battery Charger for 1/2/3/4 AA AAA AAAA Batteries

⚡EBL 807⚡

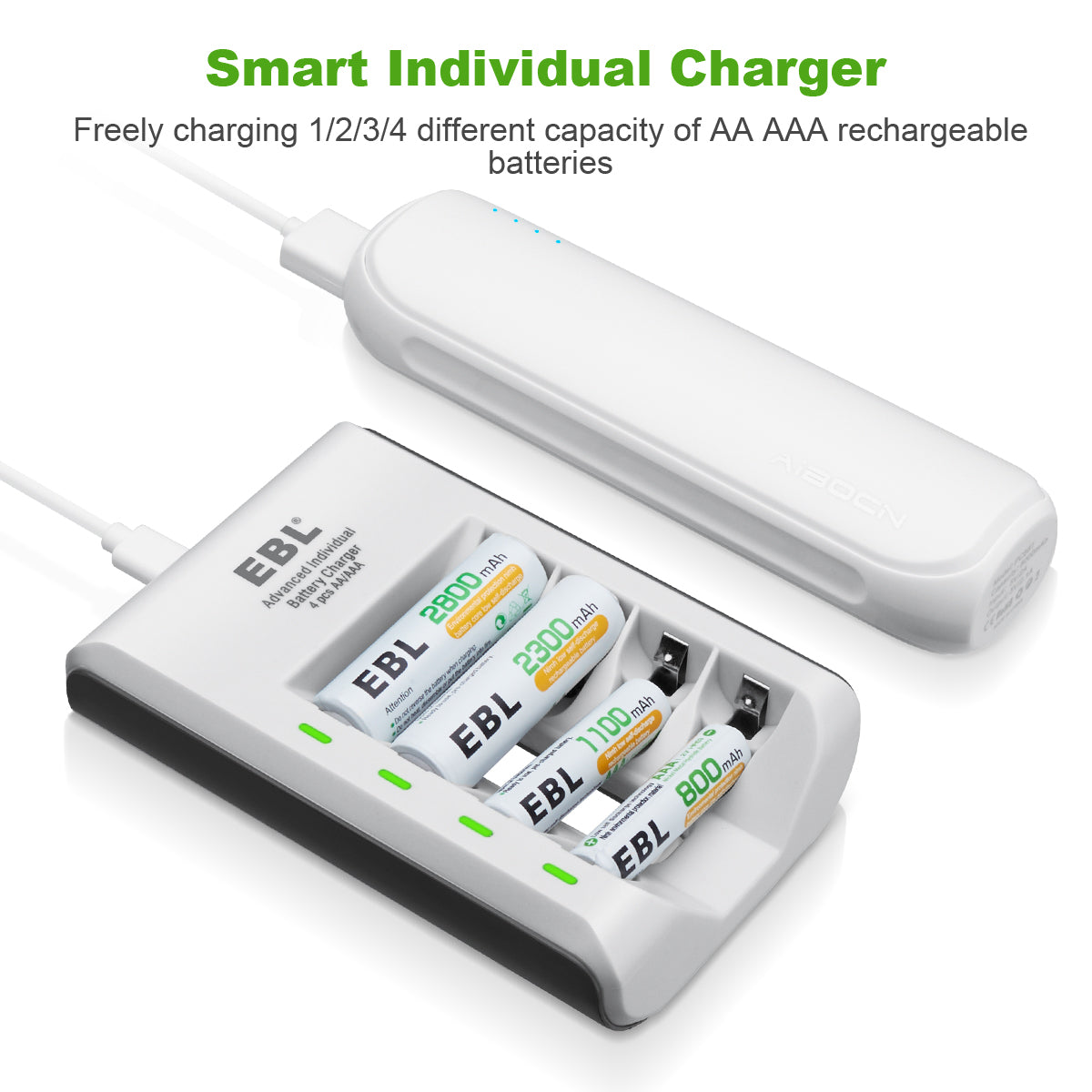

【How many batteries can be charged at a time】

1 to 4 AA or AAA batteries at a time, single or in pairs are both OK, no need to charge batteries in pairs anymore.

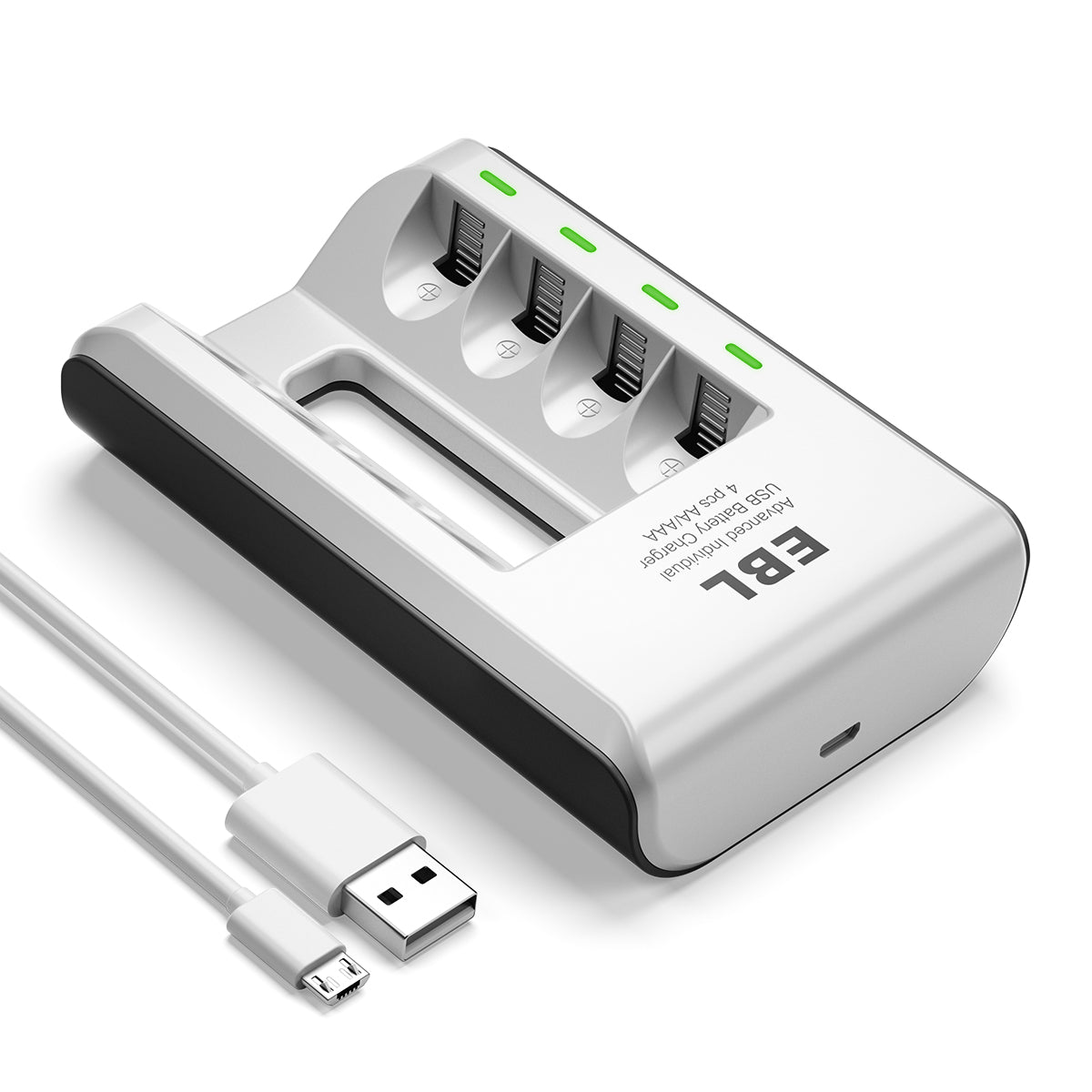

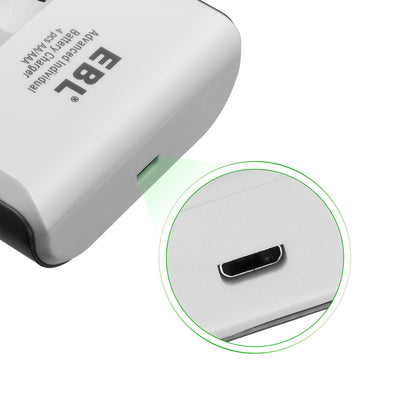

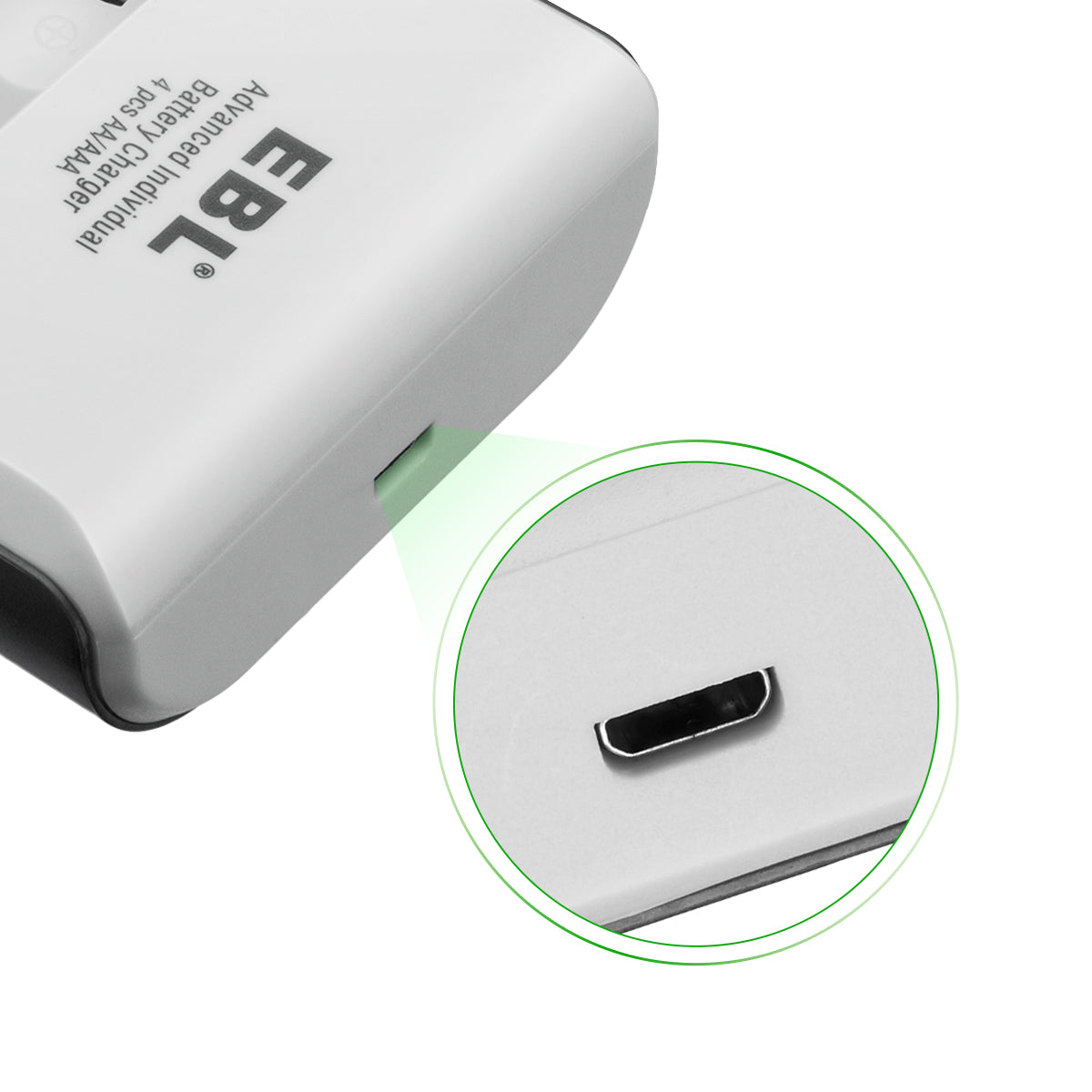

【Reasonable Circuit Layout - USB Charging Port - Worldwide Usage】

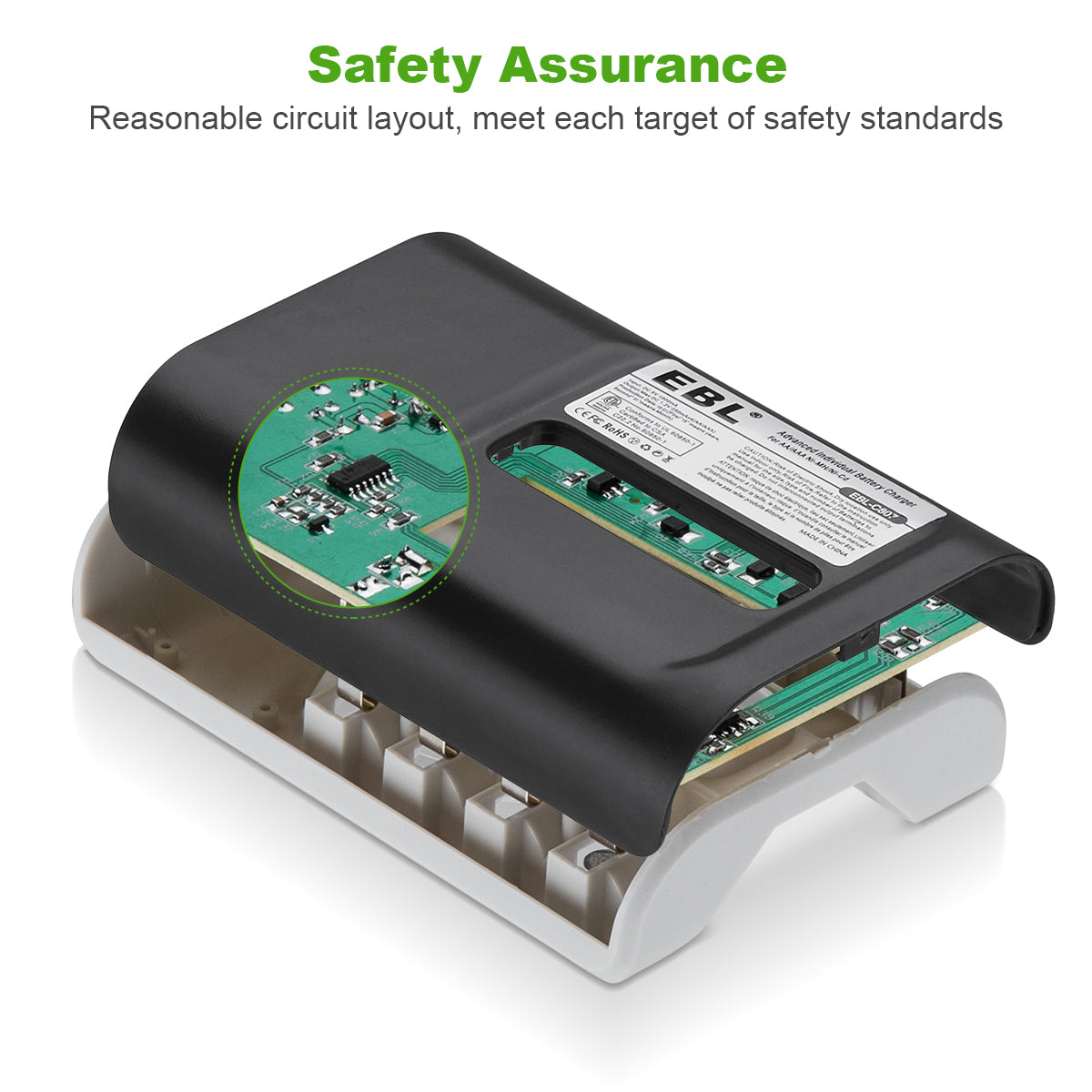

Advanced MCU Control With Reasonable Circuit Layout
Negative delta V (- ∆V) cut-off function, automatically cut off when fully charged

【Charging Time Table 】

1 to 4pcs AAA 500-1200mAh: 1.5 - 4 hours(180mA output)
1 to 4pcs AA 1300-2800mAh: 1.5 - 6 hours(200mA output)

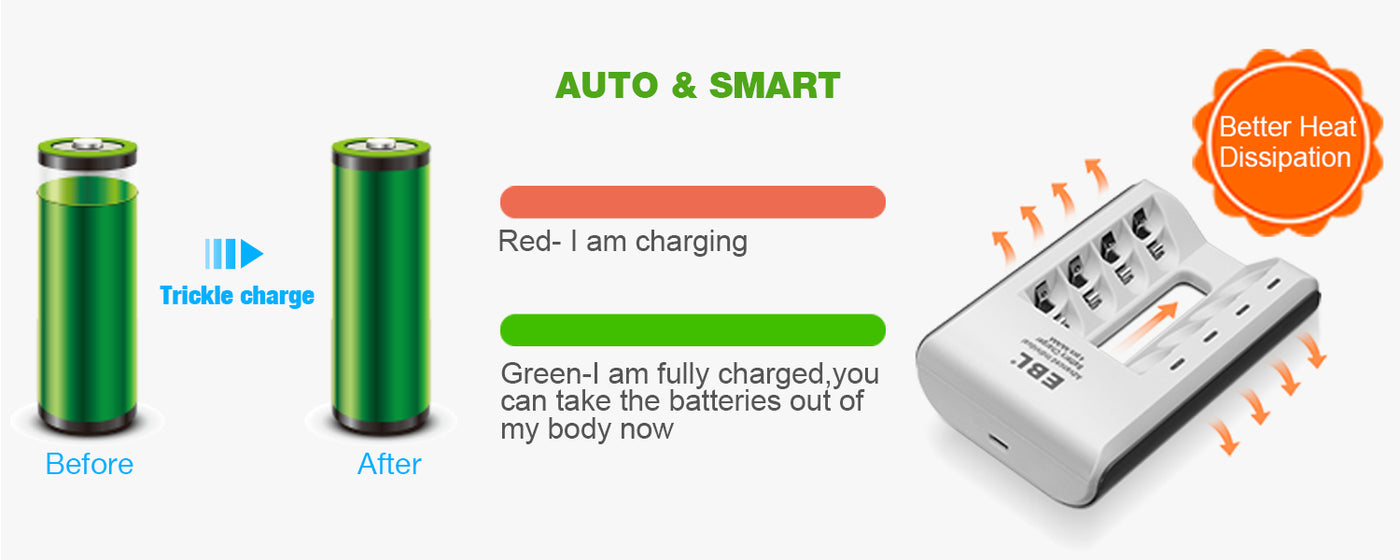

【Unique Trickle Charge 】

Adopting -∆V intellectual cut-off charging method, automatically turn to trickle charge, overheat-detection to prevent over-charging, short circuit protection and reverse polarity protection.

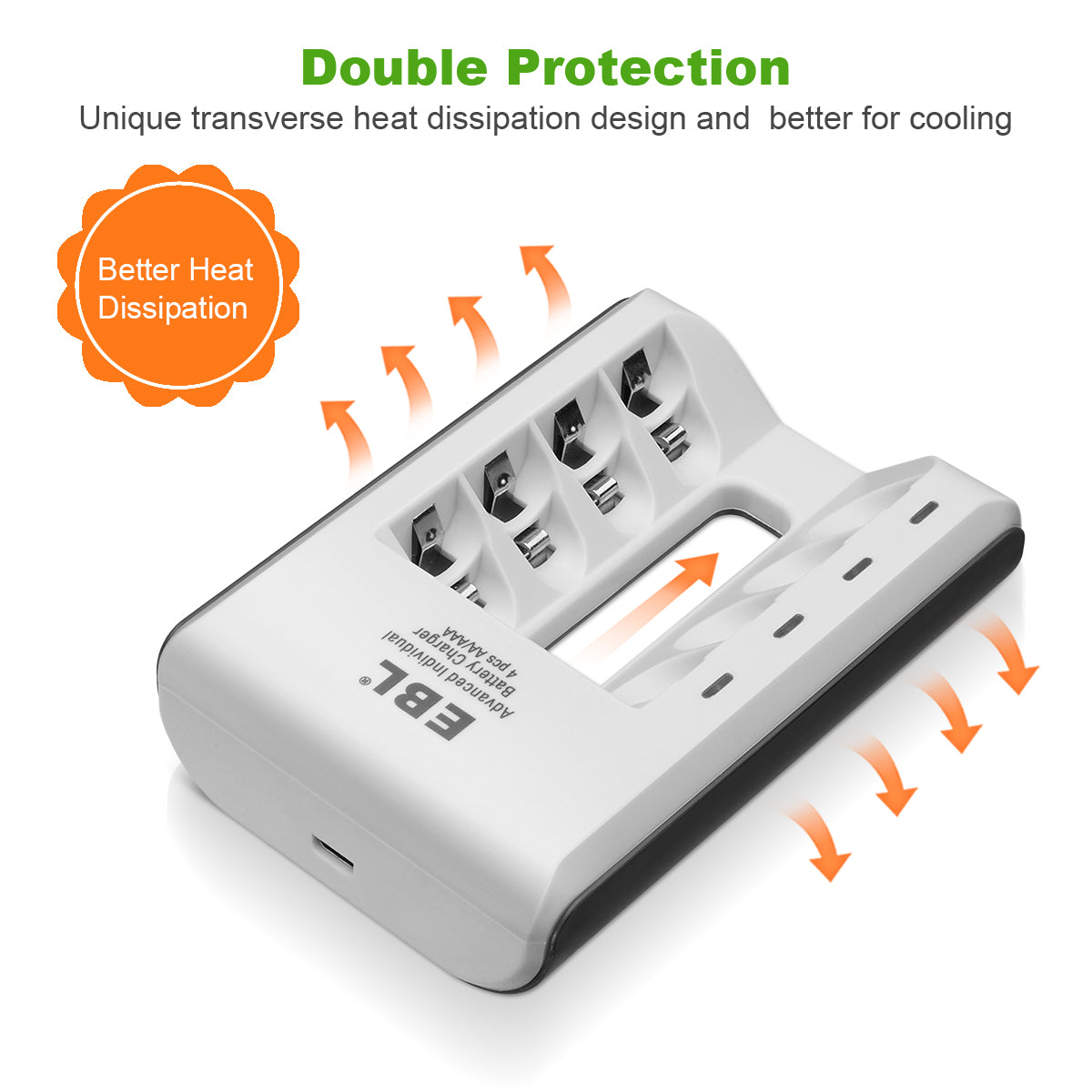

【Better Heat Dissipation 】

Heat dissipation design help the EBL 807 battery charger has a better function: overheat-detection to prevent over-charging.

【 What You Get 】

1× 807 battery charger
1× User Manual

【Specification 】

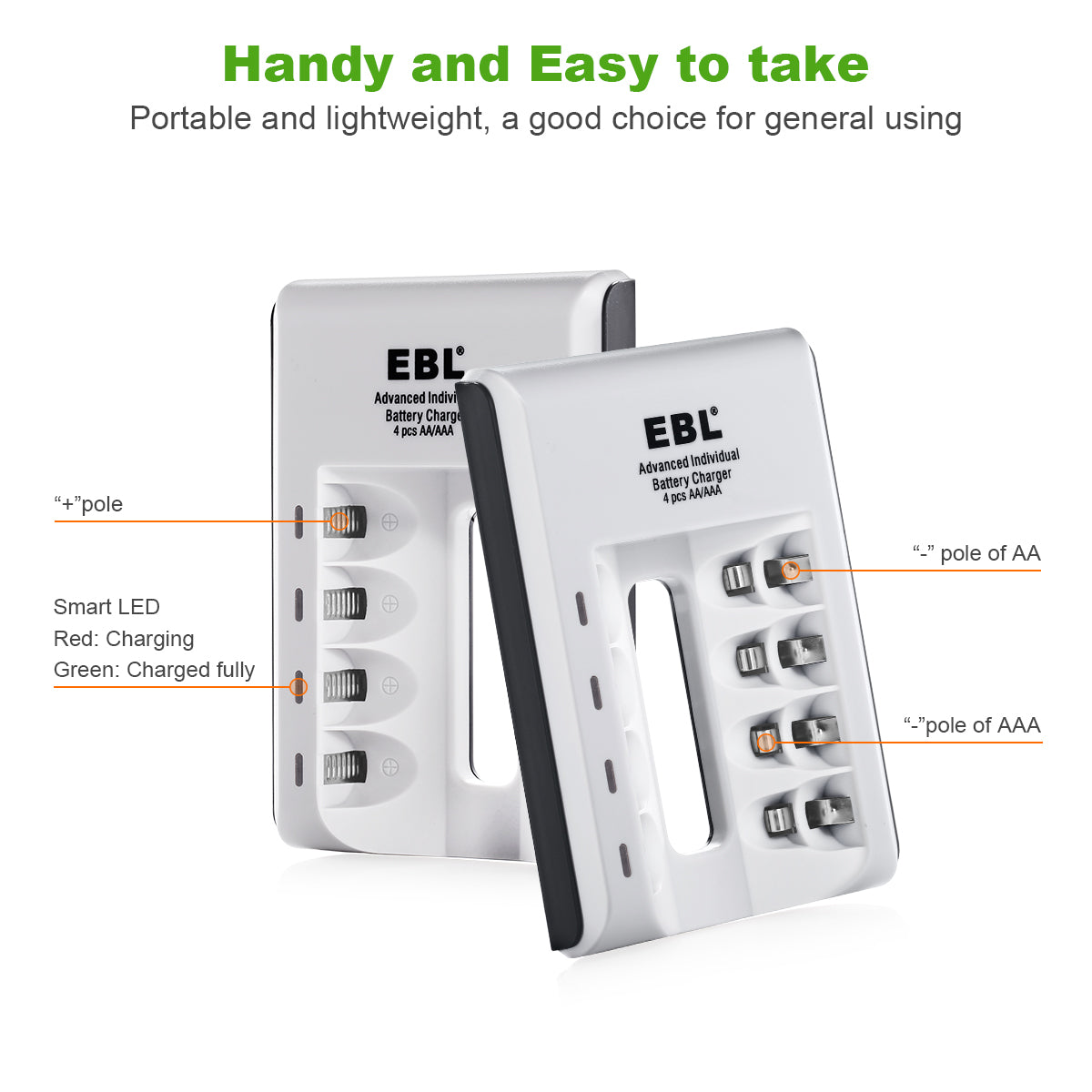

• LED state the charging statues : Red means charging, green means fully charged.
• Compatible with 1/2/3/4 AA AAA AAAA Ni-MH Ni-CD Rechargeable Batteries. (Do not charge alkaline or Lithium batteries)
• Operating Temperatue: 0-35℃, Humidity: 35%-95％
• Storage Temperatue: -10-50℃, Humidity: 35%-85％

【Attention】

1. Please ensure the battery installed is correct: make the +/- pole of the battery is a match for the +/- pole of the charger.
2. Using environment: 0℃ to 40℃, it is a normal phenomenon that the battery is warmer than room temperature when charging.
3. Do not disassemble or reassemble the charger by yourself for safety reasons.

【Can I use a charger for both AA and AAA batteries?  】

Yes. Each slot is completely independent, so you can put either AA or AAA in any slot.
