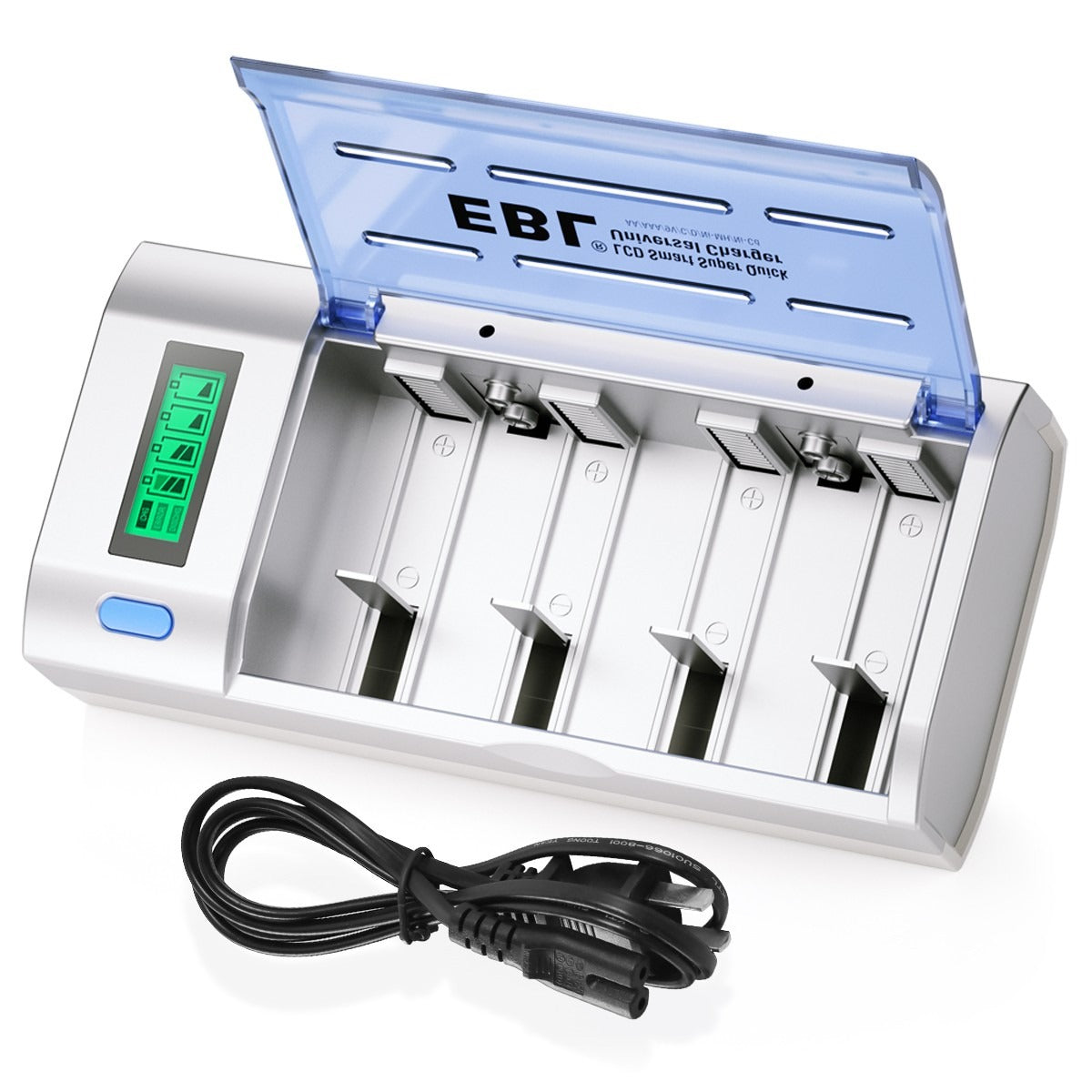

EBL 906 Smart Battery Charger for C/D/AA/AAA/9V Rechargeable Batteries
Tax excluded. Shipping calculated at checkout
Use code "welcome" at checkout and save 10%

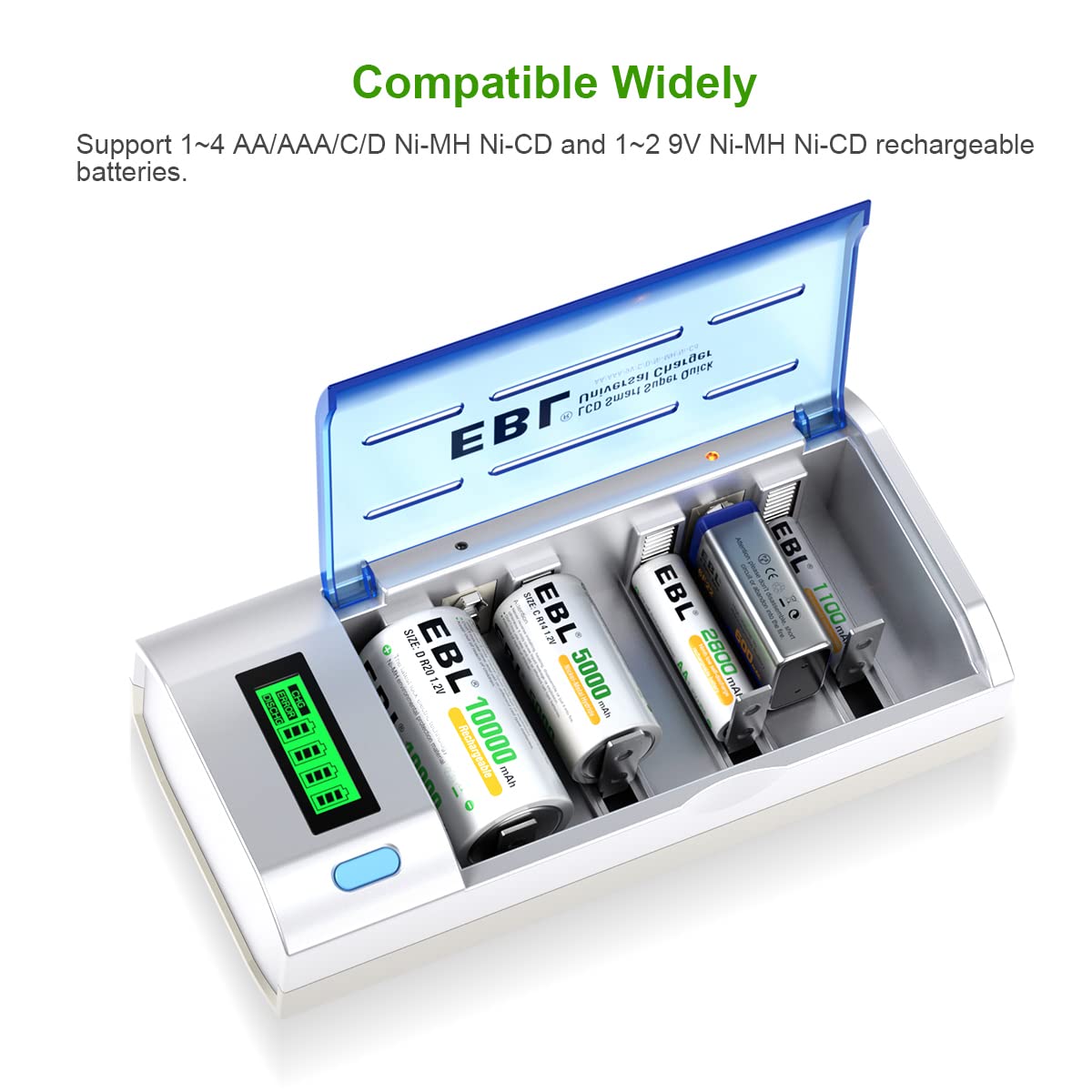

Compatibility: Independent charging slots can charge a variety of AA, AAA, C, D, and 9V Ni-MH/Ni-CD batteries.

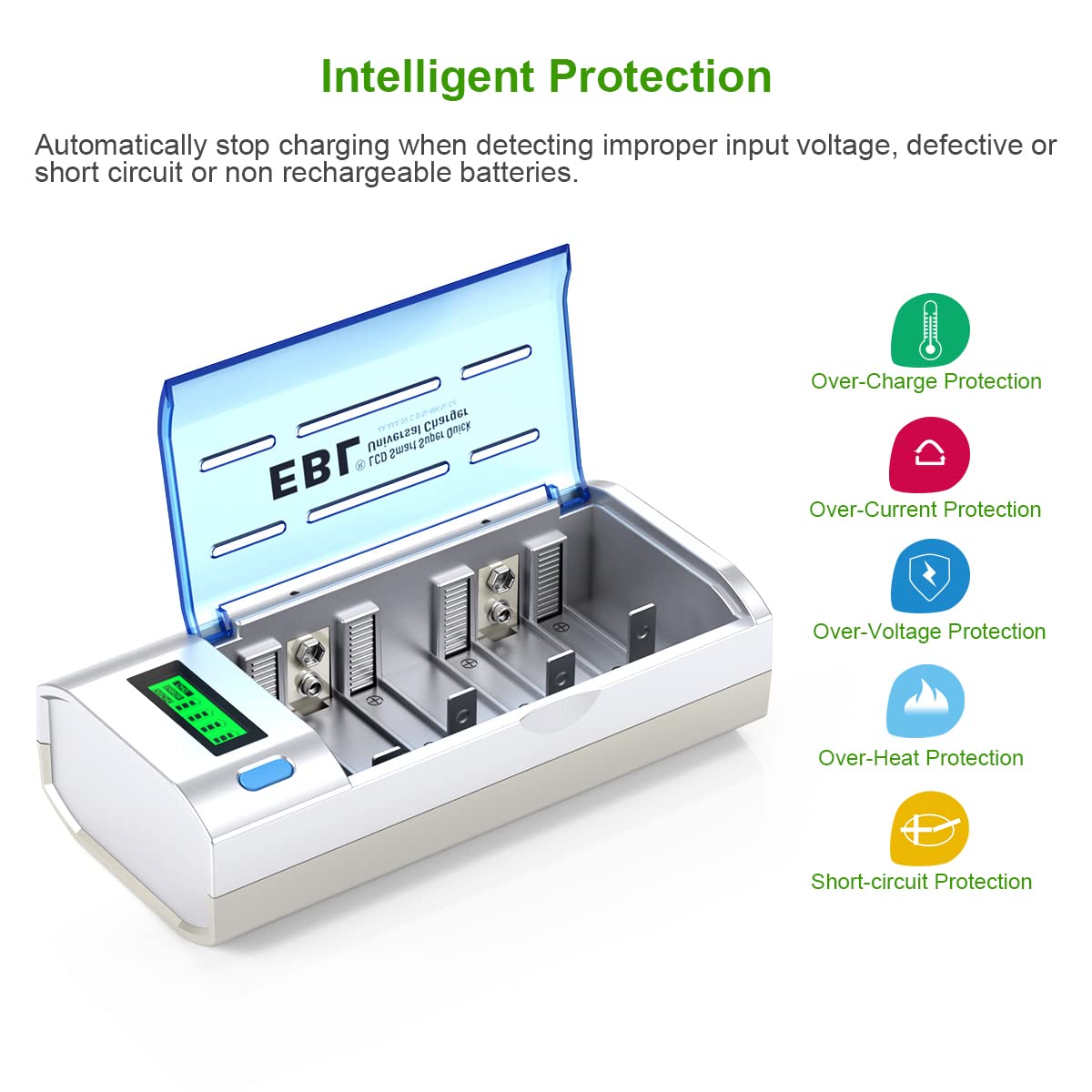

Safety Assurance: Automatically detects and stops charging to prevent battery damage.
Constant Current Charging: Provides stable current for safe battery charging.
Fast Charging: Charges AA/AAA/C/D batteries in under 3 hours and 9V batteries in under 10 hours.
Trickle Charge: Adopting the -∆V intelligent cut-off charging method, it prevents overcharging and short circuits.
0V Activation Function: AA/AAA battery slots: activate the AA/AAA batteries larger than 0.22V. 9V battery slot: 0V can be activated.
What You Get
- 1 x Smart Battery Charger
- 1 x User manual
- 1 x AC power cable
Specifications
EBL
C906W
Smart Battery Charger
AA/AAA/C/D/9V Ni-MH / Ni-CD Rechargeable Batteries
Constant voltage and current control
AC 100~240V 50/60Hz 0.5A MAX
- AA/AAA/C/D *1PCS: 1000mA
- AA/AAA/C/D *2/3/4Pcs total: 2000mA
- DC 9V: 45mA
0.5W MAX
12W MAX
DC 1.2V 600mA MAX(@120-200mA 4 cells discharged at full load)
- AA/AAA: 0-6V
- 9:0-16V
(7.68*3.66*2.05)in
15.66oz
Product comparison
AA•AAA•C•D•9V
AA•AAA•C•D•9V
AA•AAA•C•D: Ni-Mh Ni-Cd, 9V: Li-ion•Ni-Mh•Ni-Cd
Ni-Mh•Ni-Cd
14
6
Individual Charging
Individual Charging
AC Input
AC Input
LCD Screen & Indicator Light
Indicator Light
User Manual
Download User Guide (PDF)
Charging Time Table
- 1pcs Battery Type (Ni-MH) Capacity Charging Time (approx)
- AAA 500-1200mAh 0.5-1.2hours
- AA 1300-2800mAh 1.3-2.8 hours
- C 1800-5000mAh 1.8-5 hours
- D 1800-10000mAh 1.8-10 hours
- 9V 150-600mAh 2.5-10 hours
Want a combo pack of batteries and chargers?
Download User Guide (PDF)
- 1pcs Battery Type (Ni-MH) Capacity Charging Time (approx)
- AAA 500-1200mAh 0.5-1.2hours
- AA 1300-2800mAh 1.3-2.8 hours
- C 1800-5000mAh 1.8-5 hours
- D 1800-10000mAh 1.8-10 hours
- 9V 150-600mAh 2.5-10 hours
FAQ
How to change the mode of Charge & Discharge?
- “CHG” -- Charging;
- “DISCHG” -- Discharging;
- “ERROR” -- install the battery incorrectly or the battery is broken.

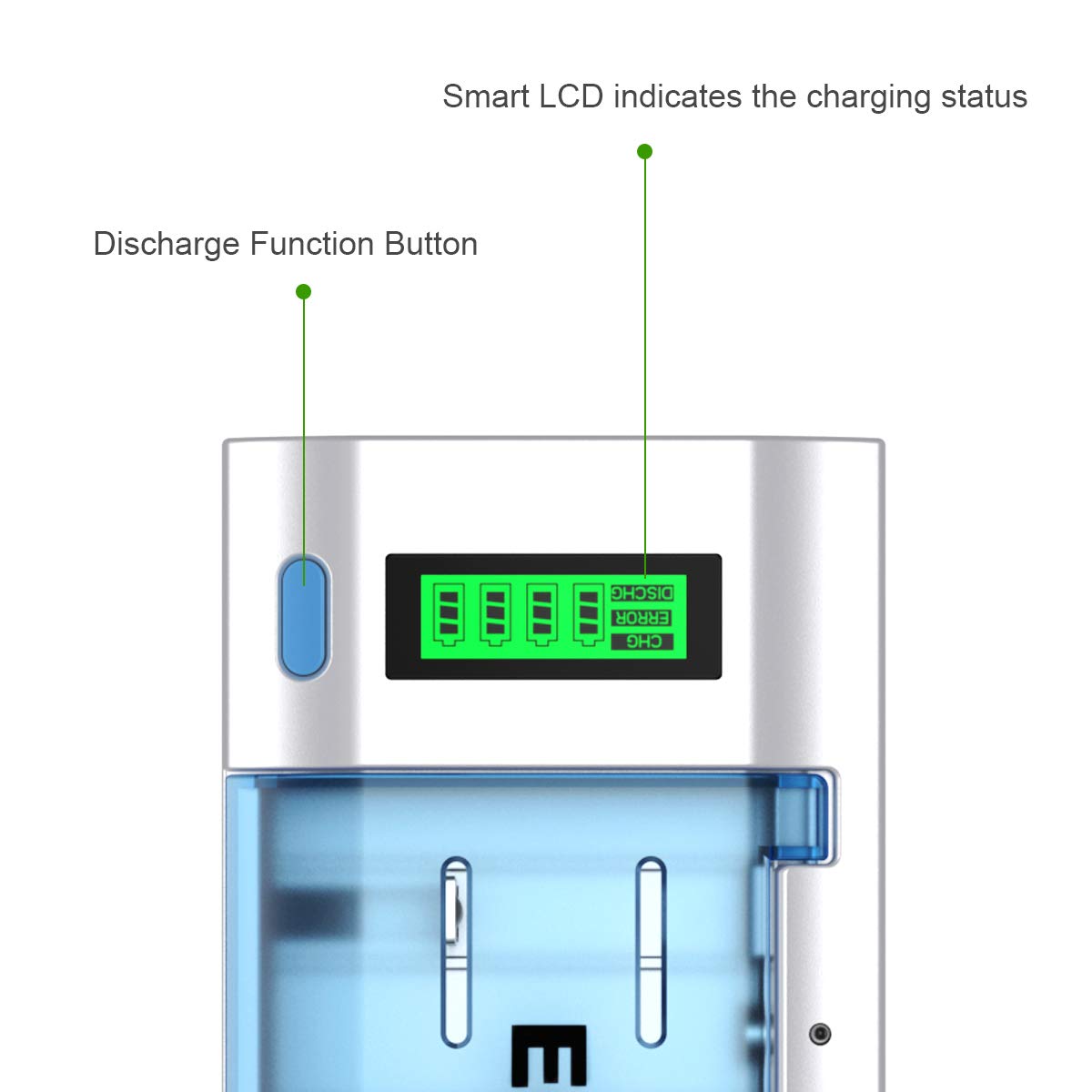

EBL 906 battery charger can both recharge and discharge the batteries by switching the blue button below the LCD screen.
Discharge and Charge:Press the blue button to discharge the battery. LCD displays "DISCHG". At the same time, 1-4pcs AA/AAA/C/D Ni-MH Ni-CD batteries automatically turn to discharging mode. The charger will resume charging mode after completion of discharge.
Note: 9V batteries cannot be discharged. LED will not turn off when fully charged for 9V battery, please remove the 9V battery timely when fully charged.
What should I pay attention to when using this charger?
- LED will not turn off when fully charged for 9V battery, please remove the 9V battery timely when fully charged.

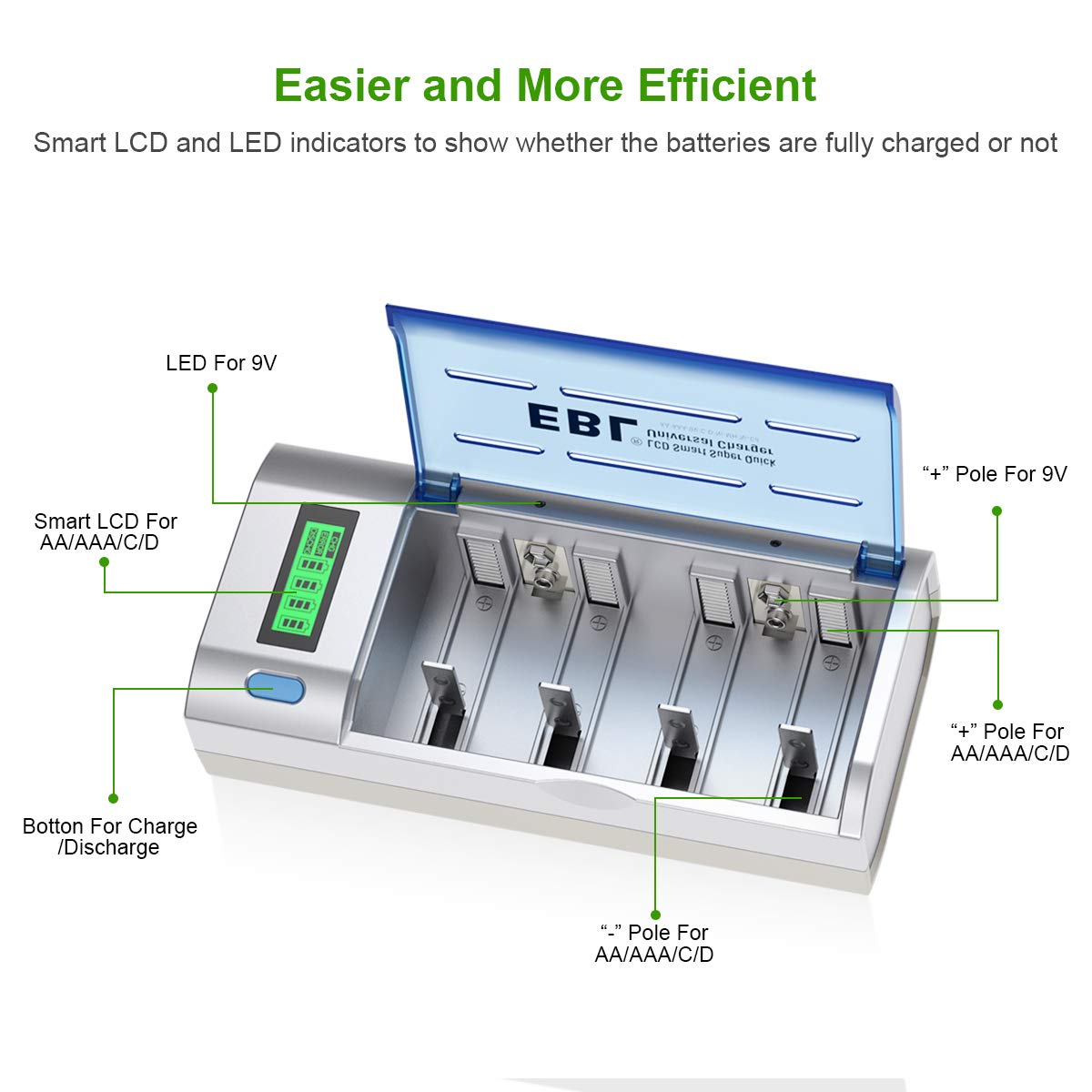

- Please ensure the battery installed is correct: make the +/- pole of the battery is a match for the +/- pole of the charger.
- Never mix charge different types and different capacities of batteries under the same LED indicator.
- Using environment: 0℃ to 40℃, it is a normal phenomenon that the battery is warmer than room temperature when charging.
- Do not disassemble or reassemble the charger by yourself for safety reasons.
