EBL Smart Battery Charger for C D AA AAA 9V Ni-MH Ni-CD Rechargeable Batteries with Discharge Function & LCD Display
⚡EBL 906⚡
【Compatible Models】
Independent charging slots can charge different compatible batteries freely.

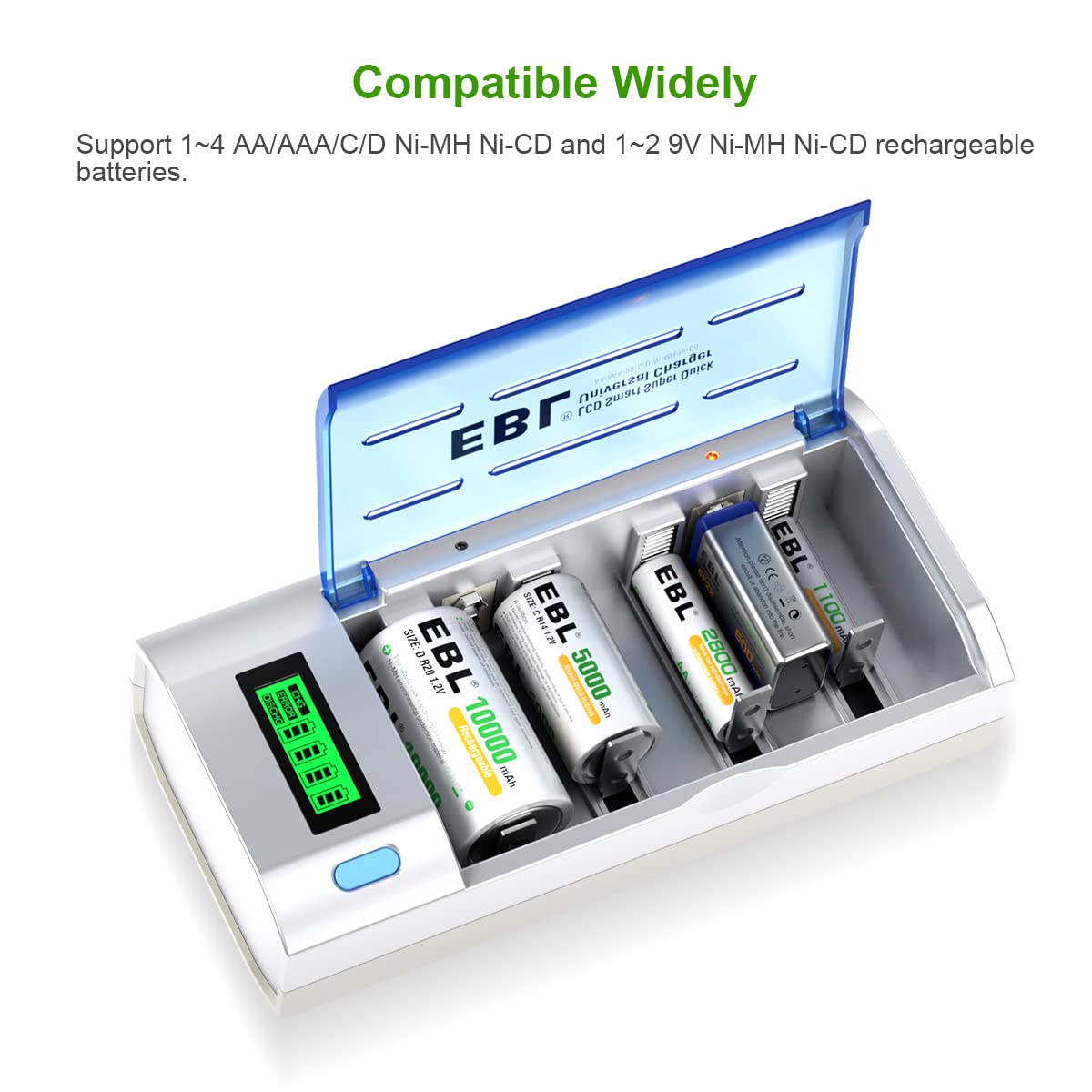

For Ni-MH Ni-CD rechargeable batteries: 1/2/3/4 pieces AA, AAA, C, D, and 1/2 pieces 9V batteries.
【Safe Assurance】

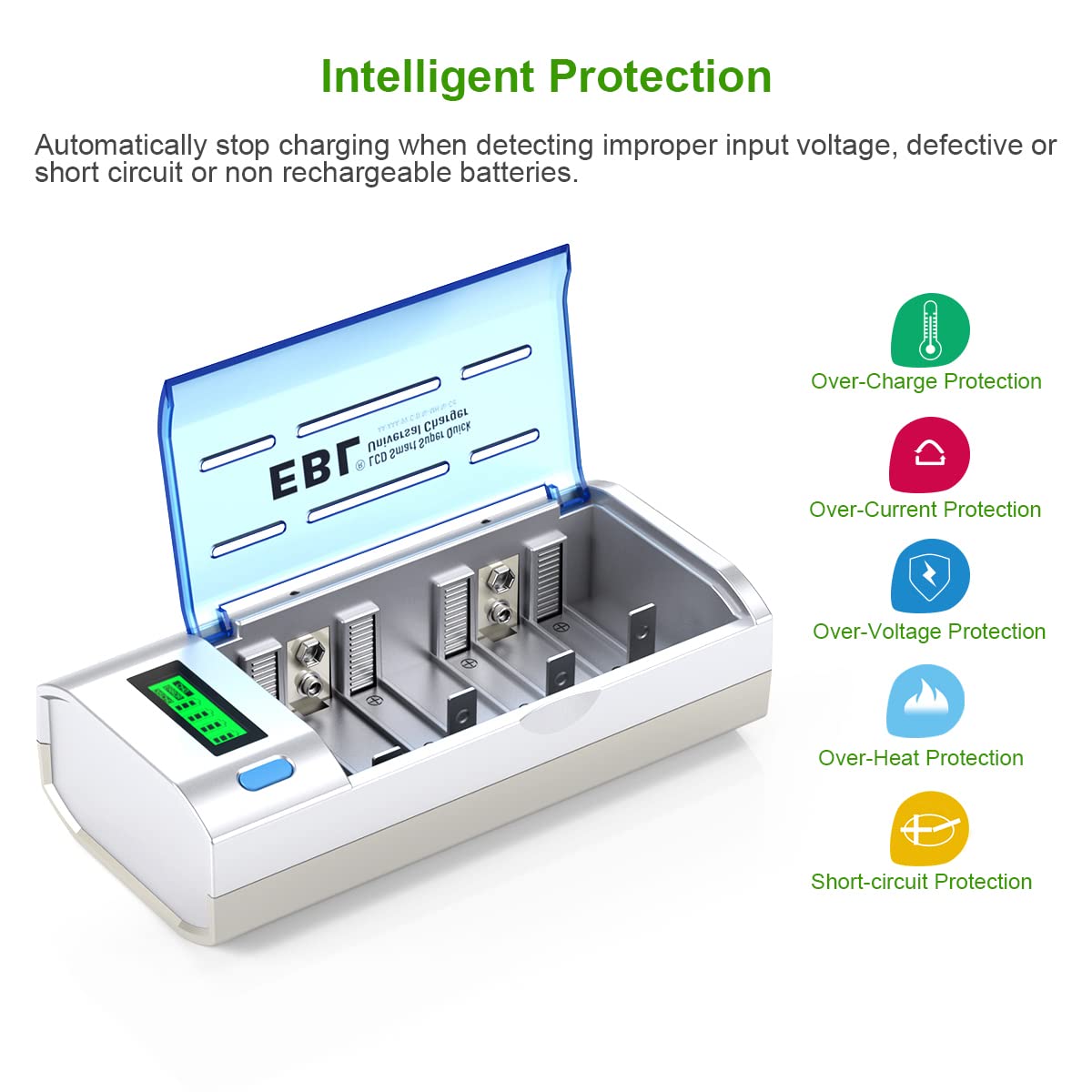

Automatically stop charging when detecting improper input voltage, defective or short circuit or non rechargeable batteries.
【Constant Current Charging Mode】
Protect the batteries against current fluctuation and keep using the charger safely. Note: Please ensure the battery installed is correct: make the +/- pole of the battery is match for the +/- pole of the device.
【Fast Charging】
Charging the battery 2-4Pcs AA/AAA/C/D with the total current 2A. Less than 3 hours to fully charged the AA/AAA/C/D batteries, and less than 10 hours to fully charged the 9V batteries.

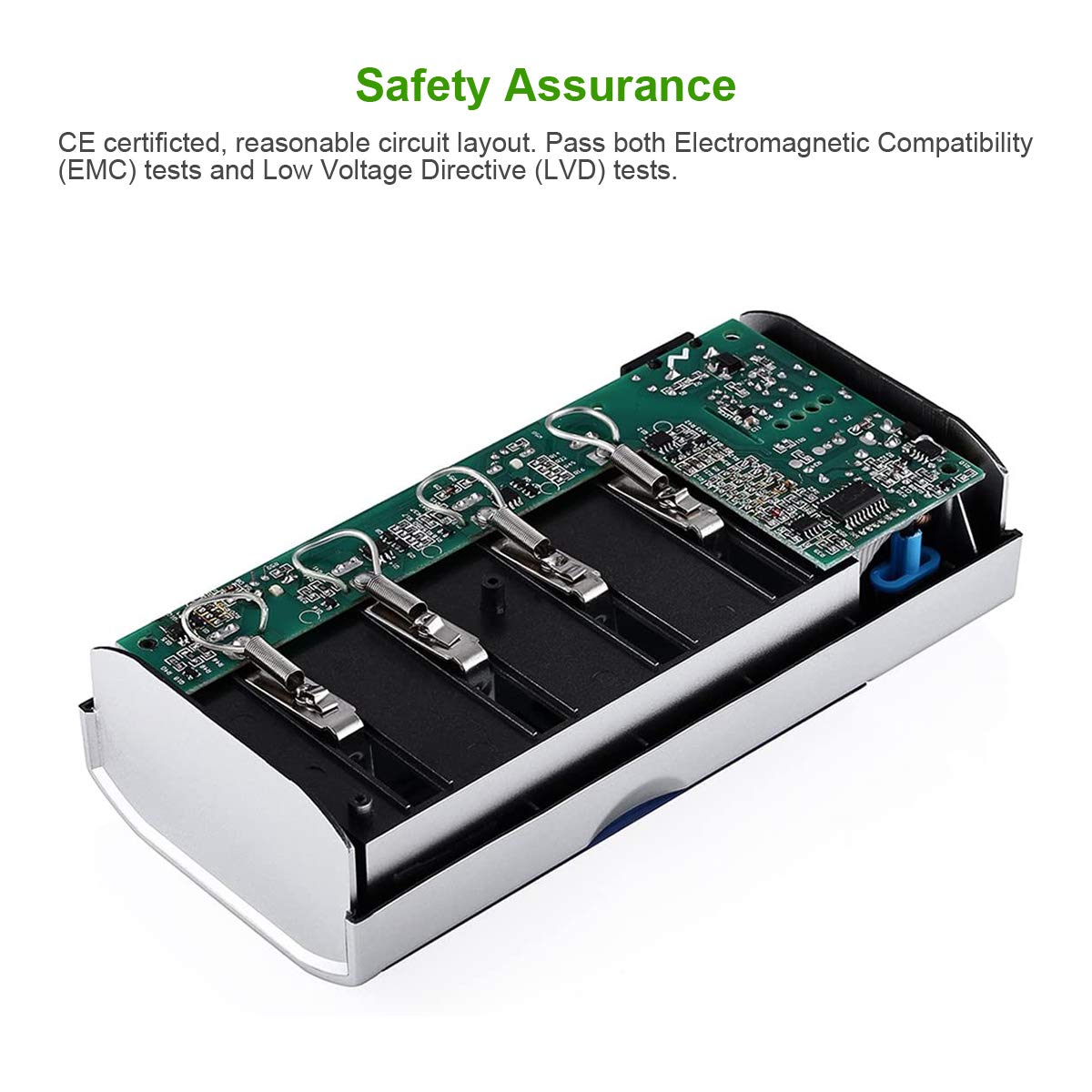

【Reasonable Circuit Layout - Worldwide Usage 】
Charging Time Table:
1pcs Battery Type (Ni-MH) Capacity Charging Time (approx)
AAA 500-1200mAh 0.5-1.2hours
AA 1300-2800mAh 1.3-2.8 hours
C 1800-5000mAh 1.8-5 hours
D 1800-10000mAh 1.8-10 hours
9V 150-600mAh 2.5-10 hours
【Unique Trickle Charge 】
Adopting -∆V intellectual cut-off charging method, automatically turn to trickle charge, overheat-detection to prevent over-charging, short circuit protection, and reverse polarity protection.
【 0V Activation Function 】
AA/AAA battery slots: activate the AA/AAA batteries larger than 0.22V.
9V battery slot: 0V can be activated.
【 What You Get 】
- 1 x Smart Battery Charger
- 1 x User manual
- 1 x AC power cable
【Specification 】
Model No. |
C906W |
Product Type |
Smart Battery Charger |
Compatible |
C/D/AA/AAA/9V Ni-MH / Ni-CD Rechargeable Batteries |
||
Brand |
EBL |
Charging way |
Constant voltage and current control |
Size |
195*93*52mm |
Weight |
444g/15.66oz |
Input |
AC 100~240V 50/60Hz 0.5A MAX |
|
|
Output |
DC/AA/AAA*1PCS: 1000mA (850mA-1150mA@1.2 V) |
||
AA/AAA*2/*3/*4PCS: 2000mA (1700mA-2300mA@1.2 V) |
|||
DC 9V: 45mA |
|||
No Load Power Consumption |
0.5W MAX |
Full Load Power Consumption |
12W MAX |
Discharge Current |
DC 1.2V 600mA MAX(@120-200mA 4 cells discharged at full load) |
Volt @No load |
AA/AAA: 0-6V |
9: 0-16V |
- LED will not turn off when fully charged for 9V battery, please remove the 9V battery timely when fully charged.
- Please ensure the battery installed is correct: make the +/- pole of the battery is match for the +/- pole of the charger.
- Using environment: 0℃ to 40℃, it is normal phenomenon that the battery is warmer than room temperature when charging.
- Do not disassemble or reassemble the charger by yourself for safety reason.
- Work Temperature: Surface temperature of charger ≤ 60℃. Surface temperature of battery ≤ 45℃.
Over-Current Protection
Negative delta V (- ∆V) cut-off function (except for 9V batteries), overcharge protection, short circuit protection and non-rechargeable or bad cell detection make it more easier for usage.
Over-Voltage Protection
Constant current charging would protect the batteries against current fluctuation and keep using the charger safelyControlled by MCU, automatically stop charging when detecting improper input voltage, defective or short circuit or non rechargeable batteries.
How to change the mode of Charge & Discharge

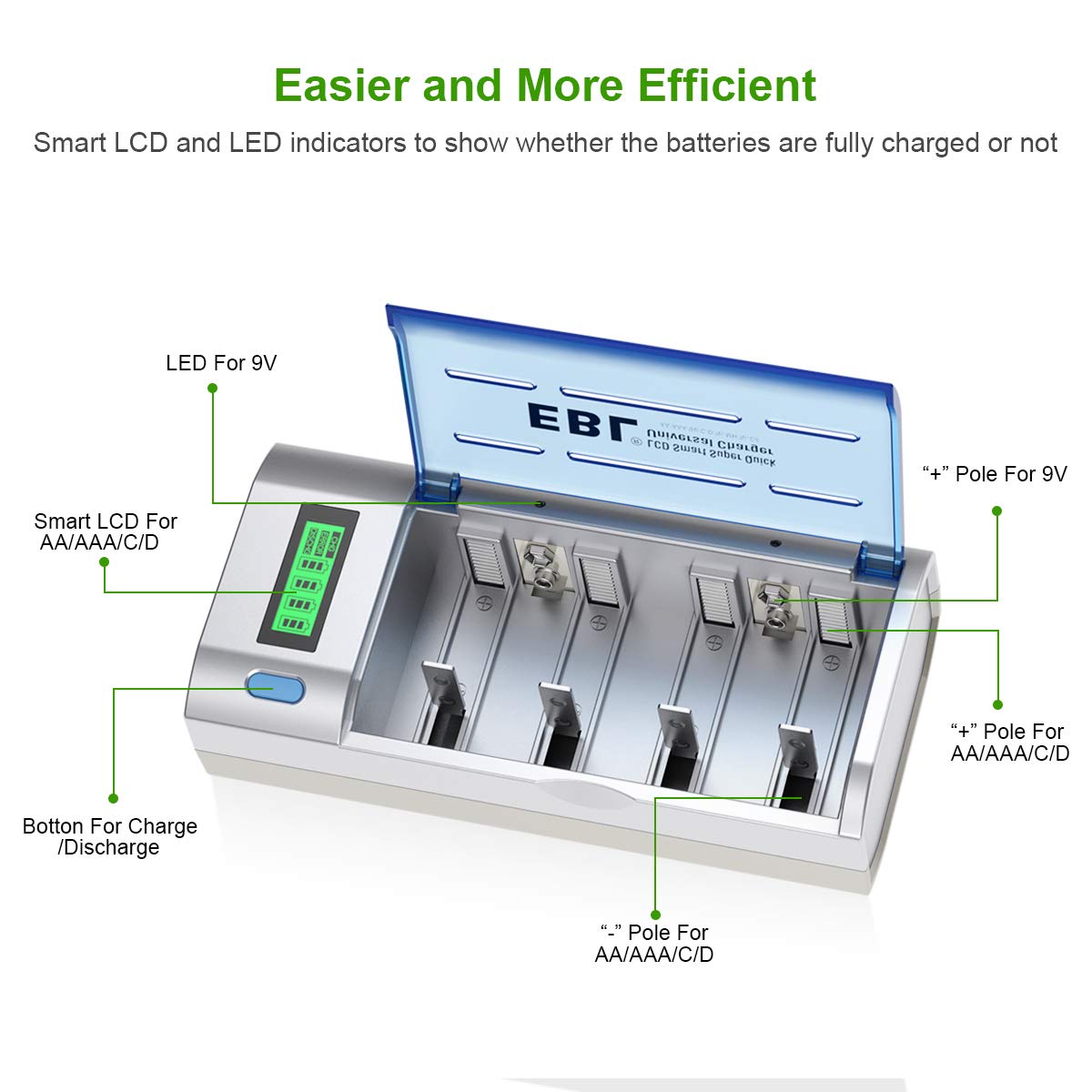

“CHG” -- Charging;
“DISCHG” -- Discharging;
“ERROR” -- install the battery incorrectly or the battery is broken.

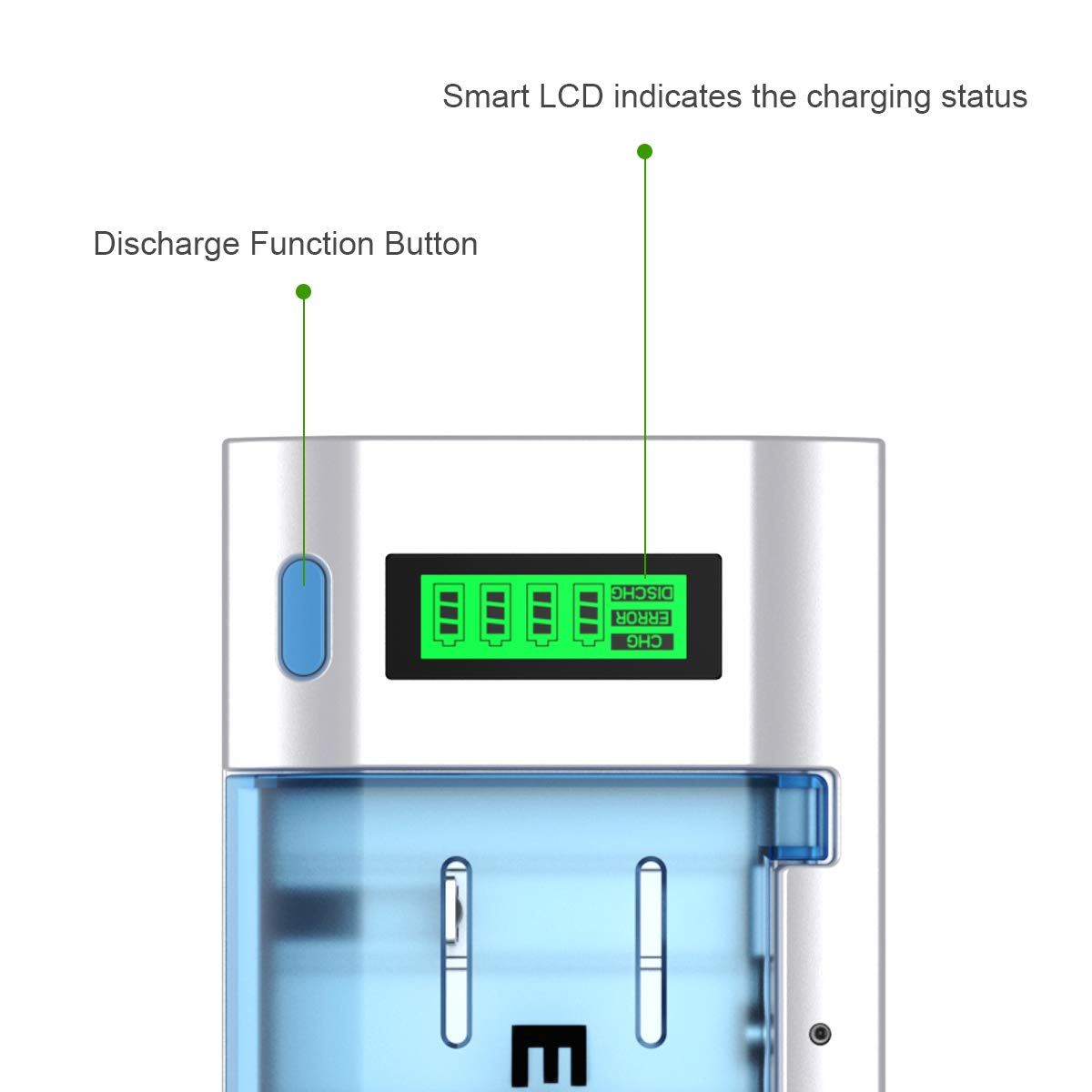

EBL 906 battery charger can both recharge and discharge the batteries by switching the blue button below the LCD screen.
Discharge and Charge:Press the blue button to discharge the battery. LCD displays "DISCHG". At the same time, 1-4pcs AA/AAA/C/D Ni-MH Ni-CD batteries automatically turn to discharging mode. The charger will resume charging mode after completion of discharge. Note:9V batteries cannot be discharged.
Attention:
1. Please ensure the battery installed is correct: make the +/- pole of the battery is a match for the +/- pole of the charger.
2. Never mix charge different types and different capacities of batteries under the same LED indicator.
3. Using environment: 0℃ to 40℃, it is a normal phenomenon that the battery is warmer than room temperature when charging.
4. Do not disassemble or reassemble the charger by yourself for safety reasons.
