EBL 906 Smart Battery Charger with Rechargeable AA AAA C D 9V Batteries Kit

SKU: LN-2605UR*1+LN-8112*1+LN-8122*1+LN-8141*1+LN-8151*1+LN-8161*2
Sale price$60.99 Regular price$83.93
On sale

Tax excluded. Shipping calculated at checkout


Style: 906 Battery Charger + AA AAA C D Ni-Mh Batteries and 9V Li-ion Batteries

Style

In stock

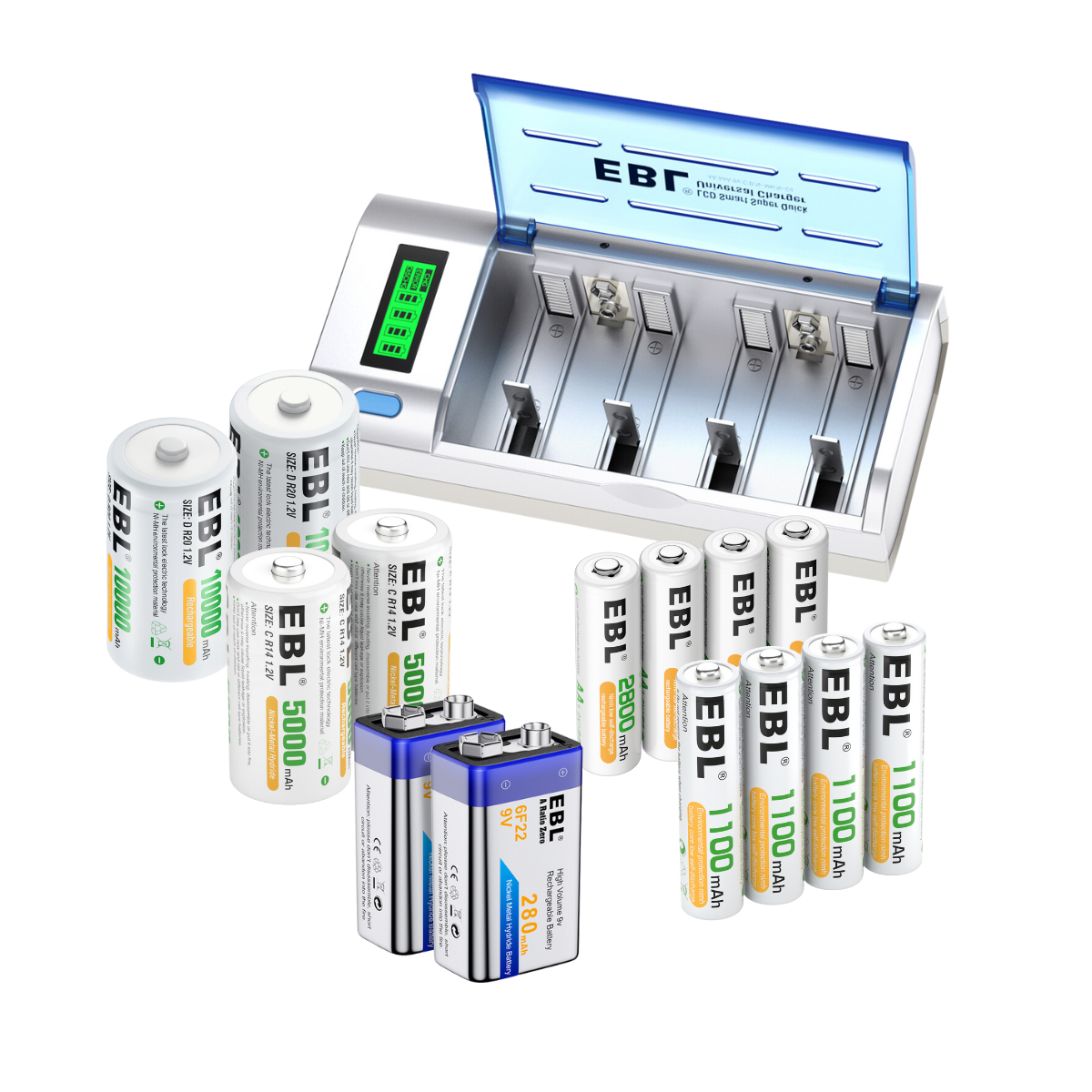

EBL 906 Smart Battery Charger with Discharge Function & LCD Display - with 2 x D Size Batteries 10000mAh and 2 x C Cell Batteries 5000mAh, 2 x 9V Rechargeable Batteries, 4 x Rechargeable AA Batteries 2800mAh, 4 x AAA Batteries 1100mAh

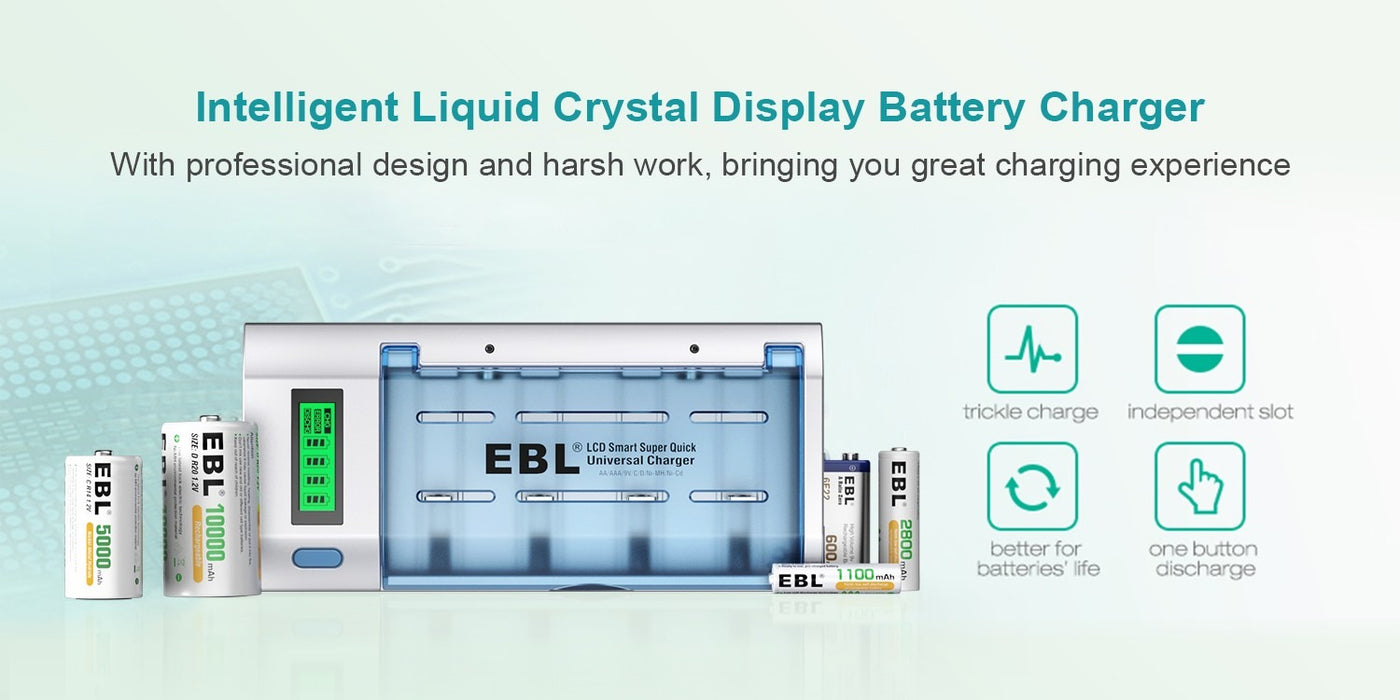

♻EBL 906 Battery Charger with Discharge Function & LCD Display

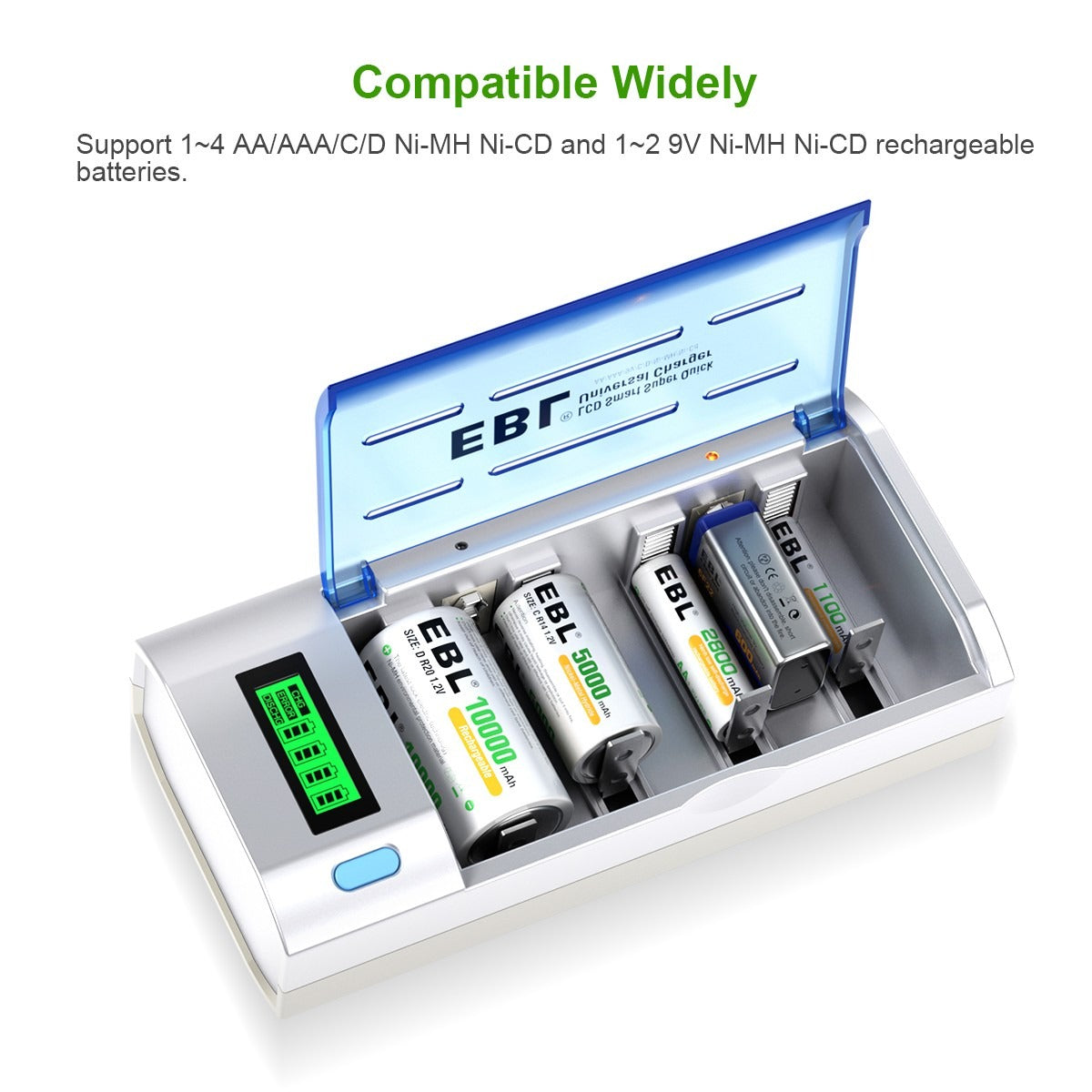

【Compatible Models】

Independent charging slots can charge different compatible batteries freely.
For Ni-MH Ni-CD rechargeable batteries: 1/2/3/4 pieces AA, AAA, C, D, and 1/2 pieces 9V batteries.

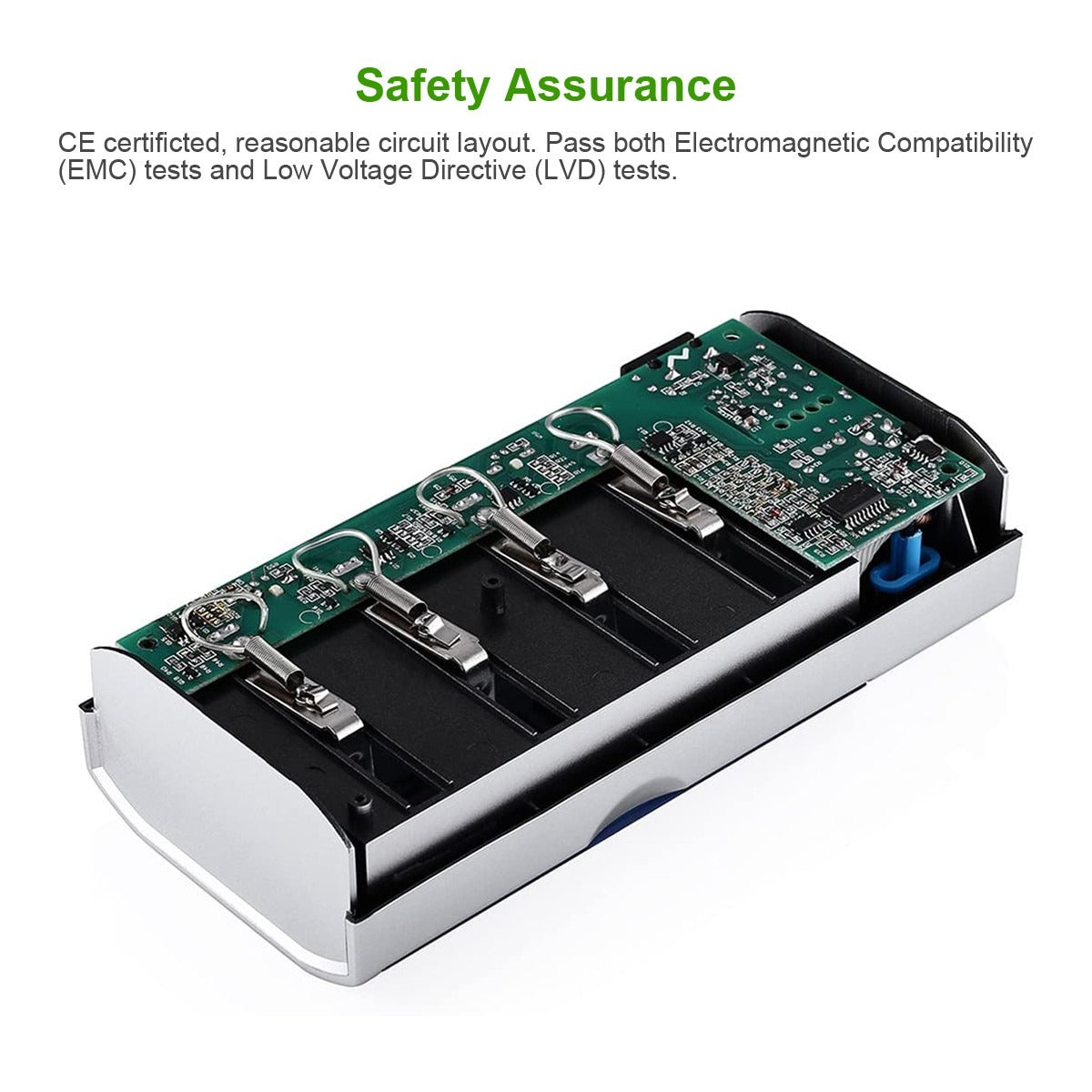

【Safe Assurance】

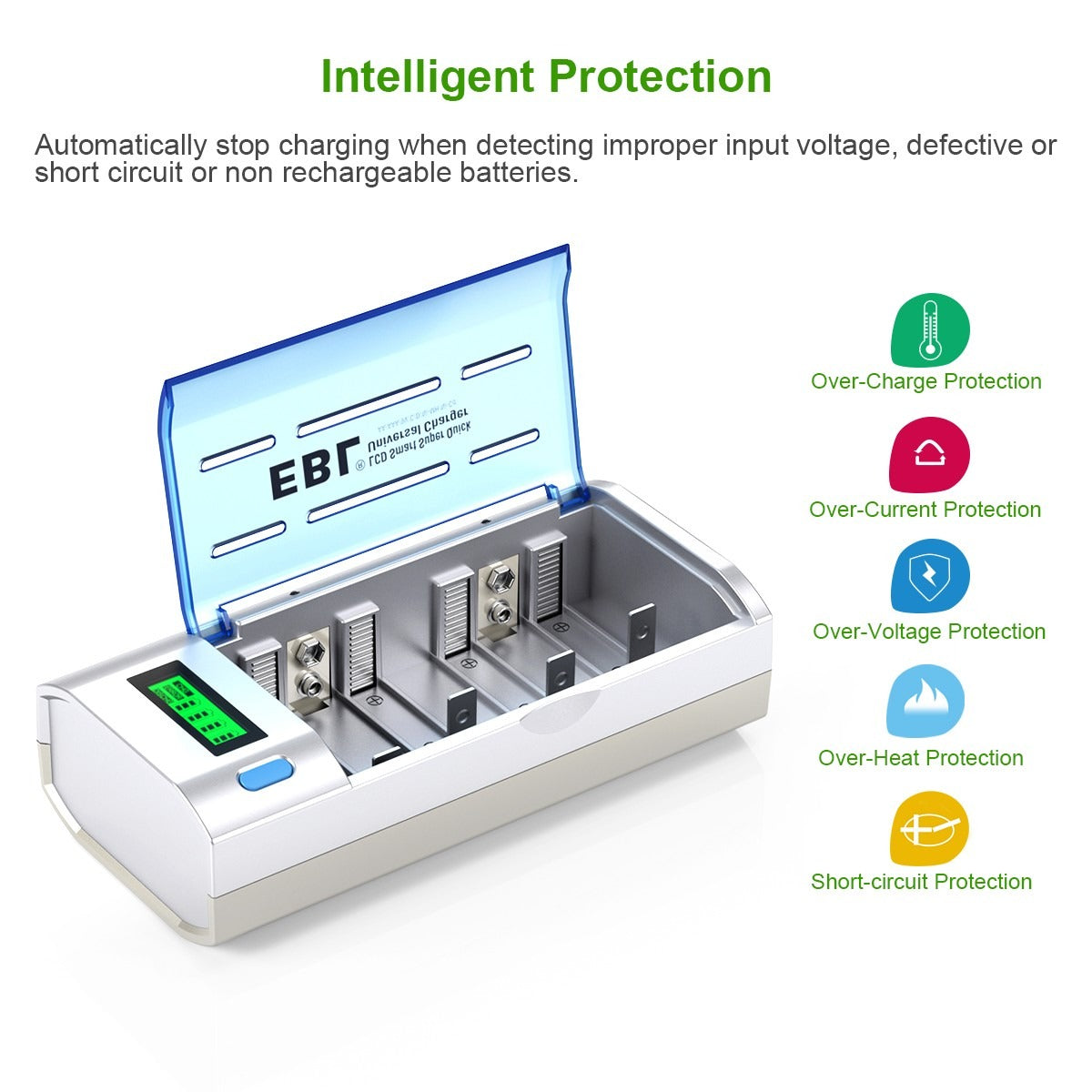

Automatically stop charging when detecting improper input voltage, defective or short circuit or non rechargeable batteries.

【Constant Current Charging Mode】

Protect the batteries against current fluctuation and keep using the charger safely. Note: Please ensure the battery installed is correct: make the +/- pole of the battery is match for the +/- pole of the device.

【Fast Charging】

Charging the battery 2-4Pcs AA/AAA/C/D with the total current 2A. Less than 3 hours to fully charged the AA/AAA/C/D batteries, and less than 10 hours to fully charged the 9V batteries.

【Reasonable Circuit Layout - Worldwide Usage】

Charging Time Table:

1pcs Battery Type (Ni-MH) Capacity Charging Time (approx)

AAA 500-1200mAh 0.5-1.2hours

AA 1300-2800mAh 1.3-2.8 hours

C 1800-5000mAh 1.8-5 hours

D 1800-10000mAh 1.8-10 hours

9V 150-600mAh 2.5-10 hours

【Unique Trickle Charge】

Adopting -∆V intellectual cut-off charging method, automatically turn to trickle charge, overheat-detection to prevent over-charging, short circuit protection, and reverse polarity protection.

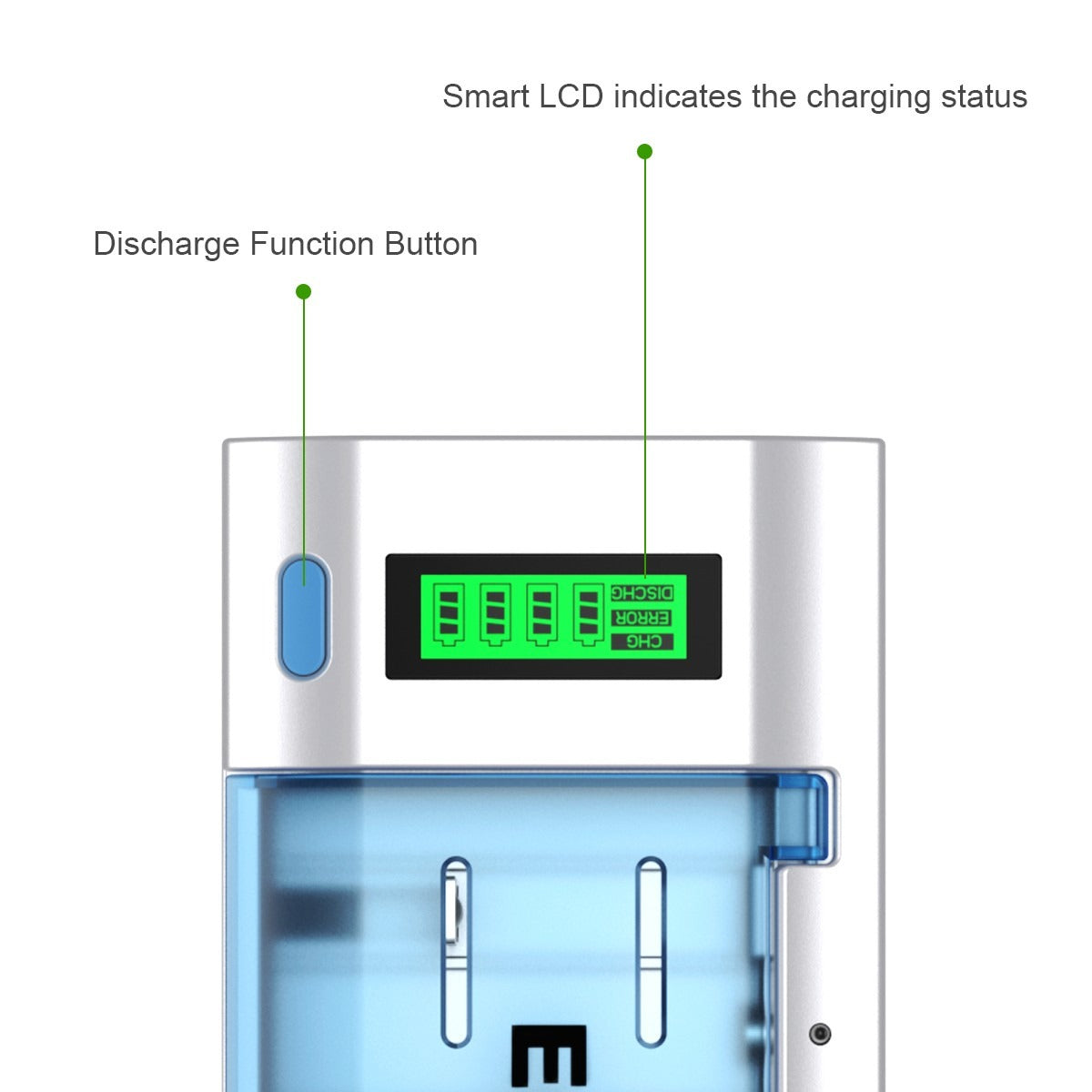

【How to change the mode of Charge & Discharge】

“CHG” -- Charging;
“DISCHG” -- Discharging;
“ERROR” -- install the battery incorrectly or the battery is broken.

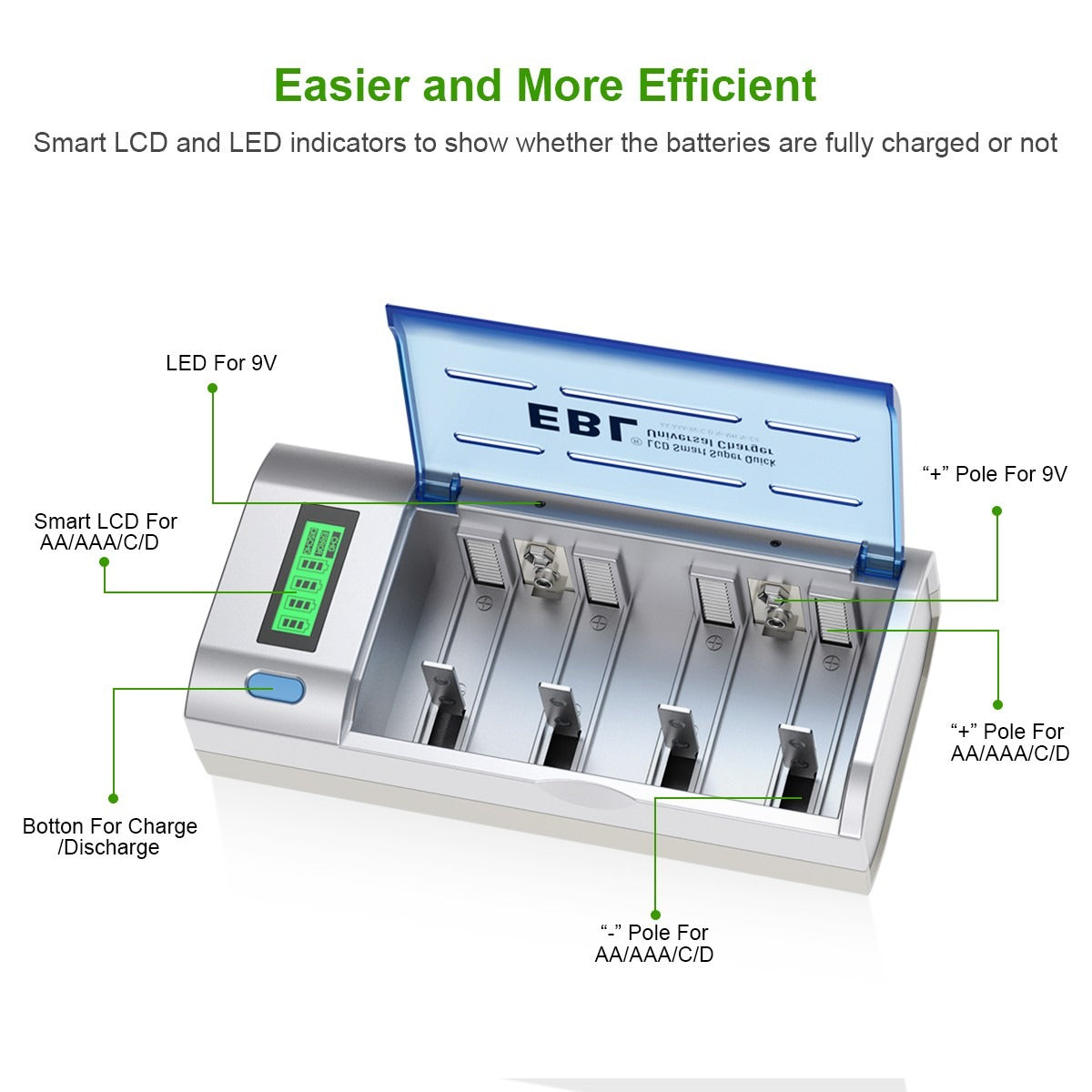

EBL 906 battery charger can both recharge and discharge the batteries by switching the blue button below the LCD screen.
Discharge and Charge: Press the blue button to discharge the battery. LCD displays "DISCHG". At the same time, 1-4pcs AA/AAA/C/D Ni-MH Ni-CD batteries automatically turn to discharging mode. The charger will resume charging mode after completion of discharge. Note: 9V batteries cannot be discharged.

【 0V Activation Function】

AA/AAA battery slots: activate the AA/AAA batteries larger than 0.22V.
9V battery slot: 0V can be activated.

【Specification】

Model No.

C906W

Product Type

Smart Battery Charger

Compatible

C/D/AA/AAA/9V Ni-MH / Ni-CD Rechargeable Batteries

Brand

EBL

Charging way

Constant voltage and current control

Size

195*93*52mm

Weight

444g/15.66oz

Input

AC 100~240V 50/60Hz 0.5A MAX



Output

DC/AA/AAA*1PCS: 1000mA (850mA-1150mA@1.2 V)

AA/AAA*2/*3/*4PCS: 2000mA (1700mA-2300mA@1.2 V)

DC 9V: 45mA

No Load Power Consumption

0.5W MAX

Full Load Power Consumption

12W MAX

Discharge Current

DC 1.2V 600mA MAX(@120-200mA 4 cells discharged at full load)

Volt @No load

AA/AAA: 0-6V

9: 0-16V

  • LED will not turn off when fully charged for 9V battery, please remove the 9V battery timely when fully charged.
  • Please ensure the battery installed is correct: make the +/- pole of the battery is match for the +/- pole of the charger.
  • Using environment: 0℃ to 40℃, it is normal phenomenon that the battery is warmer than room temperature when charging.
  • Do not disassemble or reassemble the charger by yourself for safety reason.
  • Work Temperature: Surface temperature of charger ≤ 60℃. Surface temperature of battery ≤ 45℃.

🔋EBL AA Ni-MH Rechargeable Batteries 2800mAh

Specifications

Battery Size

AA Batteries

Brand

EBL

Voltage

1.2V

Battery Type

Ni-MH

Rechargeable

Yes

Capacity

2800mAh

Charge Current

Trickle: 0.02C-0.05C

Standard: 210mA x 16H

Quick: 420mA x 7H

Rapid: 1050mA x 2.4H

Discharge Current

Standard: 420mA

High Rate: 2100mA



End voltage of discharge

1V





Open circuit voltage

1.25V

Internal impedance

≤38mΩ

Weight of Single AA Battery

24.8g/0.87oz

Dimensions of Single AA Battery

(50.5-1)*(14.5-0.7)mm

🔋EBL AAA Rechargeable Ni-MH Batteries 1100mAh

Specification

    Battery Size

    AAA Batteries

    Brand

    EBL

    Voltage

    1.2V

    Battery Type

    Ni-MH

    Rechargeable

    Yes

    Capacity

    1100mAh

    Charge Current

    Trickle: 0.02C-0.05C

    Standard: 80mA for 16H

    Quick: 160mA for 7H

    Rapid: 400mA for 2.4H

    Discharge Current

    Standard: 160mA (0.2C)

    High Rate: 800mA (1C)

    End voltage of discharge

    1V





    Open circuit voltage

    1.25V

    Internal resistance

    ≤40 mΩ

    Weight of Single AAA Battery

    12±1.5g/0.42oz

    Dimensions of Single AAA Battery

    (44.35±0.3)*(10.35±0.25)mm

    🔋EBL D Size Rechargeable Batteries 10000mAh

    Specification

    Battery Size D Batteries Rechargeable Yes
    Capacity 10000mAh Battery Type Ni-MH
    Voltage 1.2V Brand EBL
    Weight of Single Cell 126±2g/4.45oz Dimensions of Single Cell 33*61.5mm

    🔋EBL C Ni-MH Rechargeable Batteries 5000mAh

    Specification

    Battery Size C Batteries Rechargeable Yes
    Capacity 5000mAh Battery Type Ni-MH
    Voltage 1.2V Brand EBL
    Weight of Single Cell 73g/2.57oz Dimensions of Single Cell (50.0-1.5)*(25.8-1.0)mm

    🔋EBL 9V Rechargeable Ni-MH Battery 280mAh

    Specification

    Battery Size 9V Rechargeable Yes Capacity 280mAh
    Battery Type Ni-MH Total Resistor ≤700mΩ Brand EBL
    Rated Voltage 8.4V Charge limited voltage 10.5V Discharge-off voltage 7V
    Standard Charging 15mA×15hrs Standard Discharge 30mA300min Rapid Charging Current 150mA×1.1hrs
    Dimensions of single battery  45.4*26.6*17.3mm Weight of single battery 35g/1.23oz Rapid Discharge Current 150mA≥54min

    🔋EBL 9V Li-ion Rechargeable Batteries 600mAh

    Specification

    Battery Size
    9V
    Brand
    EBL
    Battery Type
    Li-ion
    Capacity
    600mAh
    Rechargeable
    Yes
    Rated Voltage
    7.4V
    Charge limited voltage
    8.4V
    Discharge-off voltage
    5.6V
    Charging Current
    Standard: 100mA
    Rapid: 500mA
    Discharge Current

    Standard: 100mA
    Rapid: 500mA

    Operating Temperature Range
    Charge: 32℉ ~ 113℉
    Discharge: 14℉ ~ 122℉
    Total Resistor
    ≤230mΩ
    Weight of single battery
    22g/0.77oz
    Dimensions of single battery
    (47.9*25.9*17.3)±0.5mm

    What You Get

    906 Battery Charger + AA AAA C D Ni-Mh Batteries and 9V Li-ion Batteries

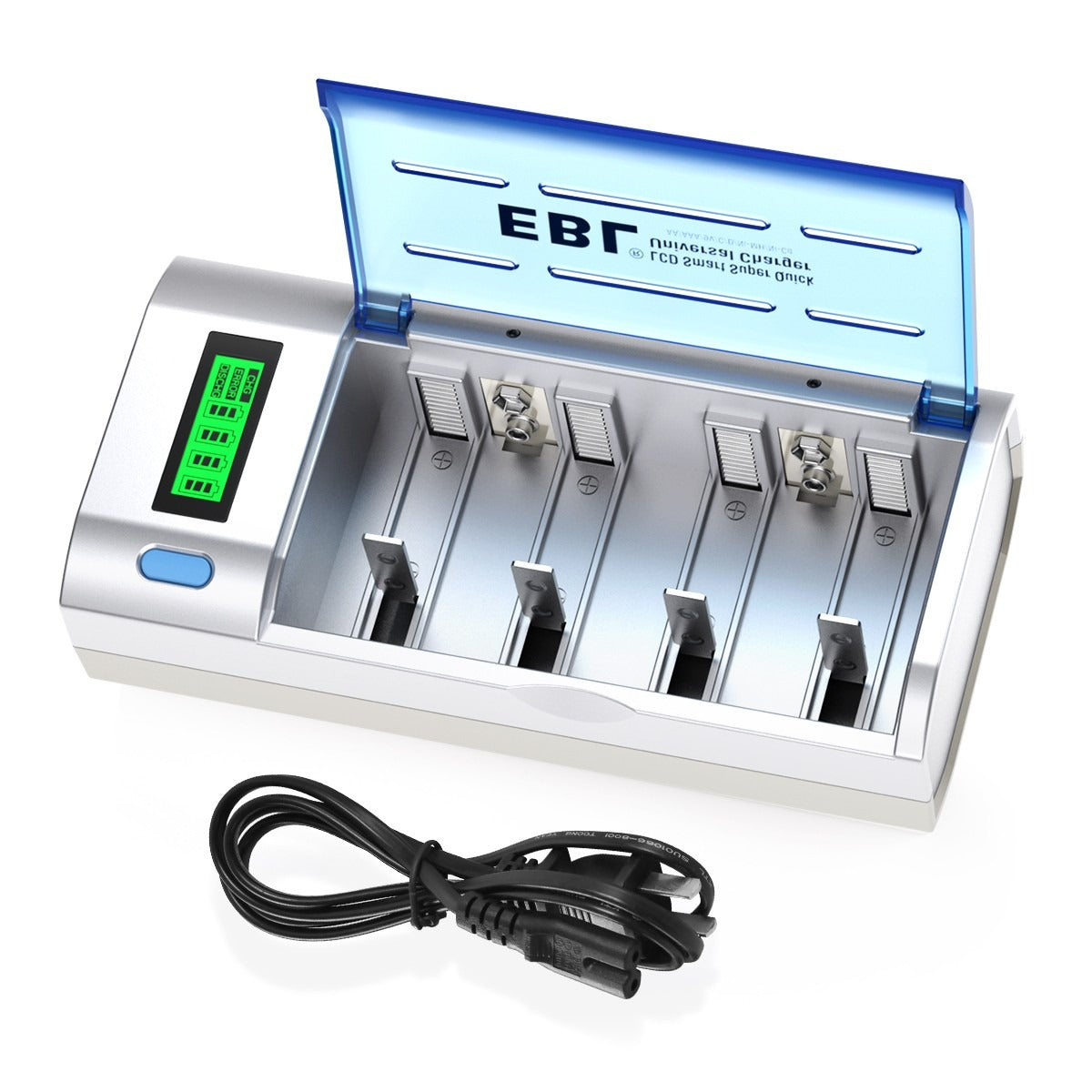

    • 1 x 906 Smart Battery Charger
    • 1 x User manual
    • 1 x AC power cable
    • 4 x AA Batteries 2800mAh
    • 4 x AAA Batteries 1100mAh
    • 2 x D Batteries 10000mAh
    • 2 x C Batteries 5000mAh
    • 2 x 9V Li-ion Batteries
    906 Battery Charger + AA AAA C D 9V Ni-Mh Batteries
    • 1 x 906 Smart Battery Charger
    • 1 x User manual
    • 1 x AC power cable
    • 4 x AA Batteries 2800mAh
    • 4 x AAA Batteries 1100mAh
    • 2 x D Batteries 10000mAh
    • 2 x C Batteries 5000mAh
    • 2 x 9V Ni-Mh Batteries
