E-manual

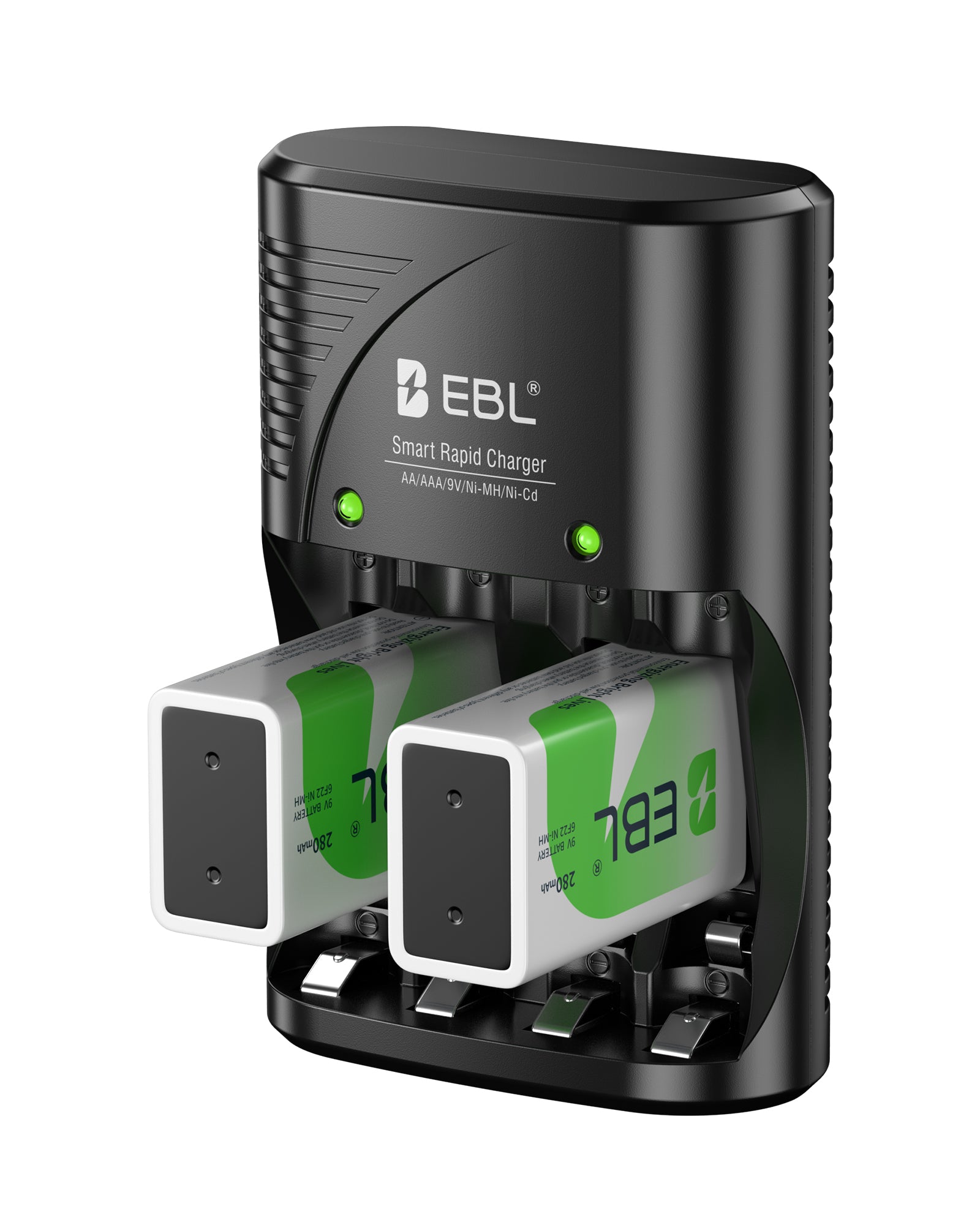

EBL Smart Rapid AA AAA Charger for AA AAA 9V Rechargeable Batteries Ni-MH Ni-CD Rechargeable Batteries

⚡EBL-802⚡

【Smart Multi-Function Charger】

It can charge up to 2 or 4 pieces of AA/AAA Ni-MH/Ni-CD rechargeable batteries in pairs, and can also charge 1 or 2 pieces of 9V Ni-MH/Ni-CD rechargeable batteries individually.

Note: The absolute 0V battery can not be charged. Can not charge alkaline or carbon battery.

【Worldwide Usage】

100-240V AC Input, 50/60 HZ, which is easy for you to use the battery recharger anywhere.

【Safe Assurance】

EBL 802 battery charger Controlled by MCU, and using -△V pulse charging technology, automatically turn to trickle charge, prevent the charger from over-charge, over-discharge, over-current and over-heat.

【Intelligent Auto-detection】

• Faulty battery: LED shows RED flashing light, easily helps you detcted all the bad batteries.
• Keep Red: Charging.
• Keep Green: Fully charged.

【Fast Charger】

Quick charging IC, power your batteries super fast, great build quality.

【Can Refresh Battery】

If the voltage of battery is too low(0-0.9V), the charger can refresh battery itself.

【 What You Get】

1 x EBL-802 Battery Charger
1 x User manual

【Specification】

• Operating Temperatue: 0-30℃, Humidity: ≦80％
• Storage Temperatue: 0-25℃, Humidity: ≦60％
• Surface Temperatue of batteries when charging: ≦60℃
• Surface Temperatue of charger when charging: ≦45℃

【Attention】

Please ensure the battery installed is correct: make the +/- pole of the battery is a match for the +/- pole of the charger.

Never mix charge different types and different capacities of batteries under the same LED indicator.

Using environment: 0℃ to 35℃, it is a normal phenomenon that the battery is warmer than room temperature when charging.

Do not disassemble or reassemble the charger by yourself for safety reasons.

【What's the advantage of the smart battery charger? 】

The voltage of the battery increases slowly during the charging process, until the battery is fully charged. After that, the voltage decreases, which indicates to an intelligent charger that the battery is fully charged. The smart chargers employ a variety of cut-off systems to prevent overcharging.
