EBL Upgraded 808 8-Bay AA AAA Individual Battery Charger
Tax excluded. Shipping calculated at checkout
Download User Guide (PDF)

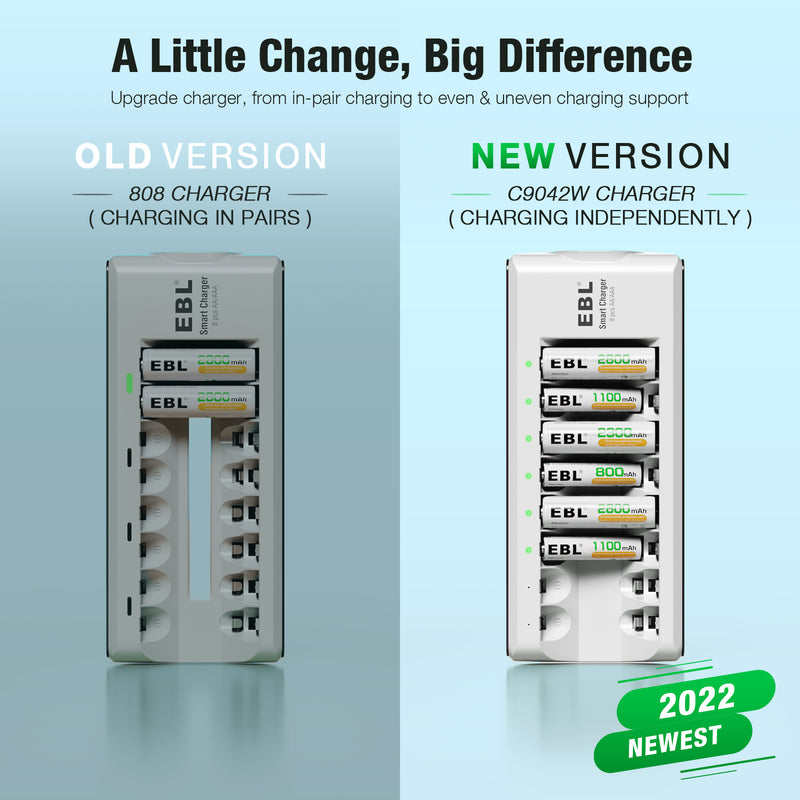

EBL Upgraded 8-Bay Individual Battery Charger for AA AAA NIMH NICD Rechargeable Batteries
⚡Upgraded 808 Individual Battery Charger⚡
AA AAA Battery Charger
Advanced fire-proof material has been apdoted to this EBL rechargeable aa aaa batteries charger - individual charger, freely working for 1-8 Ni-MH Ni-Cd AA AAA rechargeable batteries. (Do not charge alkaline or Lithium batteries)
Patent Trickle Charge Mode
Constant current charging would protect the 1.2V batteries against current fluctuation and keep using the aa aaa rechargeable charger safely.

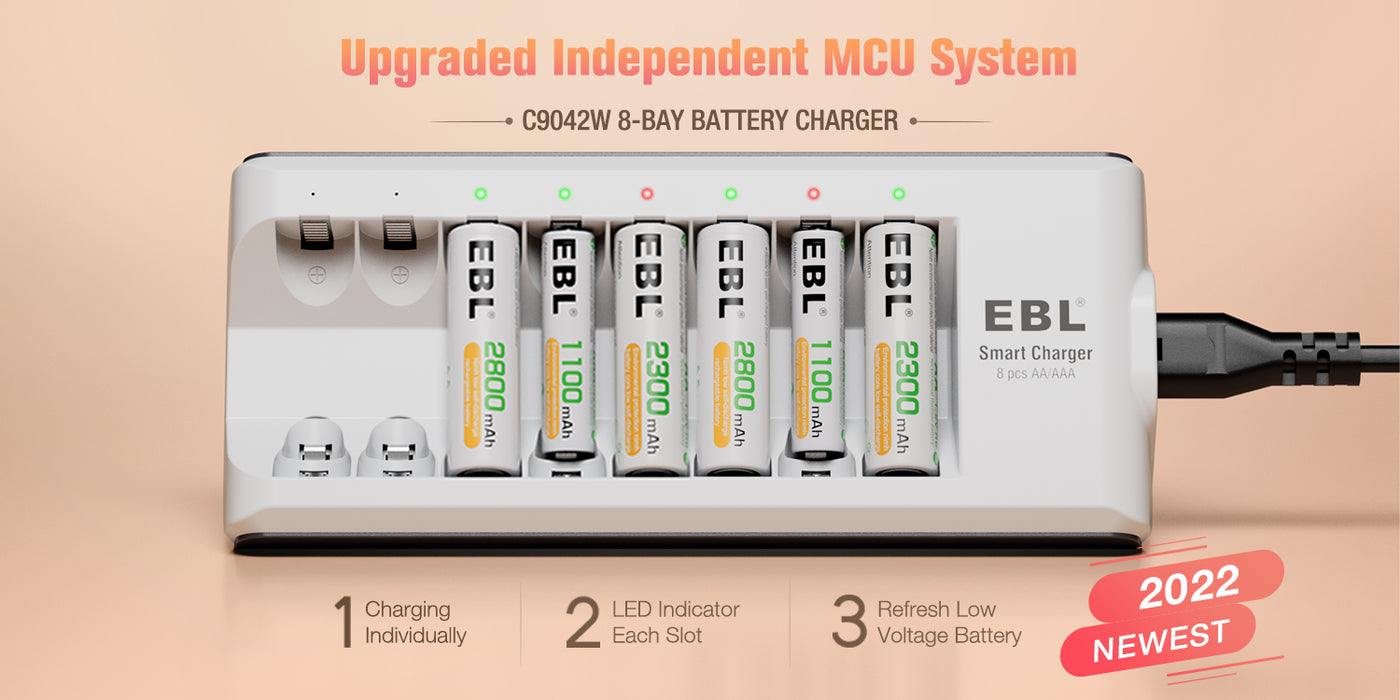

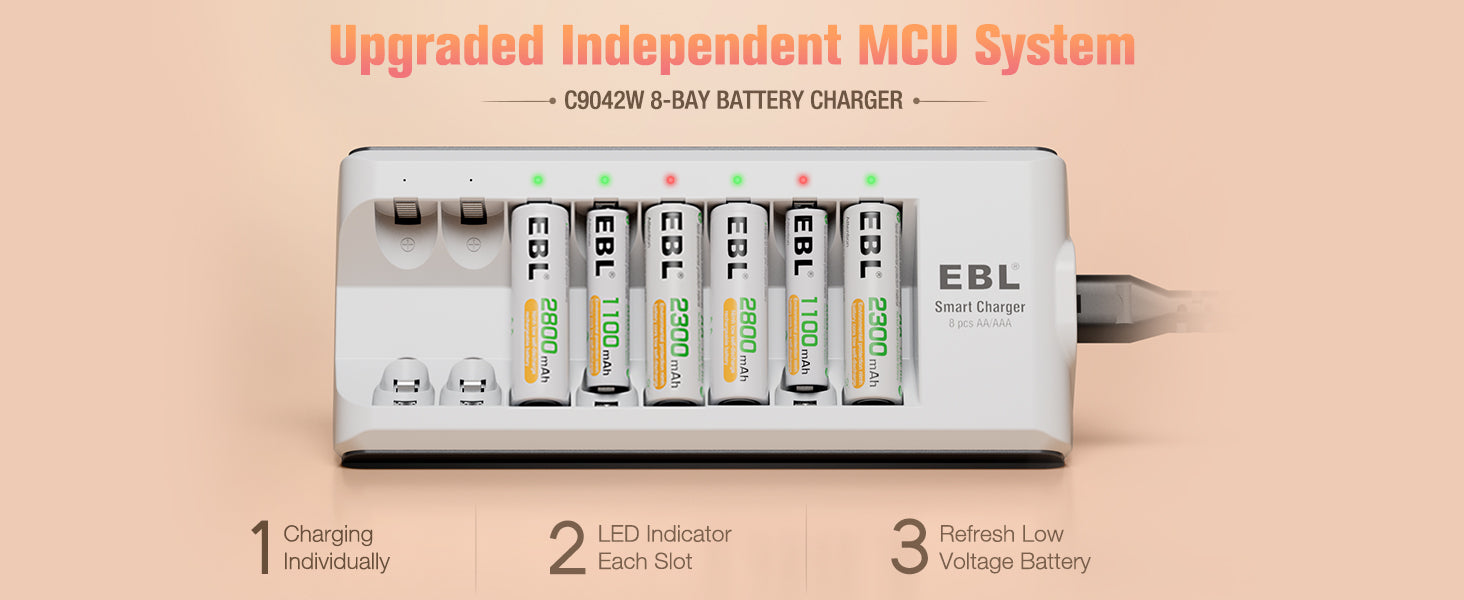

Advanced MCU Control

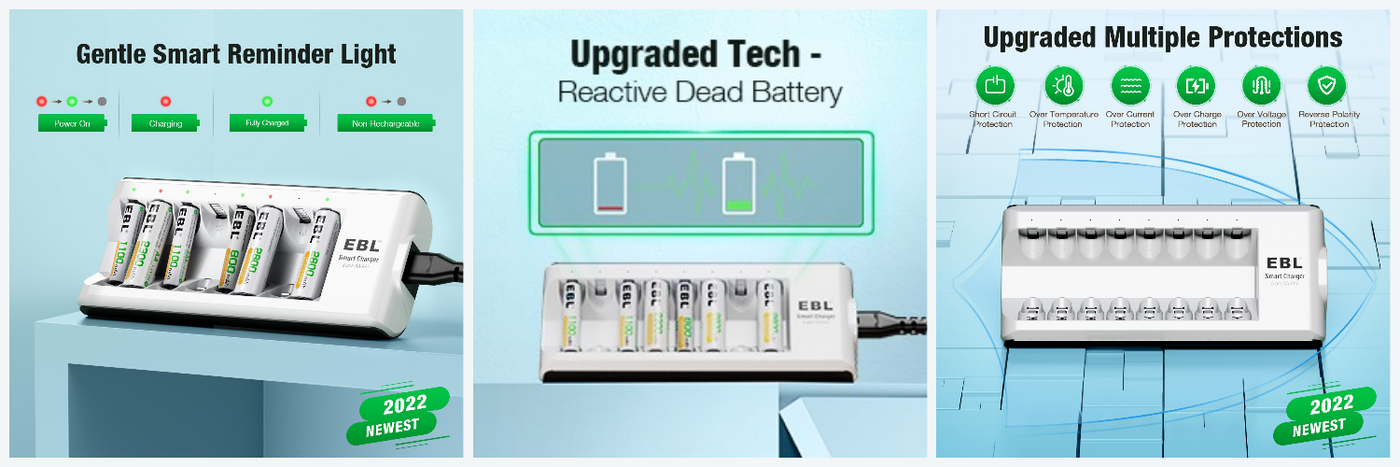

Controlled by MCU, automatically stop charging when detecting improper input voltage, defective or short circuit or non rechargeable batteries.
Charging Time Table
2 to 8pcs AAA 500-1200mAh: 1.5 - 4 hours (150-350mA output)
2 to 8pcs AA 1300-2800mAh: 1.5 - 8 hours (150-500mA output)
Specifications
|
Model No. |
Upgraded 808 (C9042W) Battery Charger |
Brand |
EBL |
|
Compatible |
1 ~ 8 Ni-MH Ni-Cd AA and AAA rechargeable batteries |
||
|
Input |
AC 100-240V AC 50/60Hz |
Output |
DC 1.2V 1000mA |
|
Dimensions of charger |
(176.5*78.5*27.8mm)±3 mm |
Weight of charger |
148±5g/5.4oz |
Attention

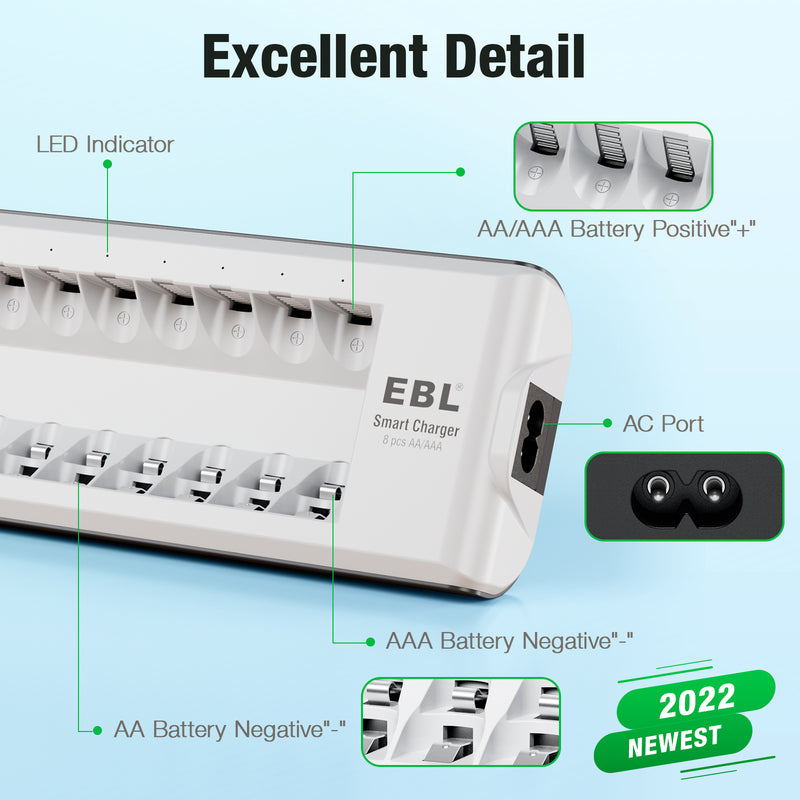

* Please ensure the battery installed is correct: make the +/- pole of the battery is match for the +/- pole of the charger.
* Using environment: 0℃ to 40℃, it is normal phenomenon that the battery is warmer than room temperature when charging.
* Do not disassemble or reassemble the charger by yourself for safety reason.
Package Includes
- 1 x Upgraded 808 Battery Charger
- 1 x AC adapter cable
