EBL AA and AAA Ni-MH Rechargeable Batteries Long Lasting Battery with 808 Battery Charger for AA AAA Ni-MH Ni-Cd Batteries
Tired of slow, clunky chargers and endless waiting?
Buy a better charger and get your batteries charged up fast.
Buy the 808 charger separately, click here
Buy the aa aaa batteries separately, click here

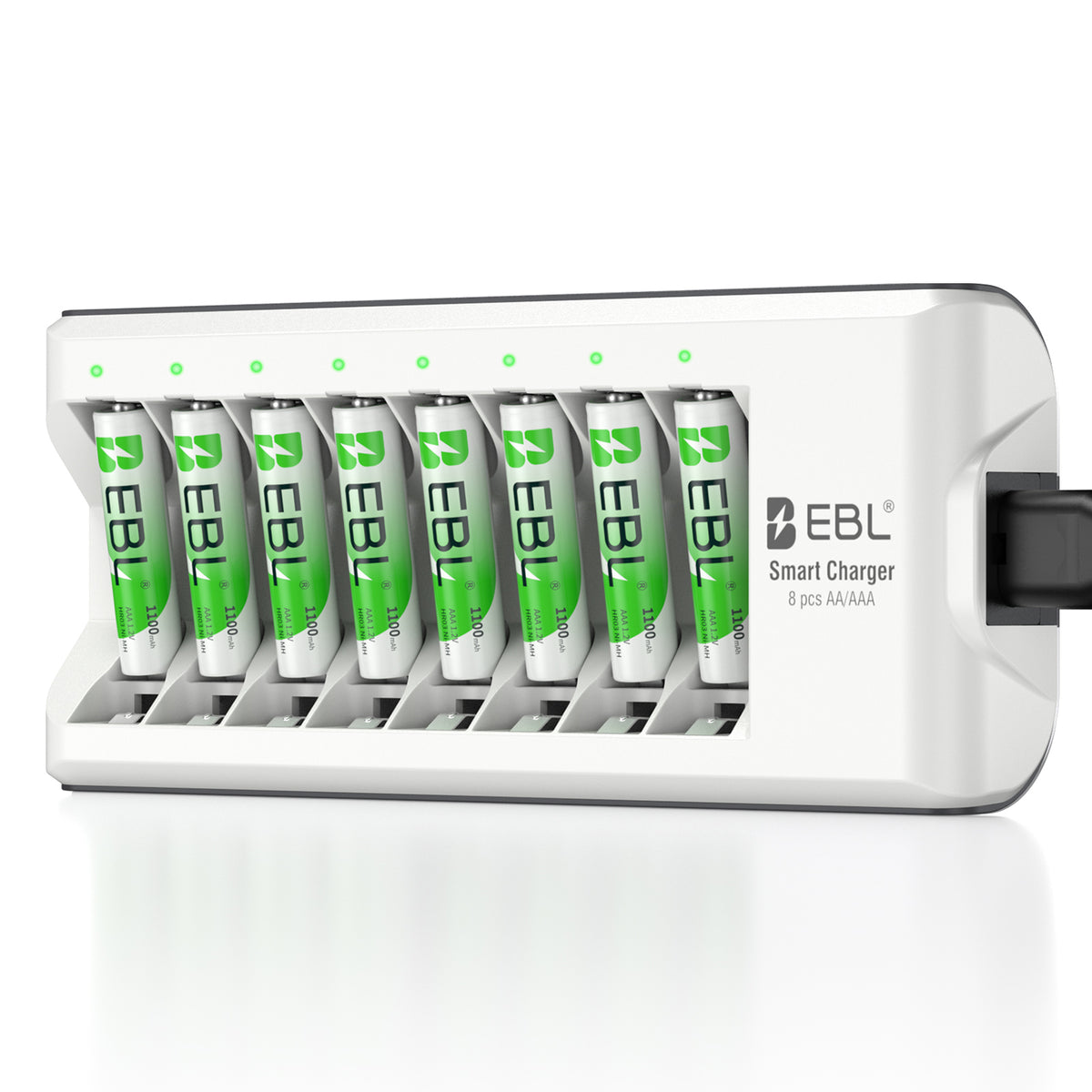

AA AAA Battery Charger
Advanced fire-proof material has been apdoted to this EBL 808A rechargeable aa aaa batteries charger - freely working for 2/4/6/8 Ni-MH Ni-Cd AA AAA rechargeable batteries in pairs. (Do not charge alkaline or Lithium batteries)
Smart LED Indicator
RED - charging; GREEN - fully charged. Red LED Flash: a bad battery or non-rechargeable batteries. Easily to know its charging progress.
Patent Trickle Charge Mode
Constant current charging would protect the 1.2V batteries against current fluctuation and keep using the aa aaa rechargeable charger safely.
Advanced MCU Control
Controlled by MCU, automatically stop charging when detecting improper input voltage, defective or short circuit or non rechargeable batteries.
Charging Time Table
2 to 8pcs AAA 500-1200mAh: 1.5 - 4 hours (180mA output)
2 to 8pcs AA 1300-2800mAh: 1.5 - 6 hours (200mA output)

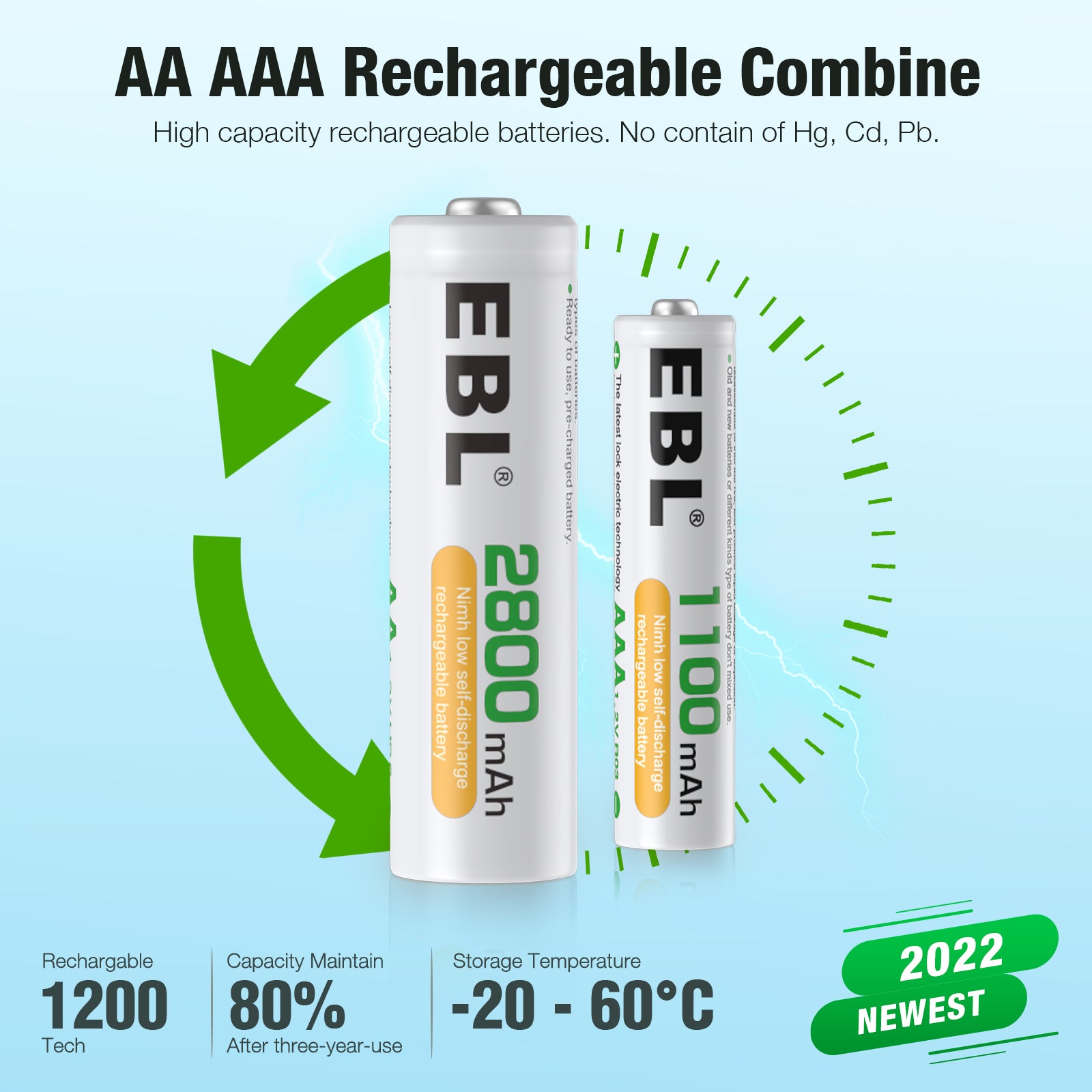

Long Lasting Batteries
Batteries keep a high performance that its life span up to 1200 cycle and will maintain 75% capacity after 3 years no use.

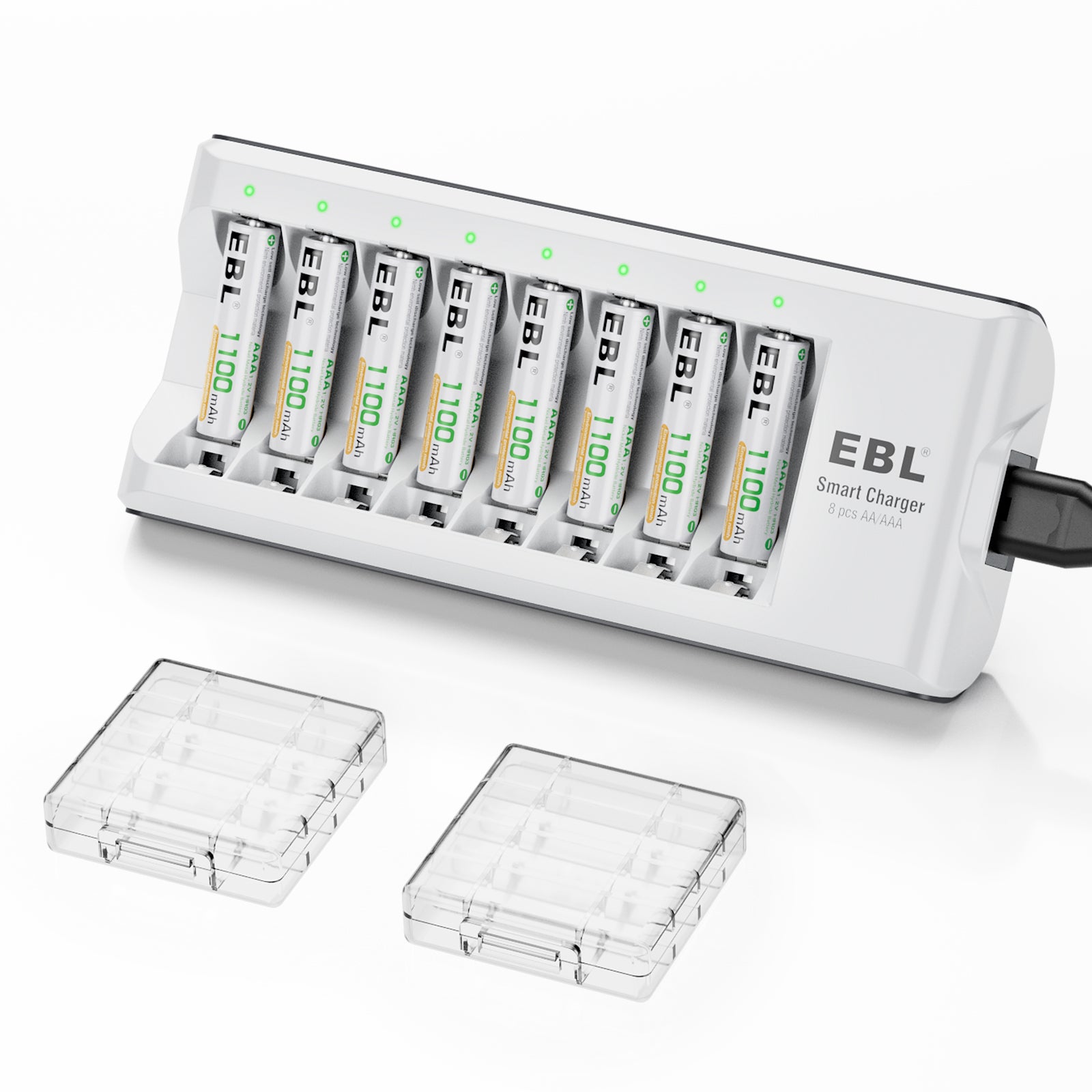

Storage Box Included
Batteries come with storage box, much convenient for your collecting while no use or in travel.

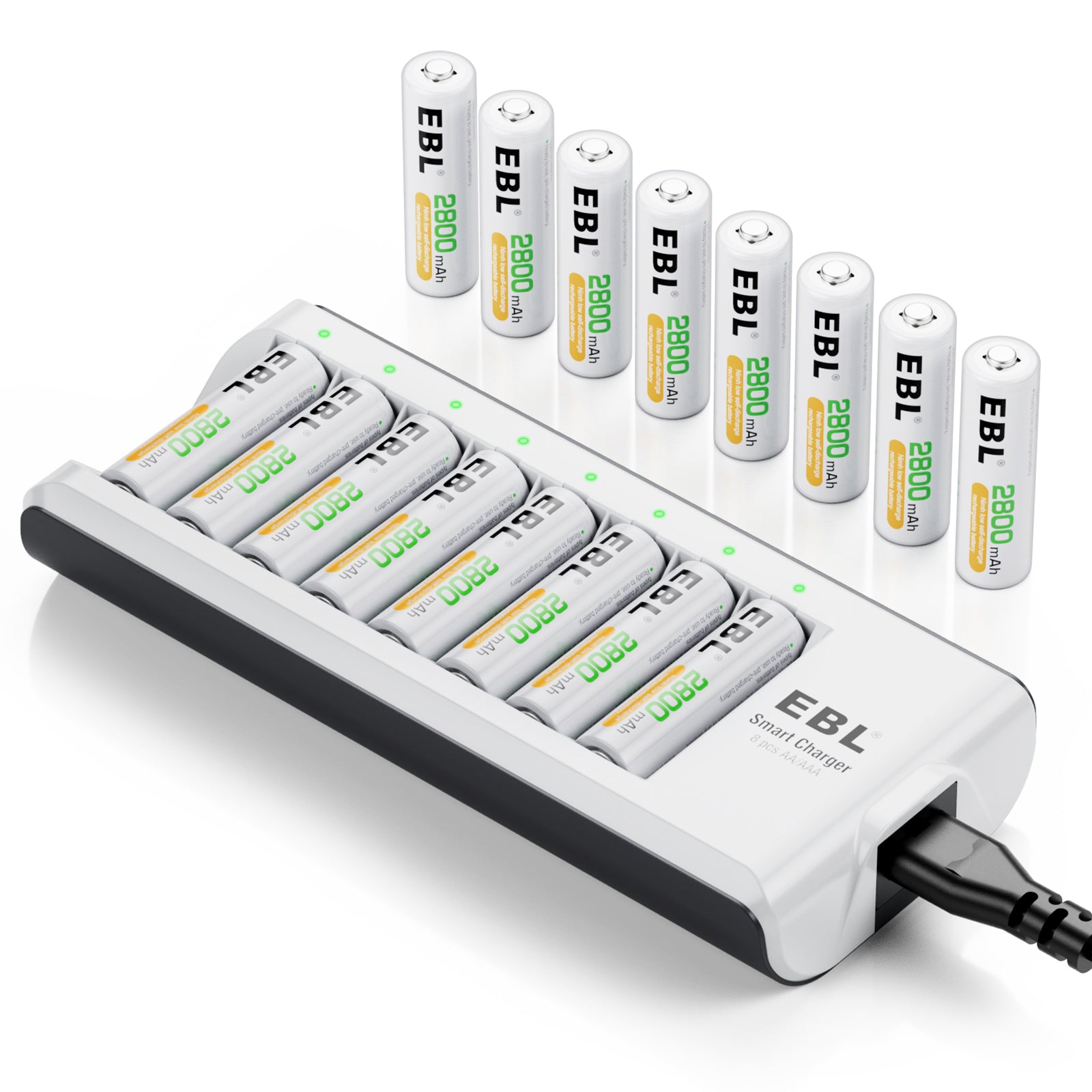

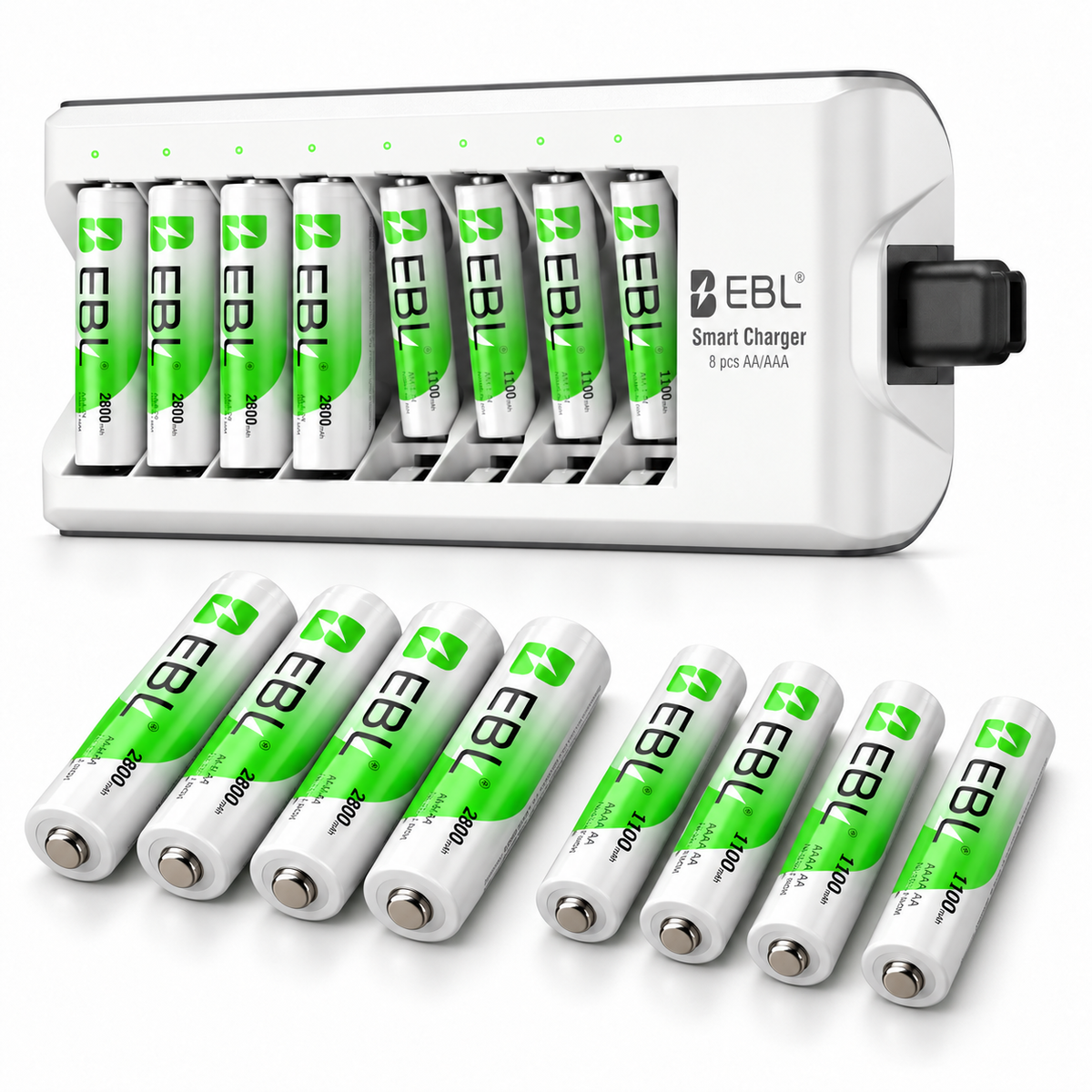

What You Get - Six combinations to choose from

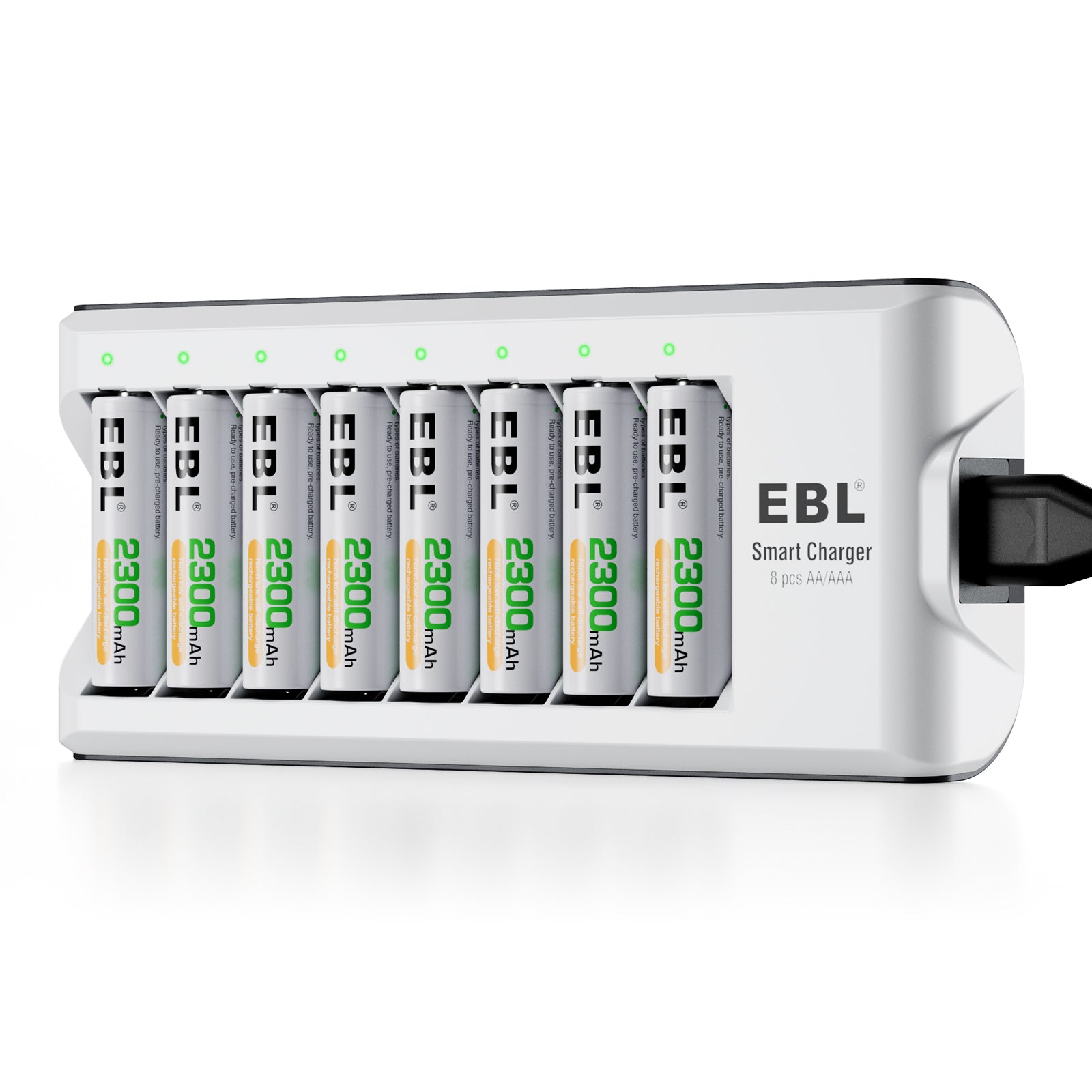

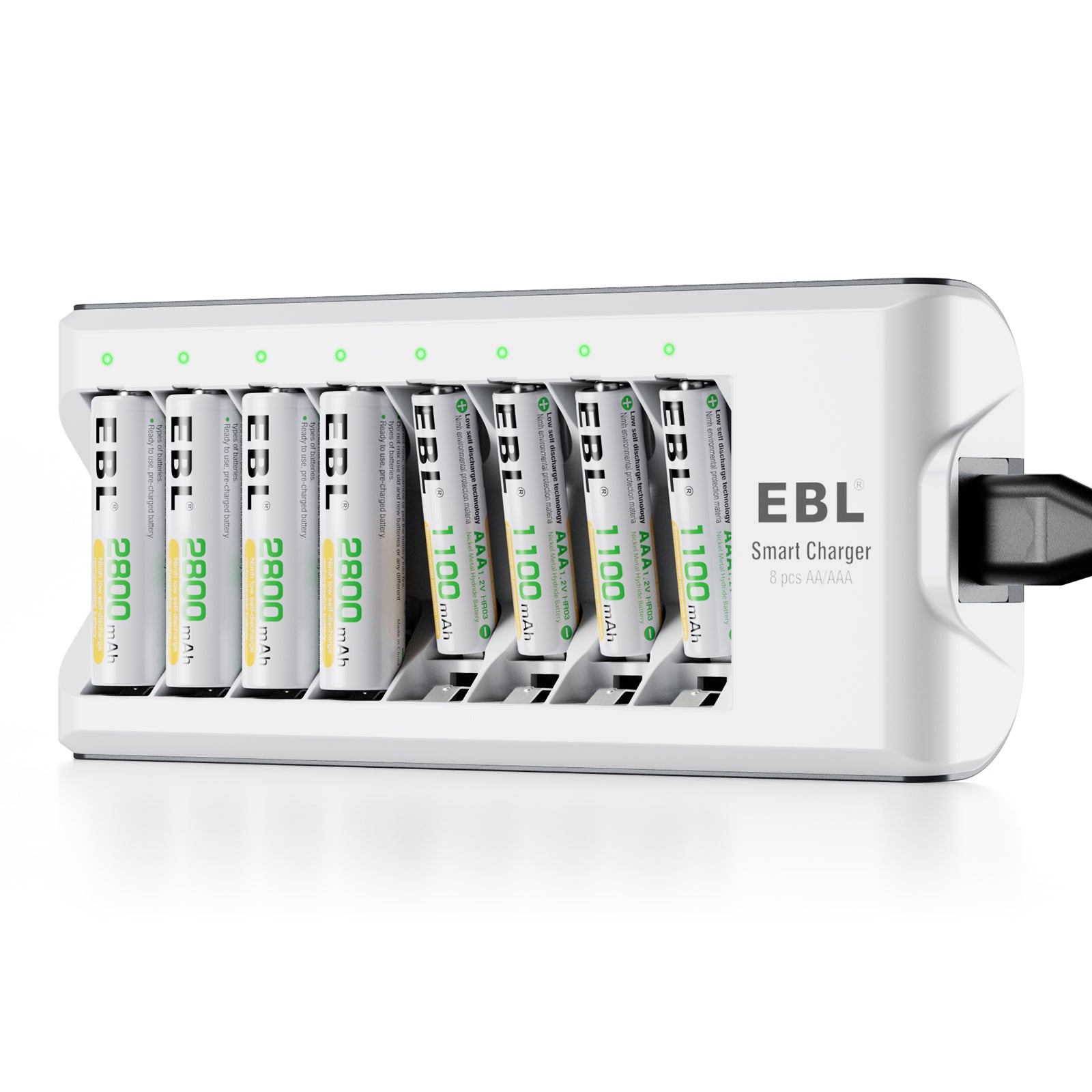

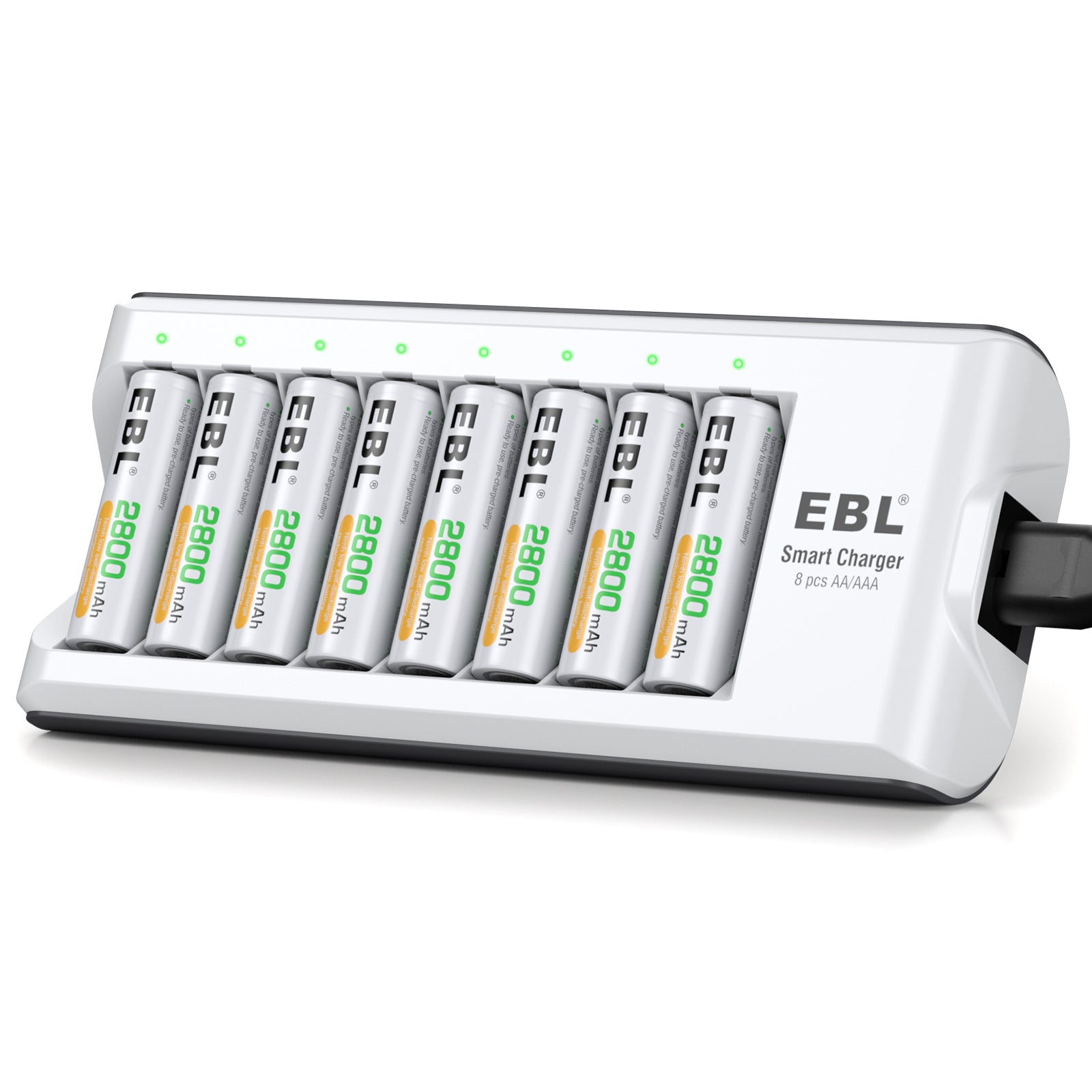

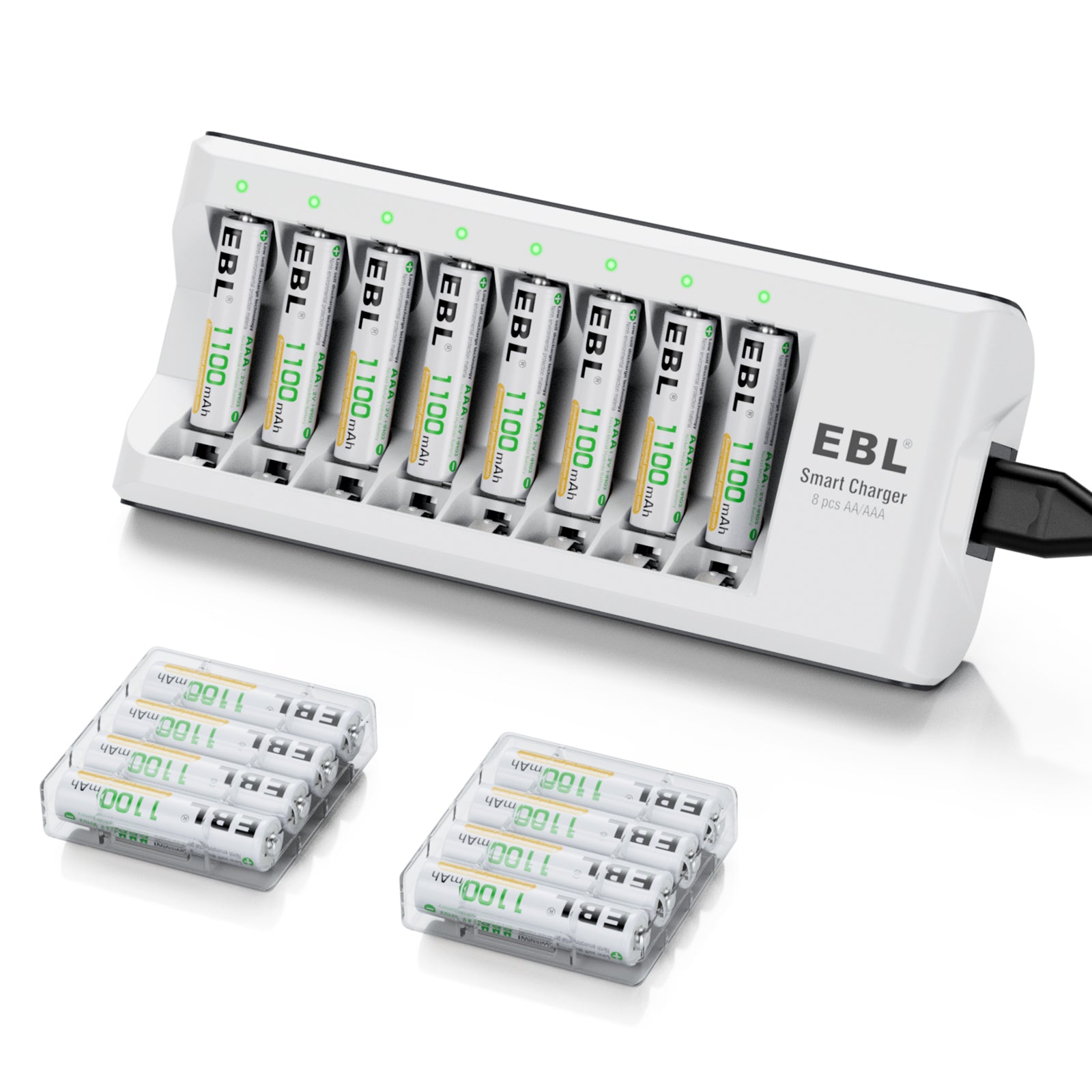

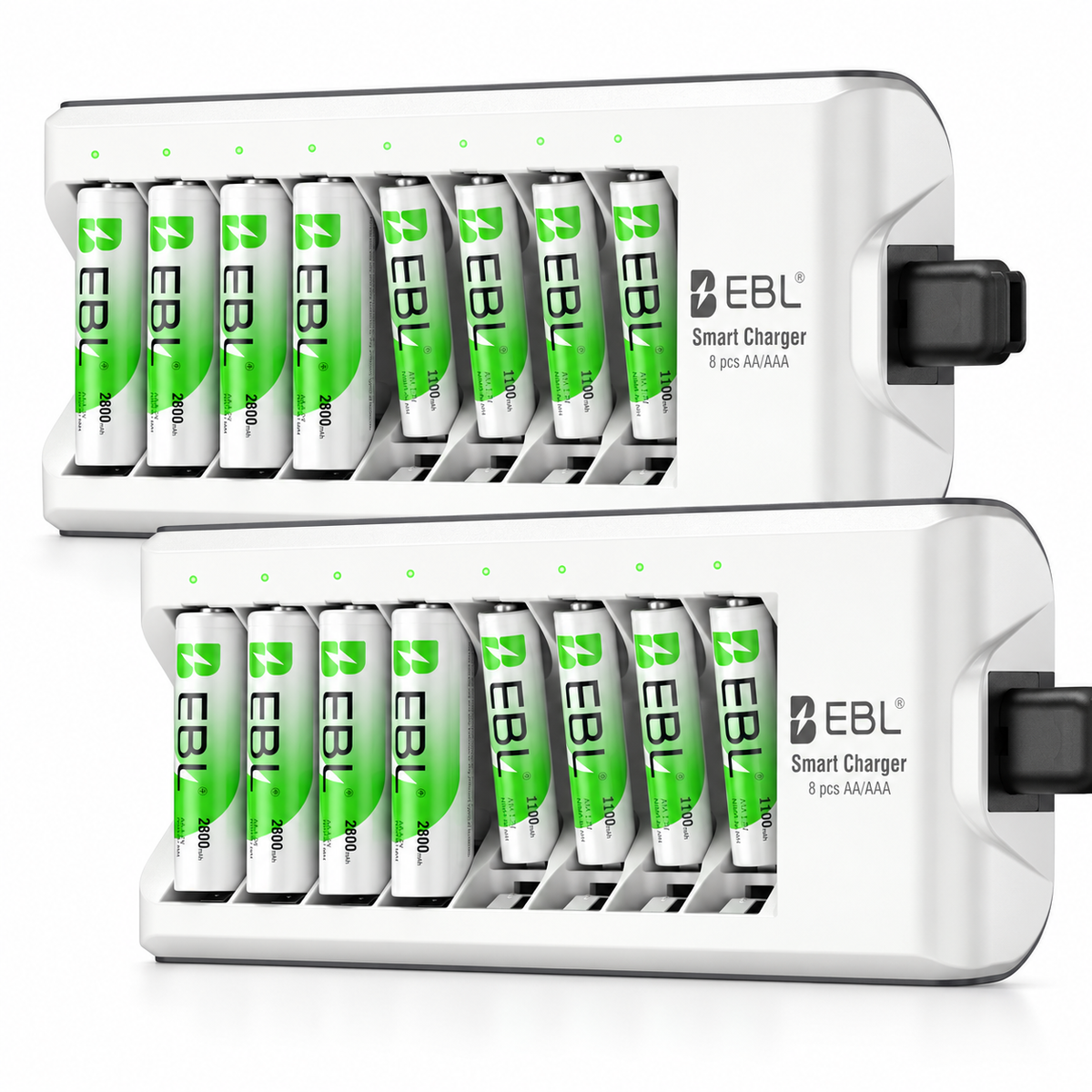

- 8 x AA batteries 2300mAh / 8 x AA batteries 2800mAh / 8 x AAA batteries 1100mAh / 4 x AA batteries 2800mAh and 4 x AAA batteries 1100mAh / 16 x AAA batteries 1100mAh / 16 x AA batteries 2800mAh
- 1 x EBL 808 battery charger
- 1 x user manual
- 1 x AC power adapter
Specification of 808 Battery Charger
Model No. |
808 Battery Charger |
Brand |
EBL |
Compatible |
2/4/6/8 AA AAA Ni-MH Ni-CD rechargeable batteries |
||
Input |
AC 100-120V AC 50/60Hz |
Output |
DC 2.4V 1000mA |
Dimensions of charger |
180*77*28mm |
Weight of charger |
172g/6.07oz |
Specification of AA Battery 2800mAh
Battery Size | AA Batteries | Brand | EBL |
Voltage | 1.2V | Battery Type | Ni-MH |
Rechargeable | Yes | Capacity | 2800mAh |
Weight of single cell | 29.2g/1.03oz | Dimensions of single cell | 50.5*14.5mm |
Specification of AA Battery 2300mAh
Battery Size | AA Batteries | Brand | EBL |
Voltage | 1.2V | Battery Type | Ni-MH |
Rechargeable | Yes | Capacity | 2300mAh |
Weight of single cell | 28g/0.99oz | Dimensions of single cell | 50.5*14.5mm |
Specification of AAA Battery
Battery Size |
AAA Batteries |
Brand |
EBL |
Voltage |
1.2V |
Battery Type |
|
Rechargeable |
Yes |
Capacity |
1100mAh |
Weight of single cell |
13g/0.46oz |
Dimensions of single cell |
44.35*10.35mm |
Attention

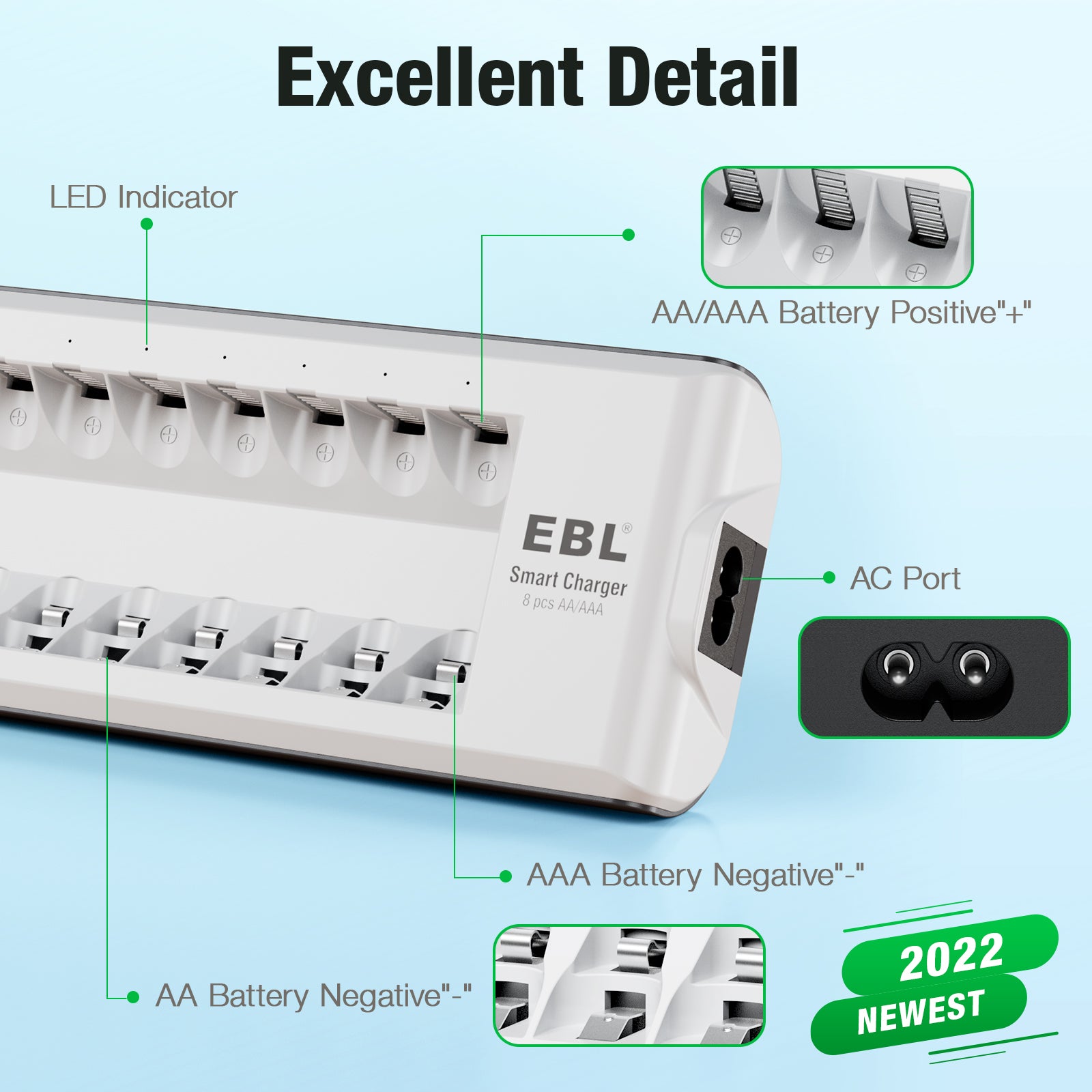

- Please ensure the battery installed is correct: make the +/- pole of the battery is match for the +/- pole of the charger.
- Never mix charge different type and different capacity of batteries under the same LED indicator.
- Using environment: 0℃ to 40℃, it is normal phenomenon that the battery is warmer than room temperature when charging.
- Do not disassemble or reassemble the charger by yourself for safety reason.

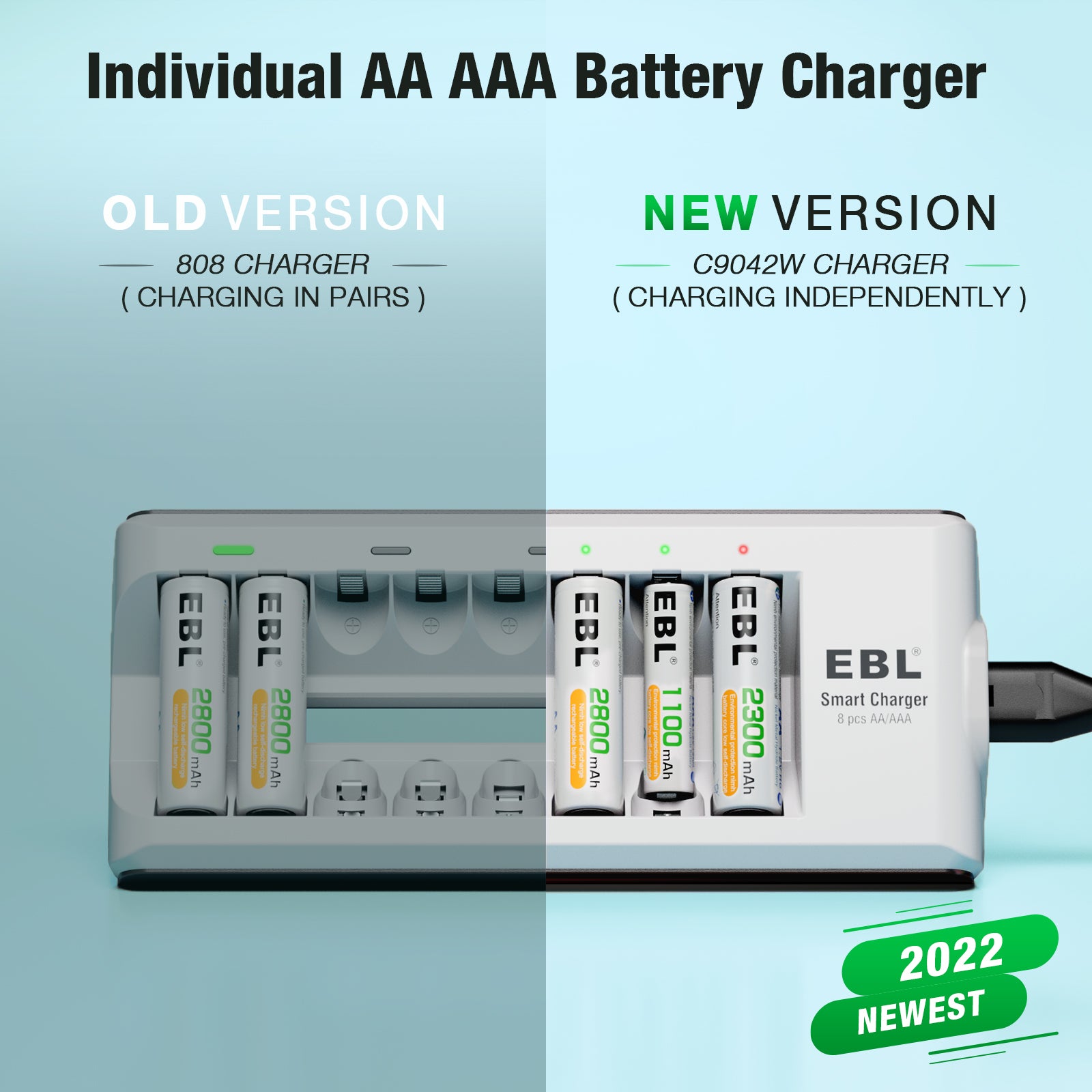

Note: A light corresponding to two slots is Series charging, a pair of batteries charged in series, needs to be the same brand of the same size and capacity of the battery.

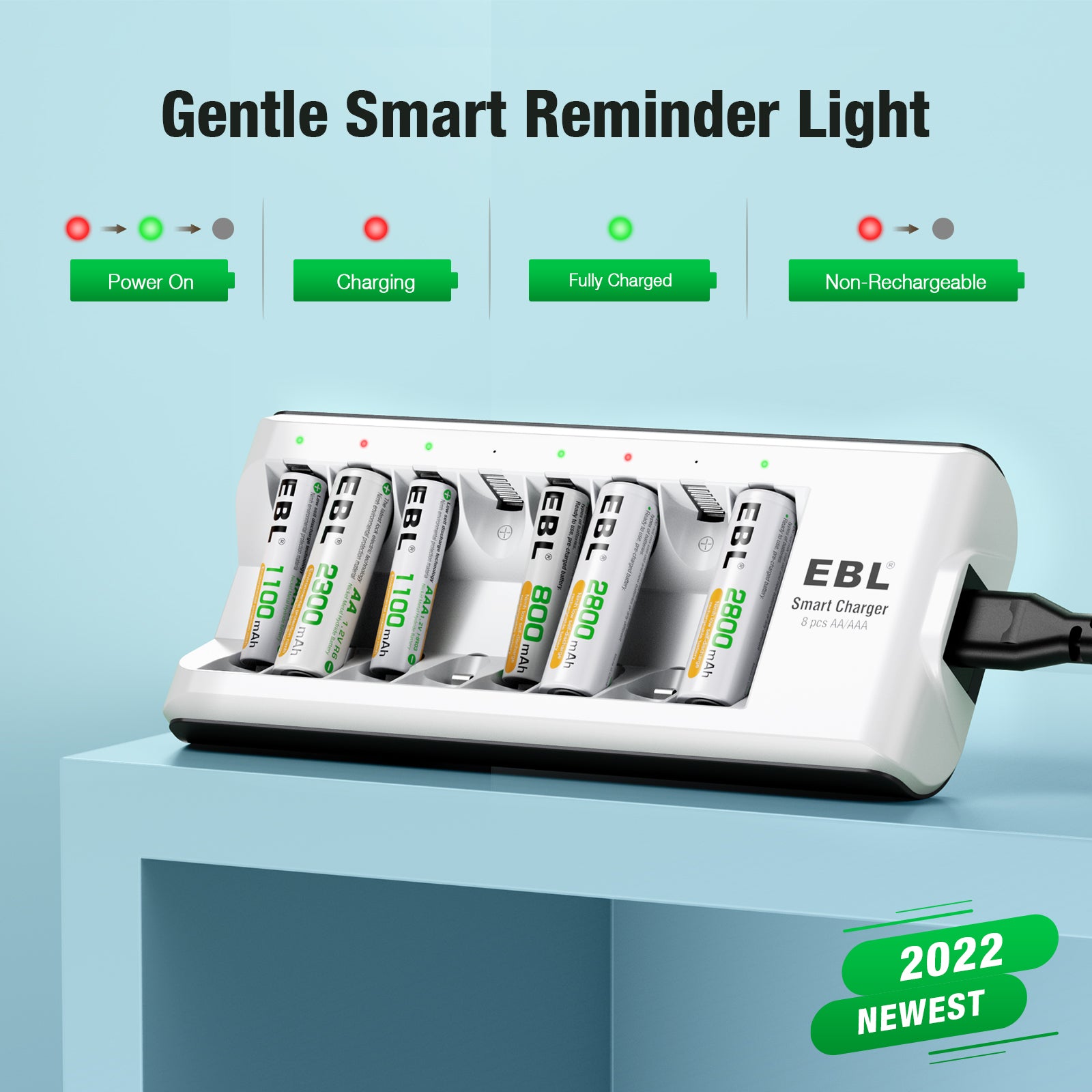

Auto & Smart Indicator
EBL 808 with personality LED indicator. Red means charging; Green means fully charged. Red LED Flash: a bad battery or non-rechargeable batteries.
Unique Trickle Charge

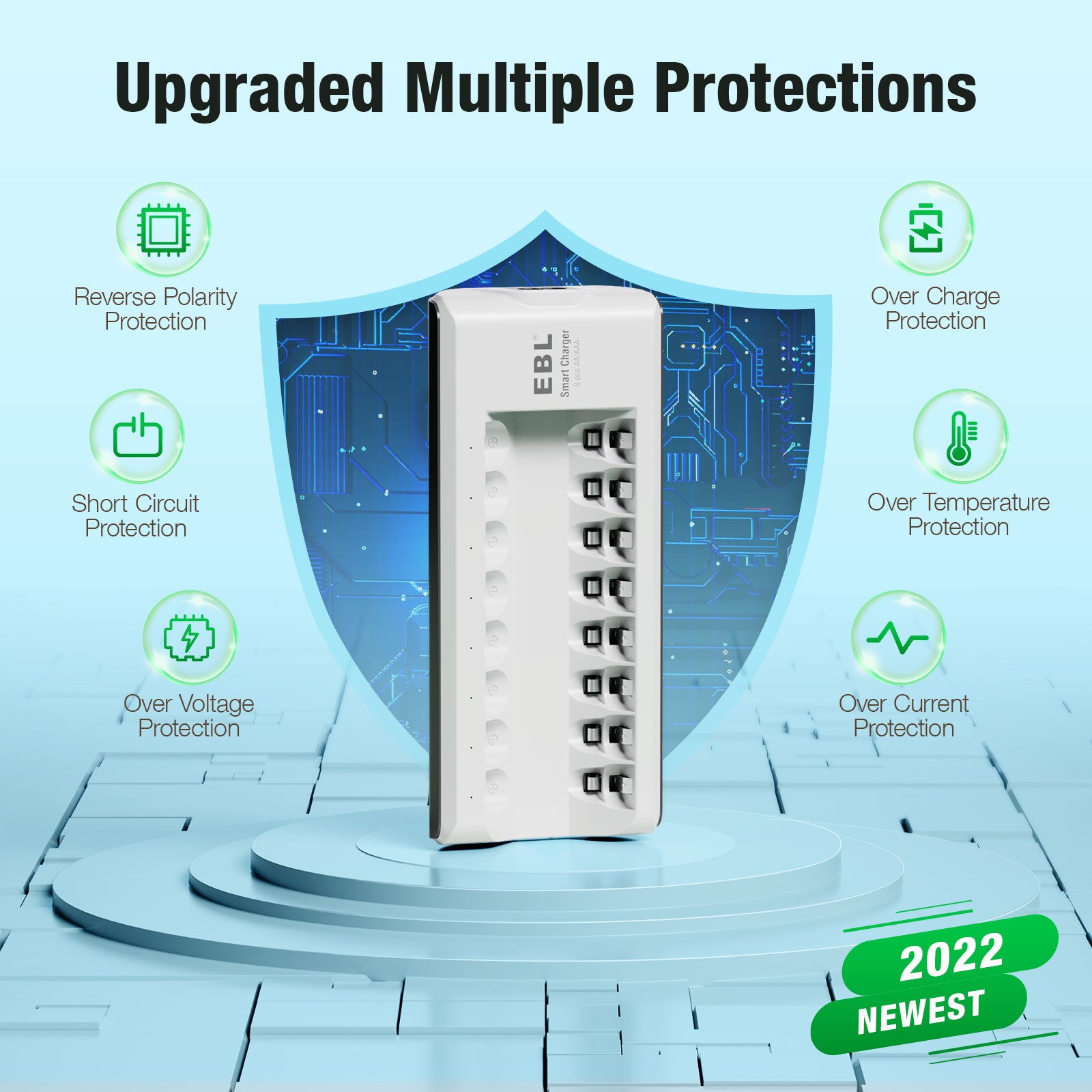

Adopting -∆V intellectual cut-off charging method, automatically turn to trickle charge, overheat-detection to prevent over-charging, short circuit protection and reverse polarity protection.
Better Heat Dissipation
Heat dissipation design help the EBL 808 battery charger has a better function: overheat-detection to prevent over-charging.
How many batteries can be charged at a time?
2/4/6/8 AA or AAA batteries together at a time, need to charge batteries in pairs, do not charge the uneven amount of batteries.
4 LEDs show the status of charging, never charge 1 AA + 1 AAA together at 2 slots which are controlled by 1 LED.
