Download User Guide (PDF) for 907 Individual Battery Charger

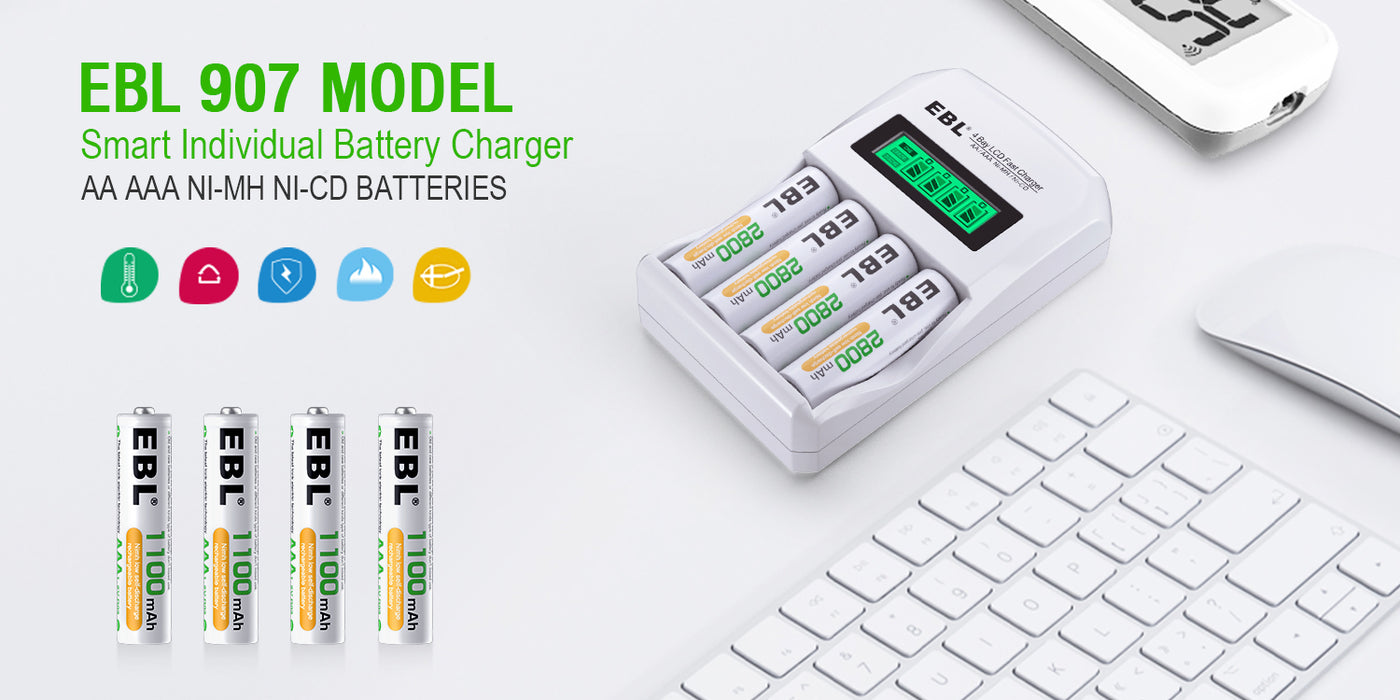

EBL Rechargeable AA AAA Batteries with 907 LCD Individual AA AAA Rechargeable Battery Charger
【AA AAA Battery Charger】

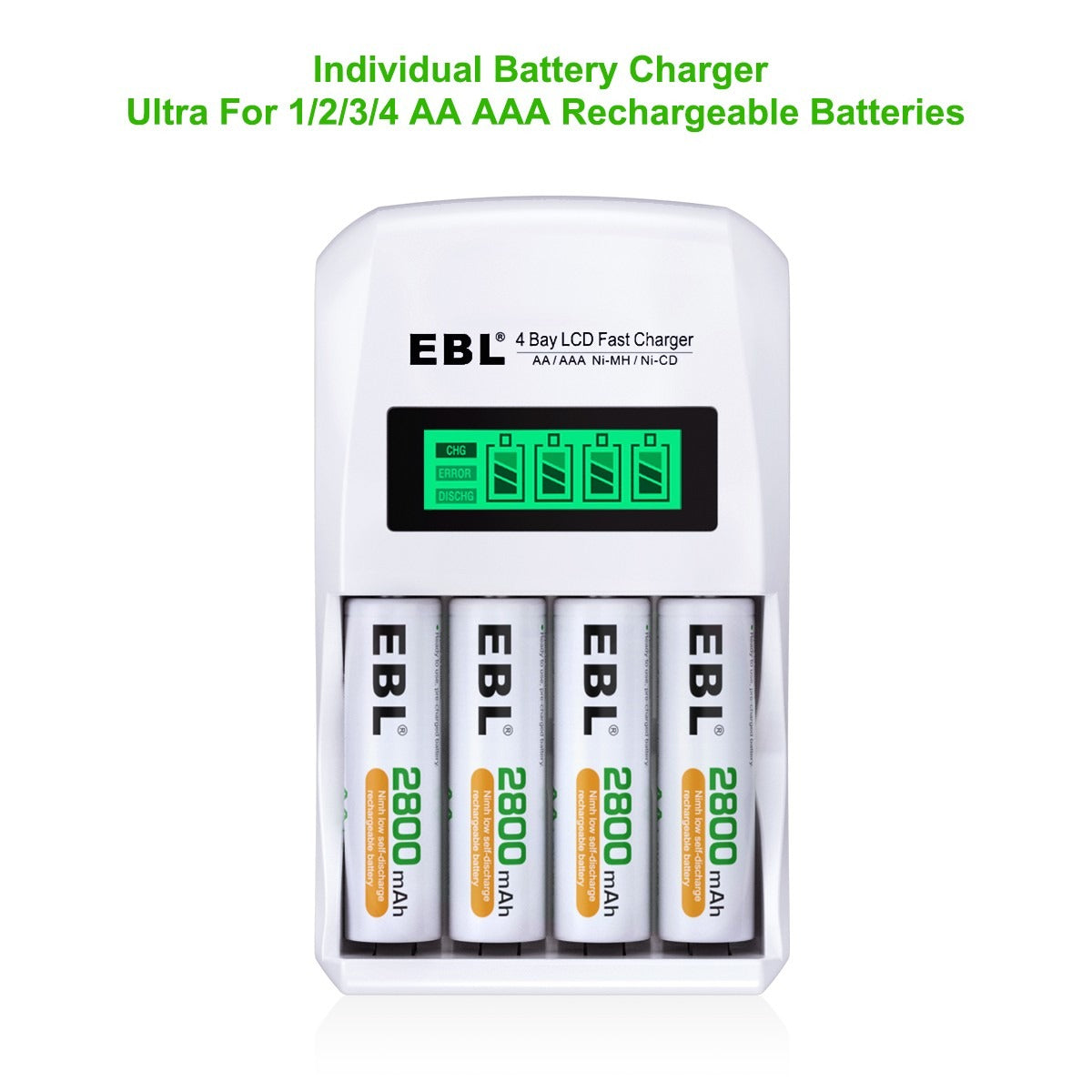

EBL Rechargeable AA AAA Battery Charger with LCD Display could charge 1,2,3,4 Ni-MH Ni-CD AA and AAA rechargeable battery individually. (Do not charge alkaline or Lithium batteries)
【Smart LCD Display】
Smart LCD to show its charging progress separately, the battery icon stop flashing when fully charged. “CHG” -- Charging; “ERROR” -- install the battery incorrectly or the battery is broken one.
【Safety Guaranteed】

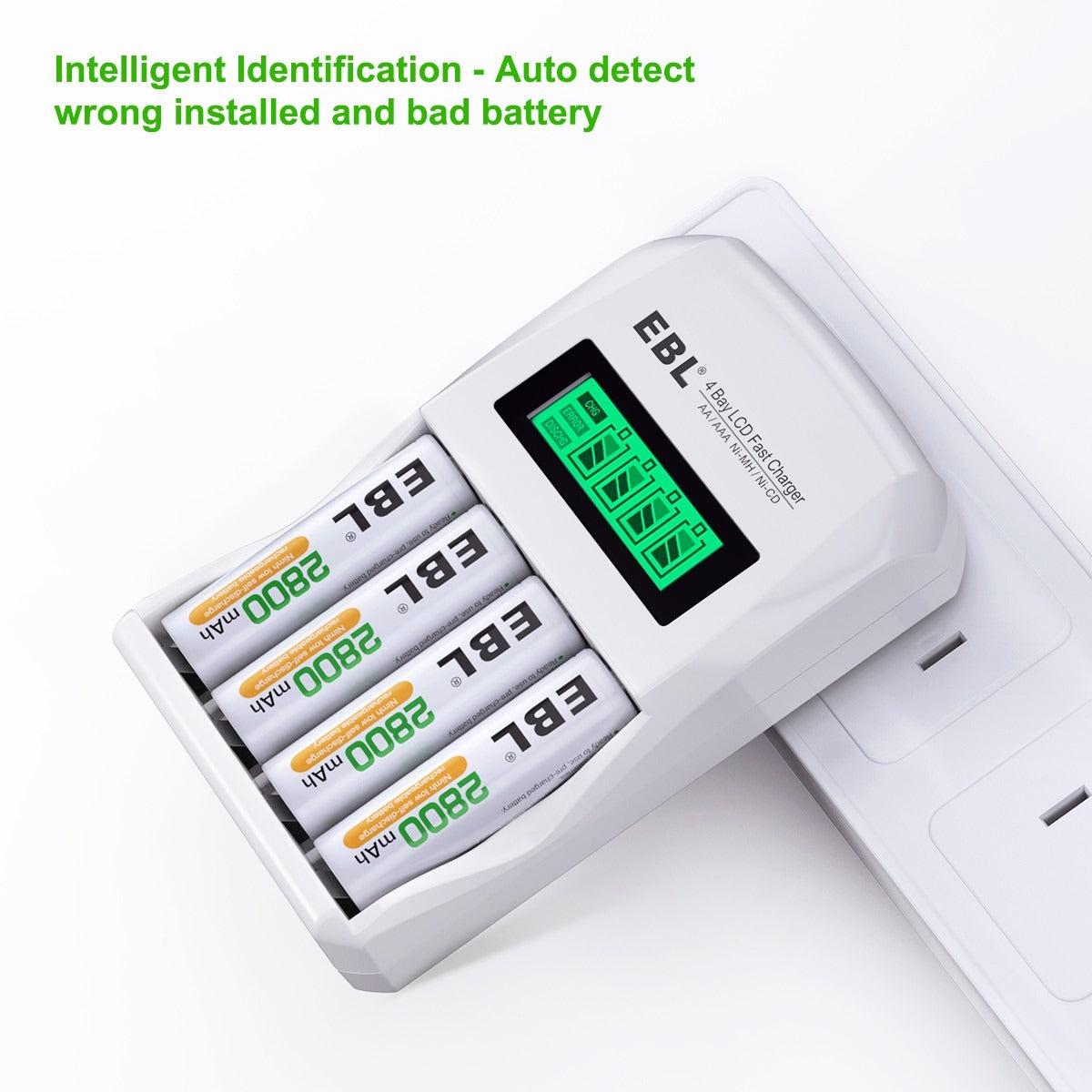

Advanced MCU control and -∆V function, over-heat and over-current protection, short-circuit protection, non-rechargeable and defective battery detection.

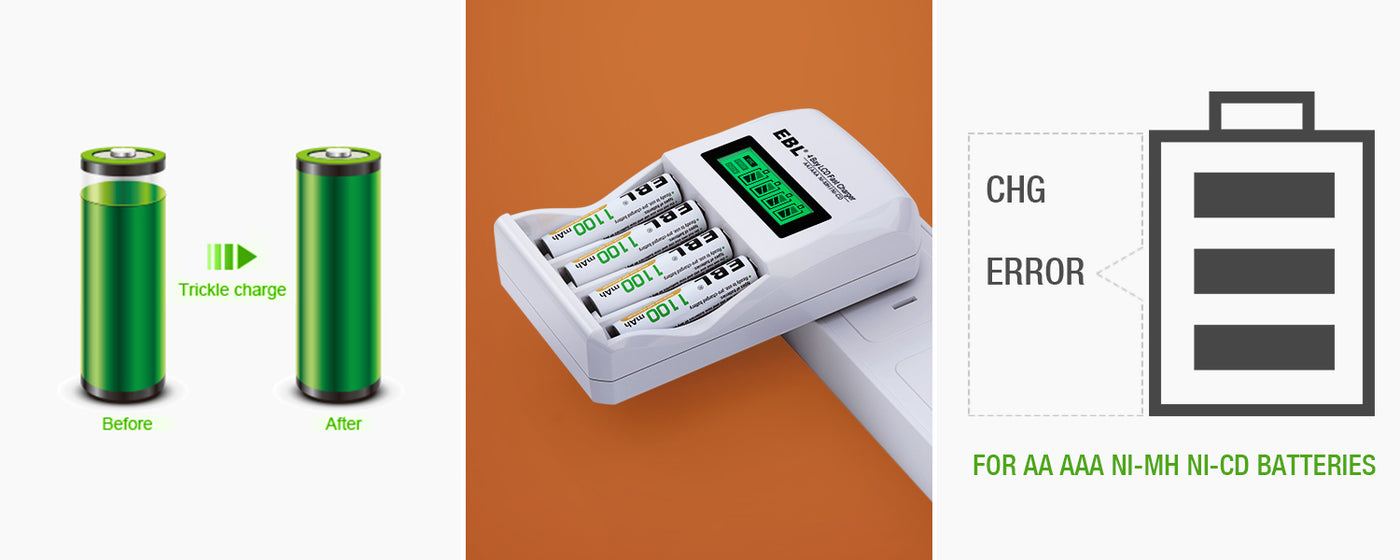

【Unique Trickle Charge 】
Adopting -∆V intellectual cut-off charging method, automatically turn to trickle charge, overheat-detection to prevent over-charging, short circuit protection and reverse polarity protection.
【Specification of Charger】
|
Model No.
|
907 Battery Charger
|
Brand
|
EBL
|
|
Compatible
|
1,2,3,4 AA and AAA Ni-MH Ni-CD rechargeable batteries
|
|

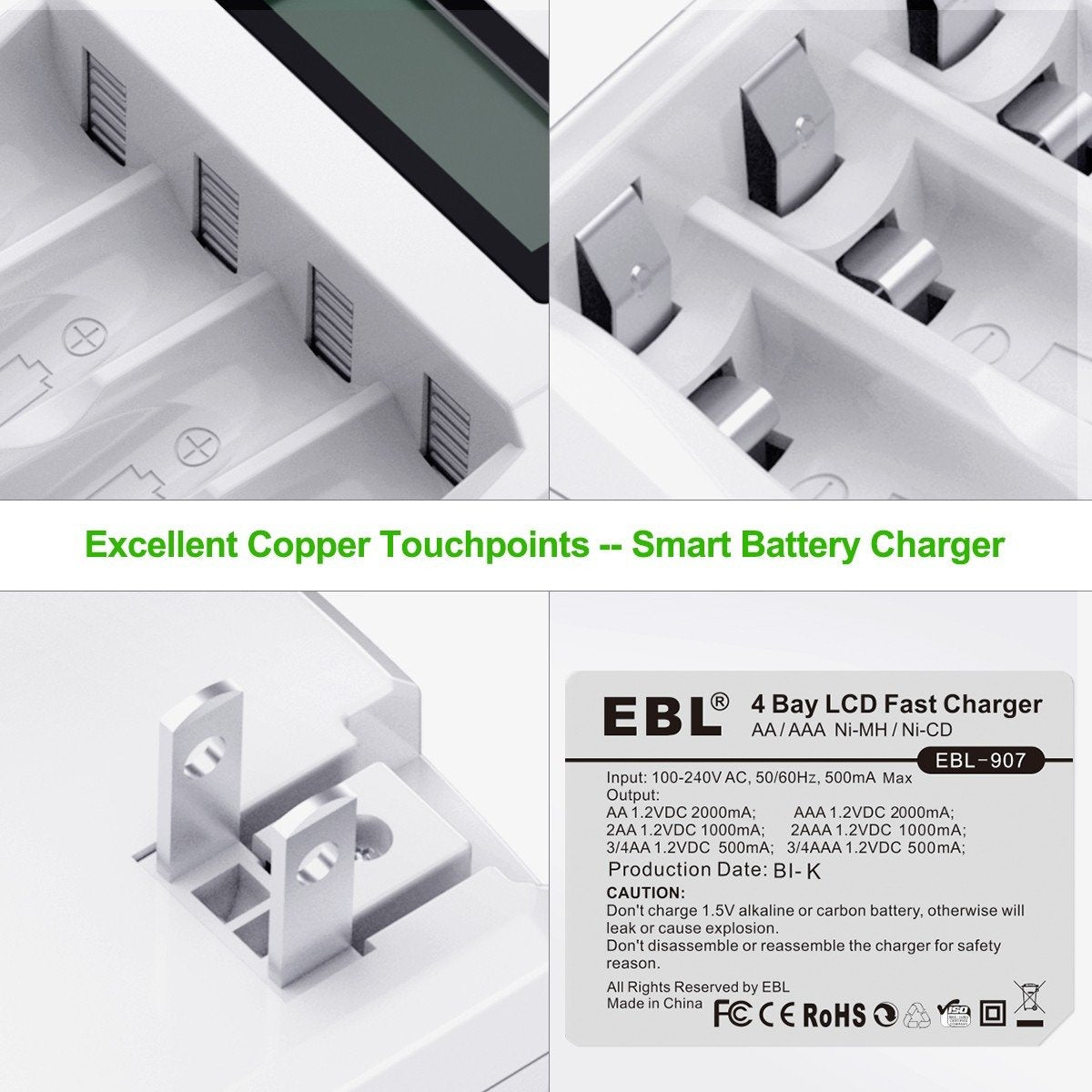

Input
|
100-240V AC, 50/60 Hz 500mA Max
|
|
Output
|
1 x AA 1.2V DC 2000mA, 1 x AAA 1.2V DC 2000mA;
2 x AA 1.2V DC 1000mA, 2 x AAA 1.2V DC 1000mA;
3 x AA 1.2V DC 500mA, 3 x AAA 1.2V DC 500mA;
4 x AA 1.2V DC 500mA, 4 x AAA 1.2V DC 500mA;
|
|
Dimensions of charger
|
(114*68*28.5)±3mm
|
Weight of charger
|
99±5g/3.67oz
|
Powerful EBL Rechargeable Batteries
【Low self-discharge】
Embedded seal structure expand the space of crystal lattice, make more room for hydrogen, so EBL batteries will holds 80% power after 3 years benefit from its concentration to low self-discharge project.
【High Performance】
Up to 1,200 rechargeable cycles. Precharged 15%~20% of capacity by solar energy. Could be used when you get it. Longer life in the high drain devices than normal Alkaline batteries.
【Great for Daily Use】
Great for high power demand devices such as digital camera, remote controls, alarm-clocks, children' toys and so on.
🔋Specification of AA Battery
| Battery Size |
AA Batteries |
Brand |
EBL |
| Voltage |
1.2V |
Battery Type |
Ni-MH |
| Rechargeable |
Yes |
Capacity |
2800mAh |
| Weight of 1 cell |
29.2g/1.03oz |
Dimensions of 1 cell |
50.5*14.5mm |
🔋Specification of AAA Battery
|
Battery Size
|
AAA Batteries
|
Brand
|
EBL
|
|
Voltage
|
1.2V
|
Battery Type
|
Ni-MH
|
|
Rechargeable
|
Yes
|
Capacity
|
1100mAh
|
|
Weight of single cell
|
13g/0.46oz
|
Dimensions of single cell
|
44.35*10.35mm
|
【 What You Get 】
- 1 x EBL 907 Battery Charger
- 1 x User Manual
- 8 x AA Batteries 2800mAh / 8 x AAA Batteries 1100mAh
【Attention】

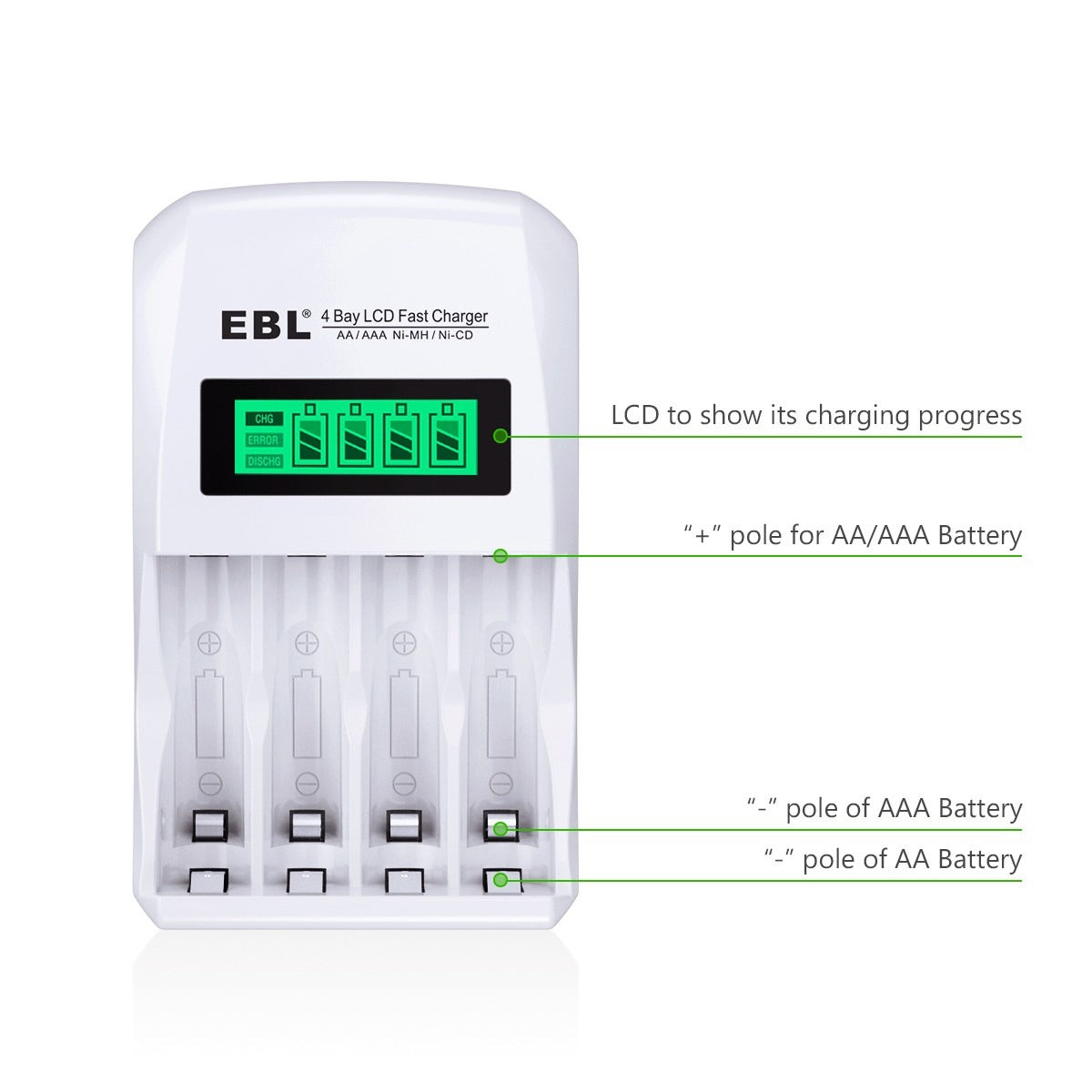

- Please ensure the battery installed is correct: make the +/- pole of the battery is match for the +/- pole of the charger.
- Never mix charge different type and different capacity of batteries under the same LED indicator.
- Using environment: 0℃ to 40℃, it is normal phenomenon that the battery is warmer than room temperature when charging.
- Do not disassemble or reassemble the charger by yourself for safety reason.
