EBL 8 Slots LCD Battery Charger with AA AAA Rechargeable Batteries

EBL 8 Slots LCD Battery Charger with AA Rechargeable Batteries

EBLOfficial

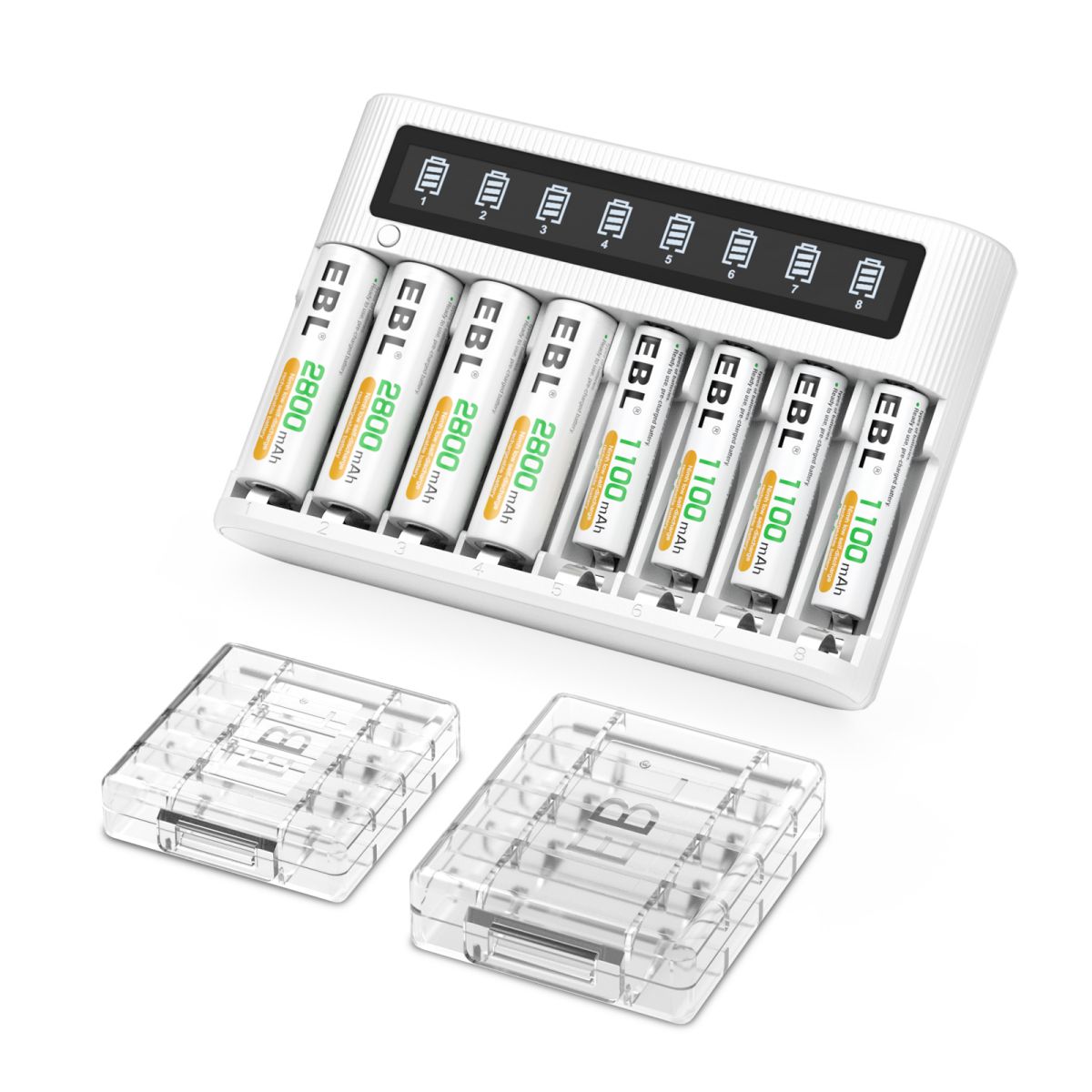

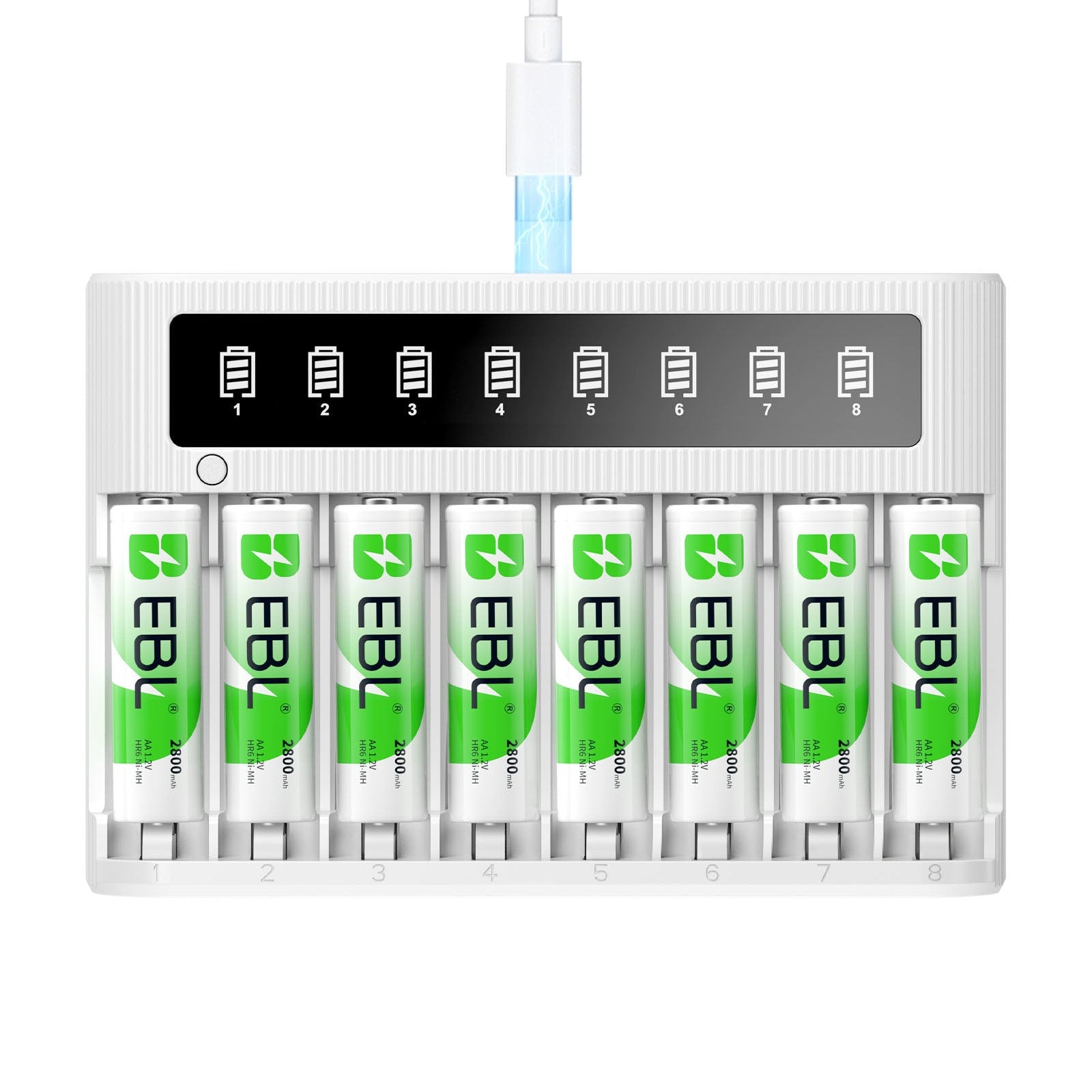

EBL AA AAA Batteries with FY-809 8-Bay LCD Battery Charger

SKU: EB-68091222

$26.99

$38.97

Sold out

Tax excluded. Shipping calculated at checkout

Style: 8 Bay Charger + 4 PCS AA (2800mAh) + 4 PCS AAA (1100mAh)

Download User Guide (PDF)

EBL AA AAA Rechargeable Batteries with 8 Slots LCD Battery Charger for Ni-MH Ni-CD rechargeable batteries

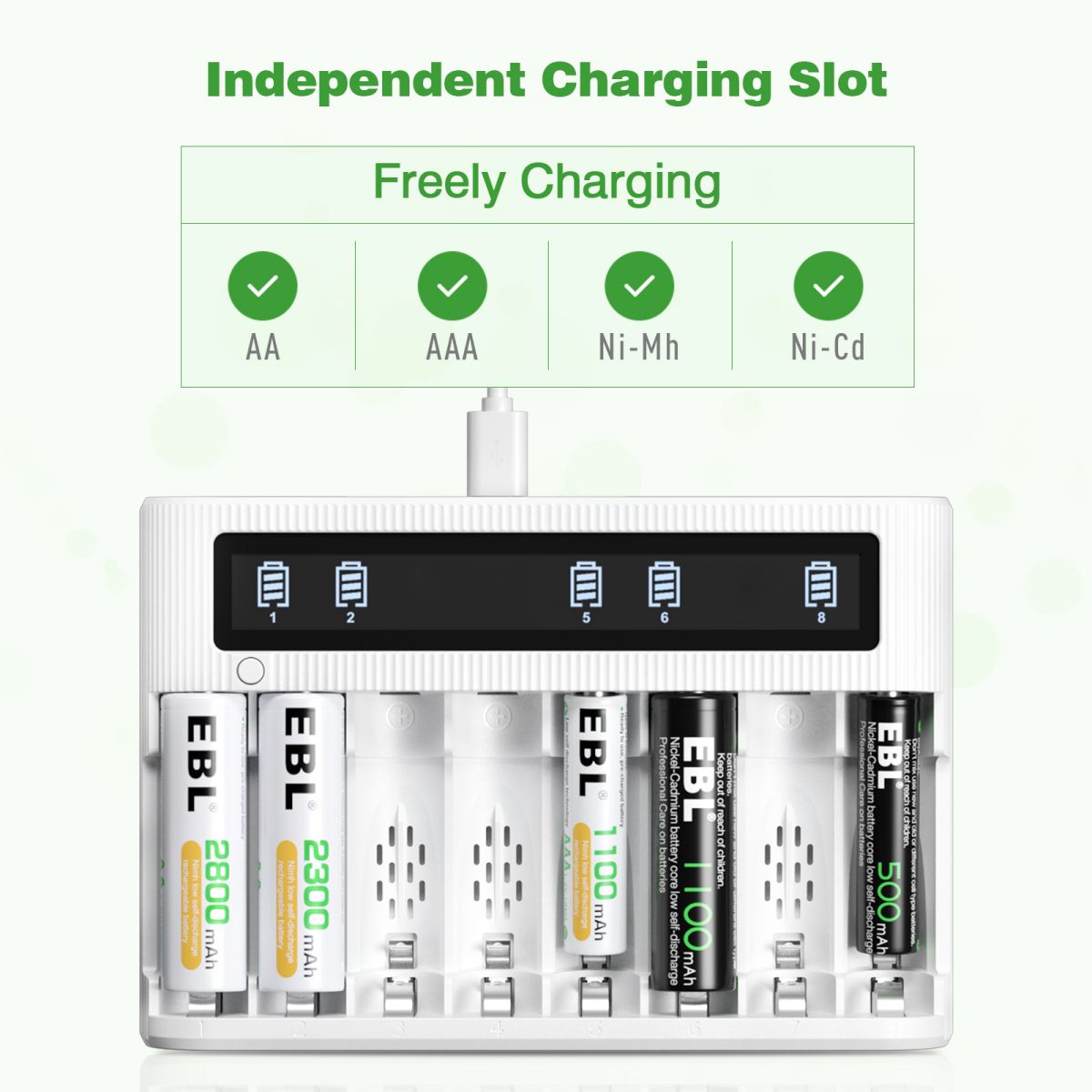

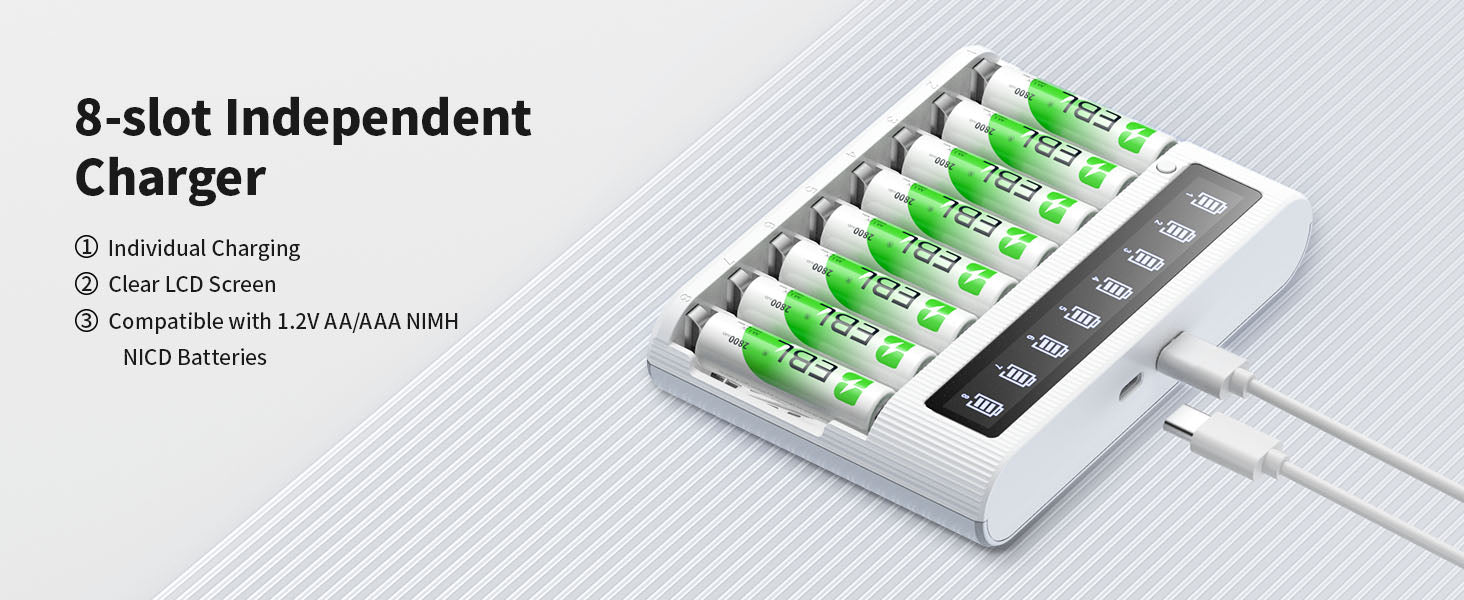

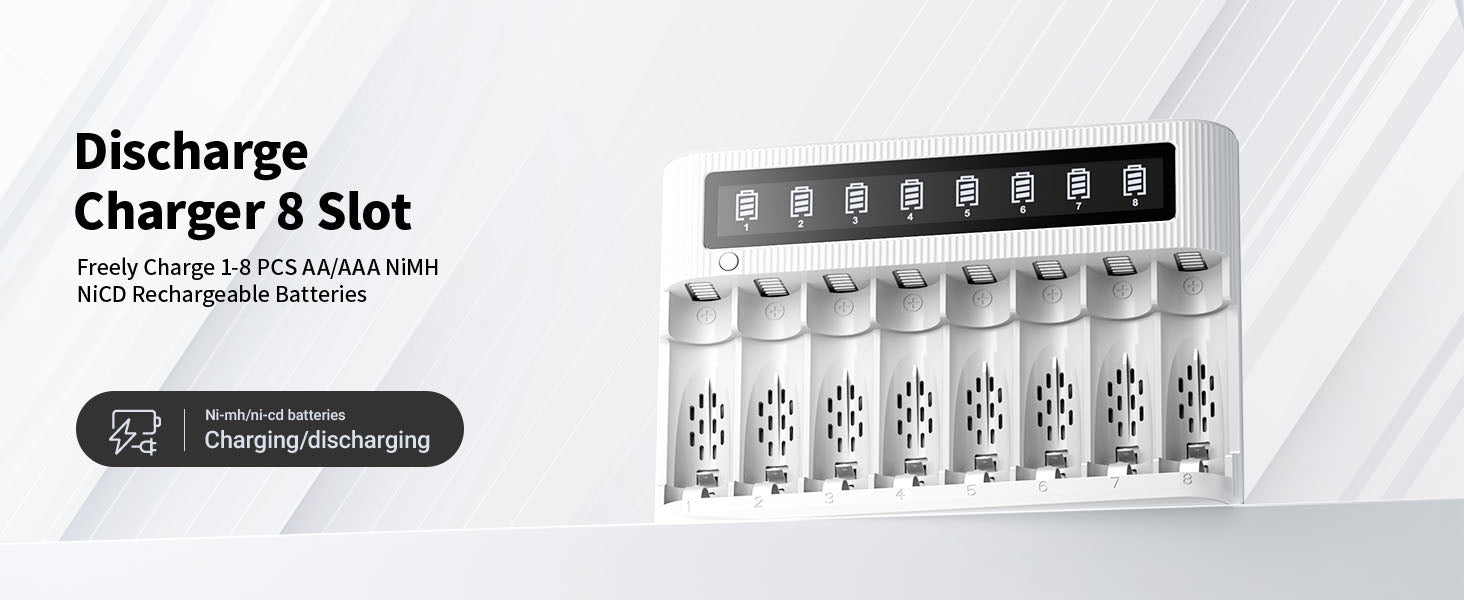

✅Individual & Fast Charging Slot

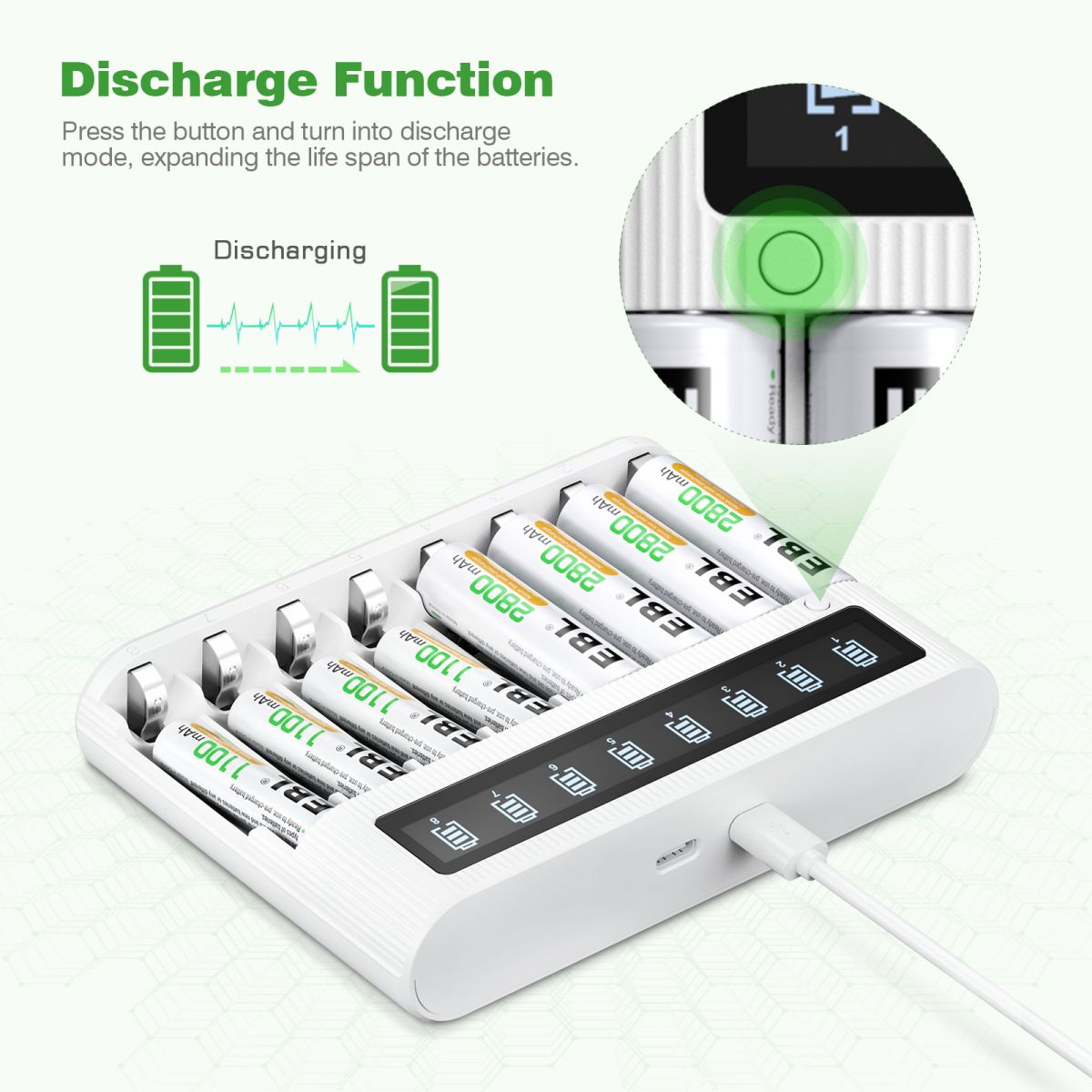

EBL FY-809 LCD AA battery charger adopted with 8 independent slots, can freely charge or discharge 1-8 AA AAA Ni-MH Ni-CD rechargeable batteries at the same time. Up to 1000mA large output gives you a speedy charging experience.

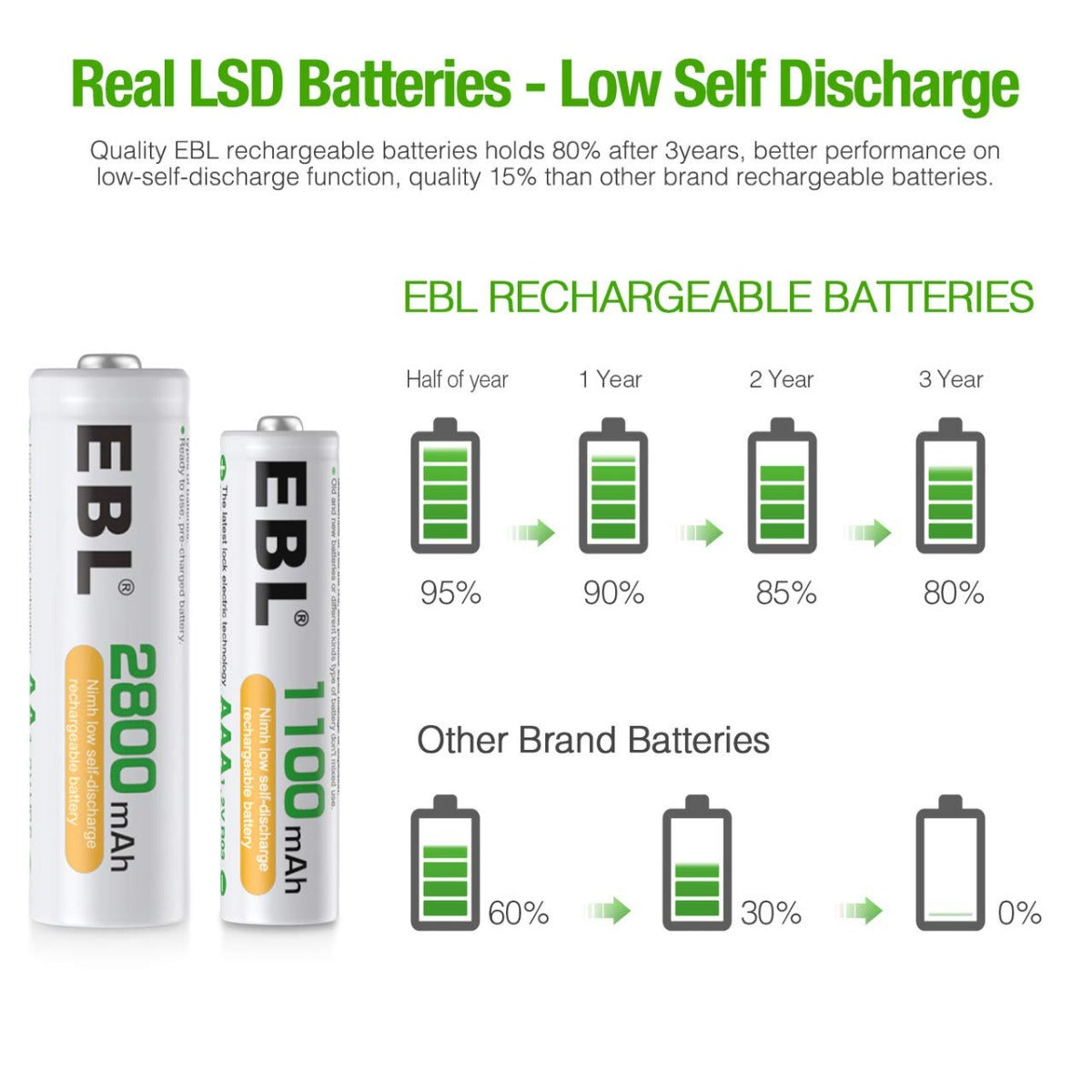

✅Low-Self Discharge Function

Designed with a low self-discharge function, the battery will maintain 80% capacity after 3 years of non-use.

Specification of FY-809 8-Bay LCD Battery Charger

Model No.	FY-809 Battery Charger	Brand	EBL
Compatible	1-8 pcs AA AAA Ni-MH Ni-CD rechargeable batteries

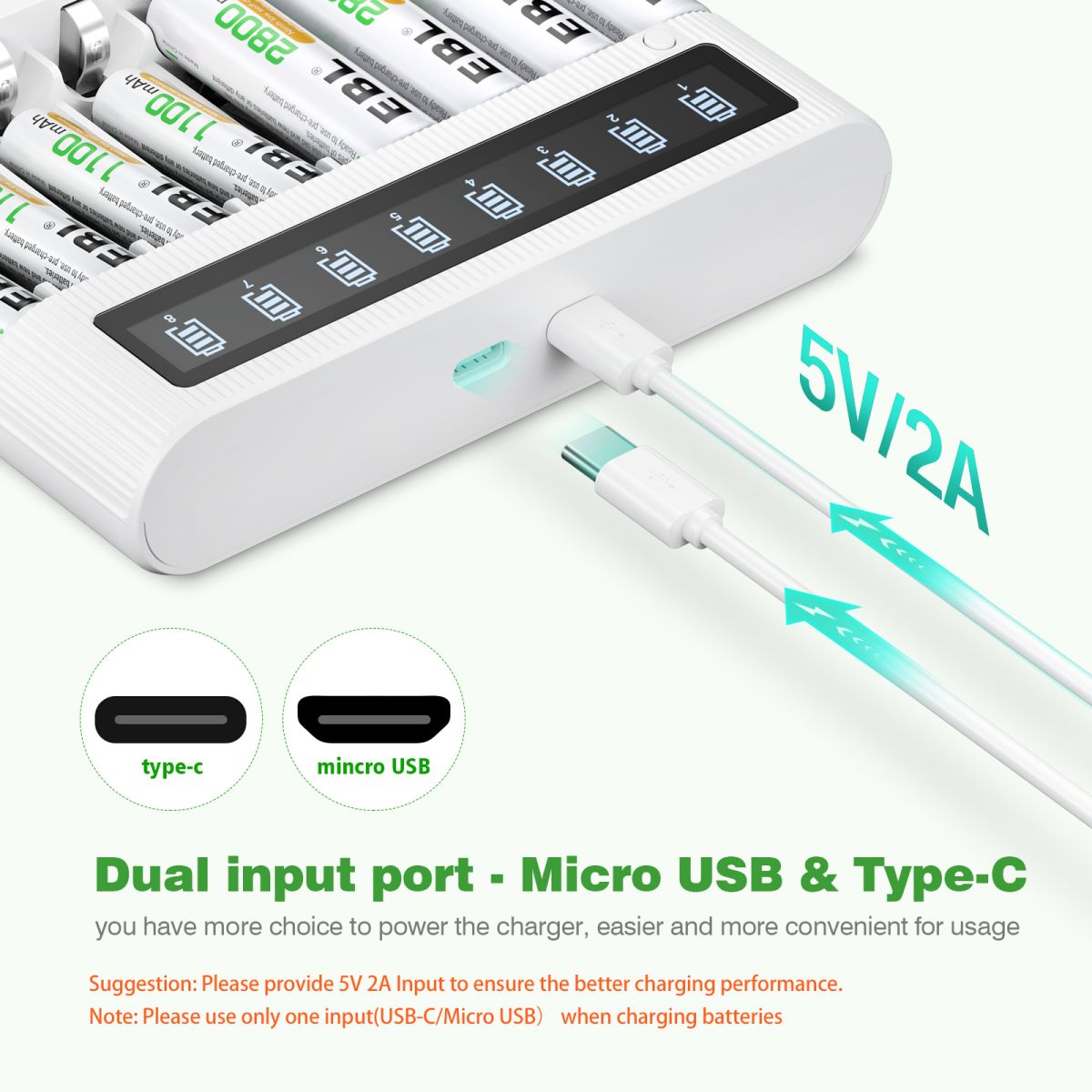

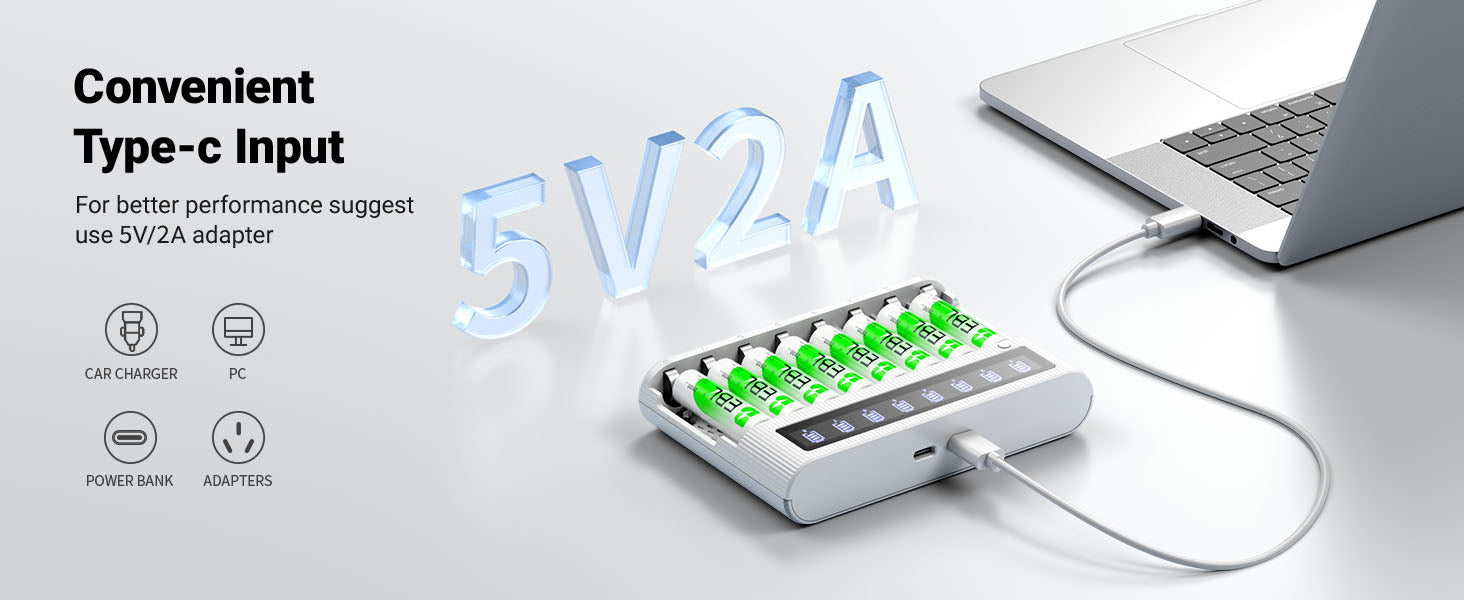

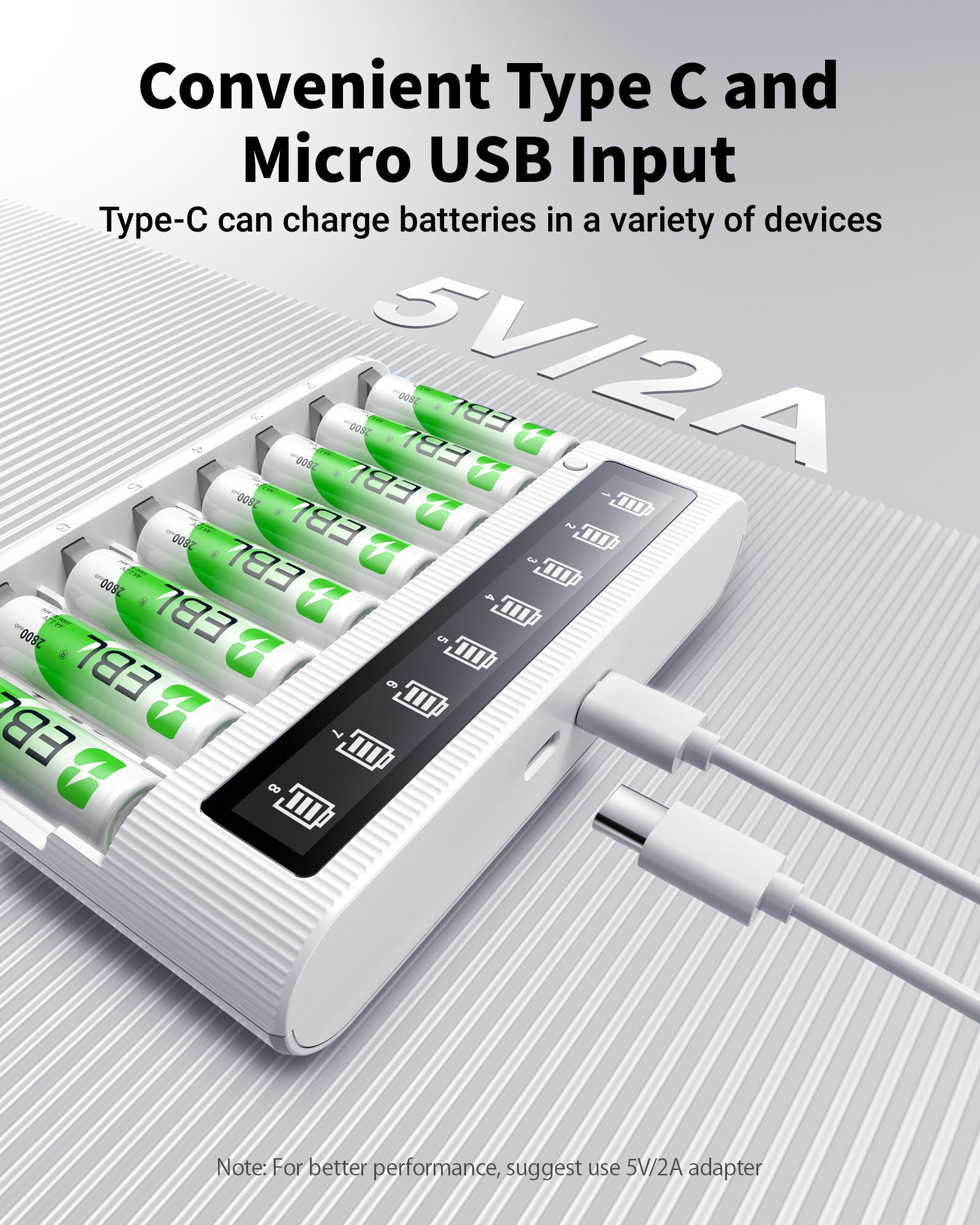

Input	DC 5V 2A	Output	DC 1.4V

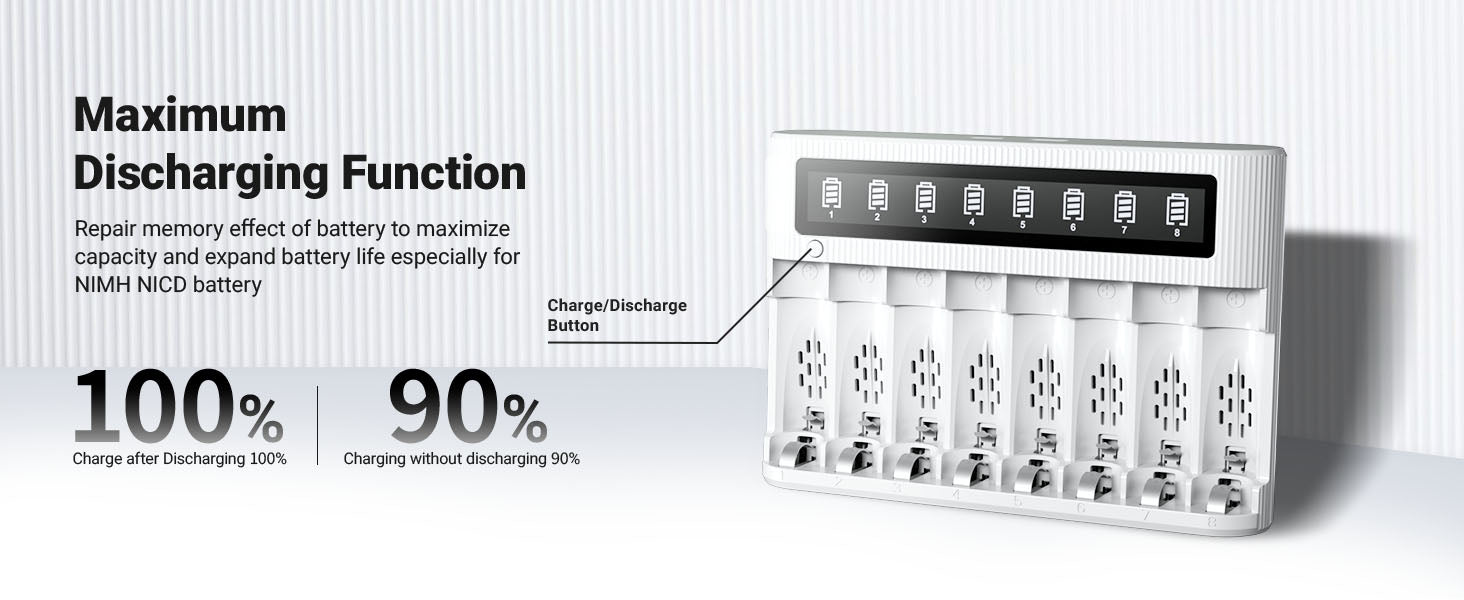

Output Current	AA/AAA1: 1A AA/AAA2/3...7/8: 500mA	Discharge Current	AA/AAA 250mA
No-load Power Consumption	≤0.3W	Battery Charging Rate	≧90%
Dimensions of charger	(133.4690.6926.26)±0.3mm	Weight of charger	145.1±5g/5.29oz

Specification of AA Battery

Battery Size	AA Batteries	Brand	EBL
Voltage	1.2V	Battery Type	Ni-MH
Rechargeable	Yes	Capacity	2800mAh
Charge Current	Trickle: 0.02C-0.05C Standard: 210mA x 16H Quick: 420mA x 7H Rapid: 1050mA x 2.4H	Discharge Current	Standard: 420mA High Rate: 2100mA
End voltage of discharge	1V
Open circuit voltage	1.25V	Internal impedance	≤38mΩ
Weight of Single AA Battery	24.8g/0.87oz	Dimensions of Single AA Battery	(50.5-1)*(14.5-0.7)mm

Specification of AAA Battery

Battery Size	AAA Batteries	Brand	EBL
Voltage	1.2V	Battery Type	Ni-MH
Rechargeable	Yes	Capacity	1100mAh
Charge Current	Trickle: 0.02C-0.05C Standard: 80mA(0.1C) for 16H Quick: 160mA (0.2C) for 7H Rapid: 400mA (0.5C) for 2.4H	Discharge Current	Standard: 160mA (0.2C) High Rate: 800mA (1C)
End voltage of discharge	1V
Open circuit voltage	1.25V	Internal resistance	≤40 mΩ
Weight of Single AAA Battery	12±1.5g/0.42oz	Dimensions of Single AAA Battery	(44.35±0.3)*(10.35±0.25)mm
