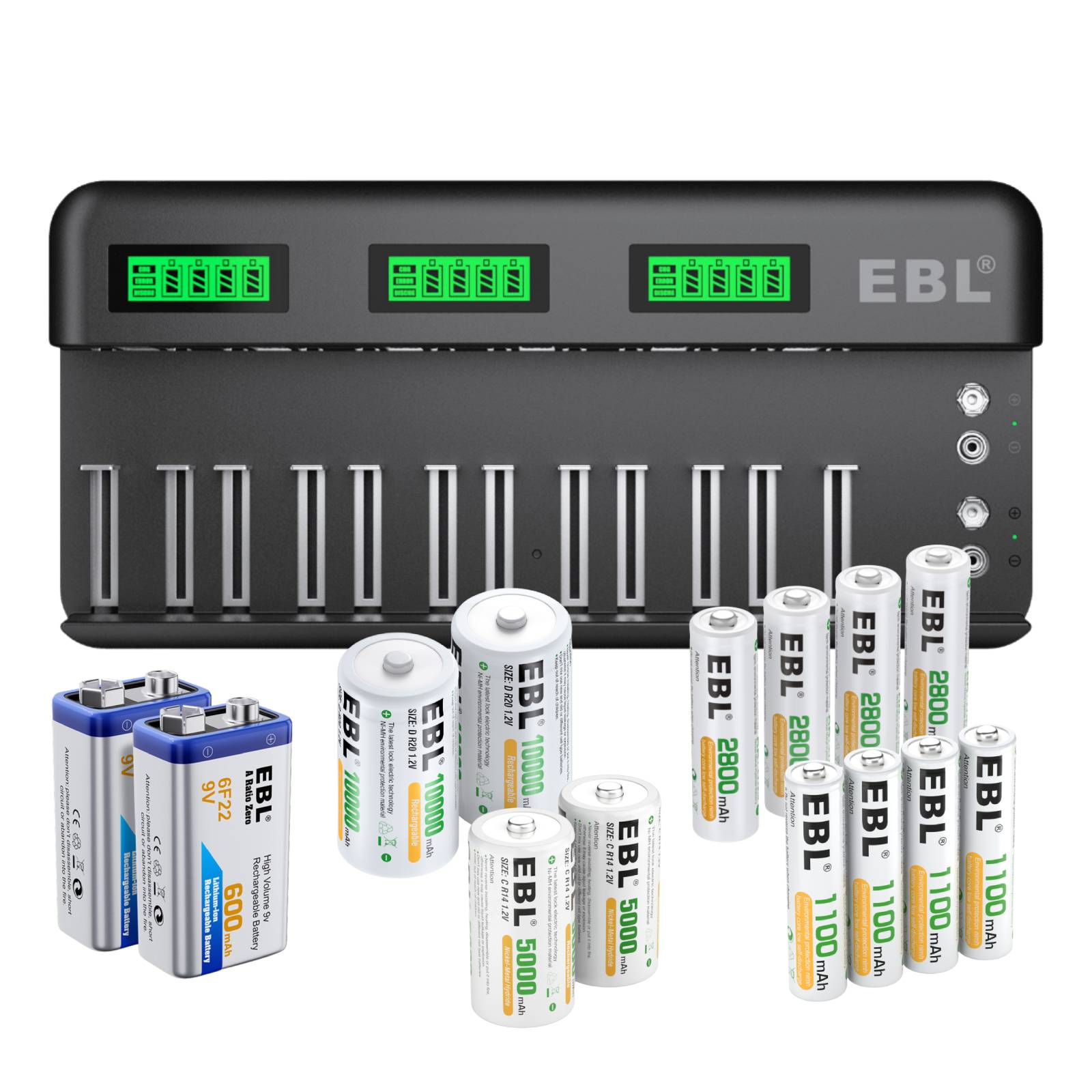

EBL 12+2 Bay Universal Battery Charger and AA AAA C D 9V Rechargeable Batteries
Tax excluded. Shipping calculated at checkout
Download User Guide (PDF)
EBL 12+2 Bay LCD Rechargeable Battery Charger with AA AAA C D Ni-MH Rechargeable Batteries & 9V Rechargeable Batteries (AC Power Supply)

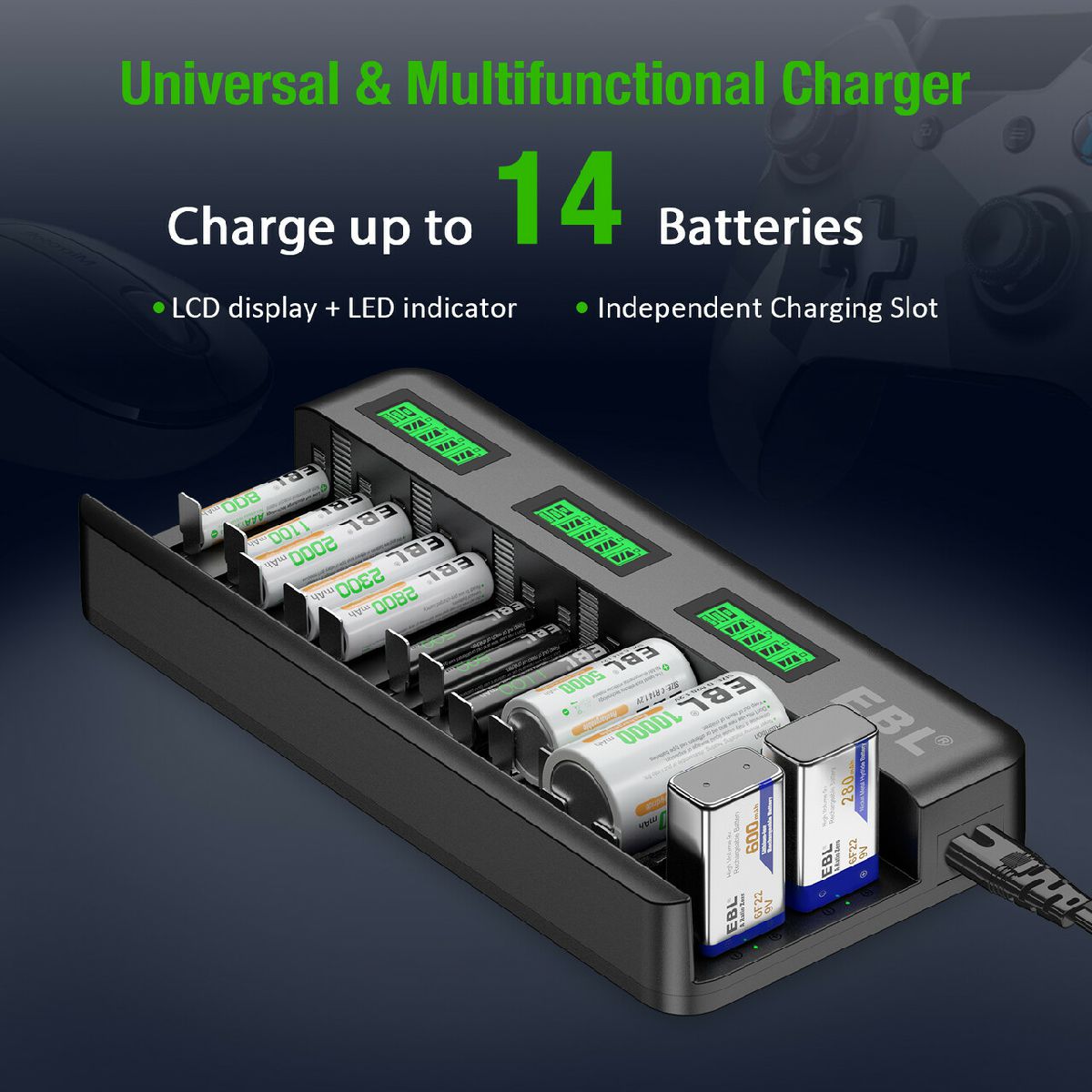

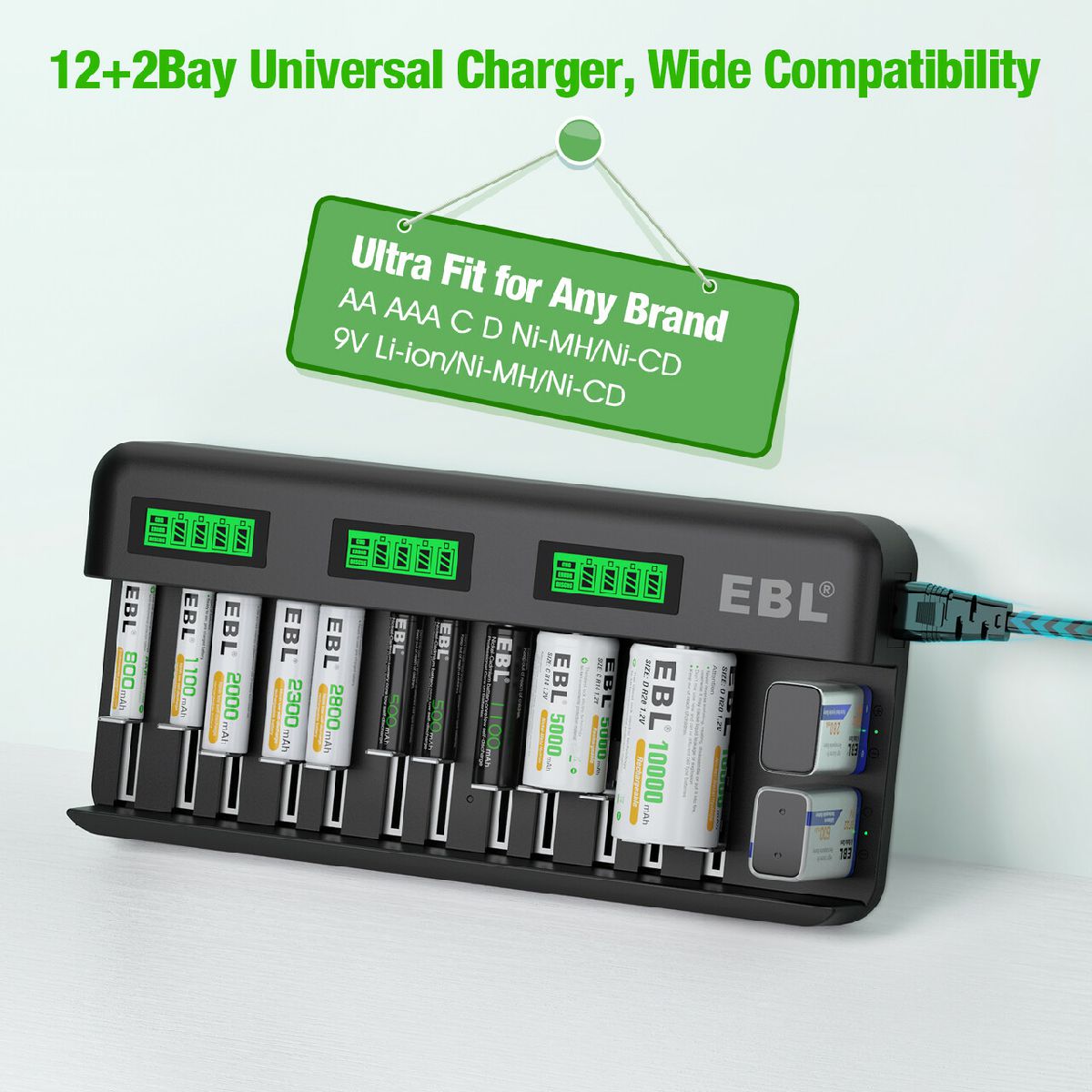

12+2 Bay Universal Charger
Up to 14 Different charging slots, allow you to charge 1-12PCS AA AAA or 1-6PCS C D Ni-MH/Ni-CD rechargeable batteries and 1-2 PCS 9V Li-ion/Ni-MH/Ni-CD rechargeable batteries, ultra-fit for any brand batteries. Both types of rechargeable batteries can be charged at the same time.

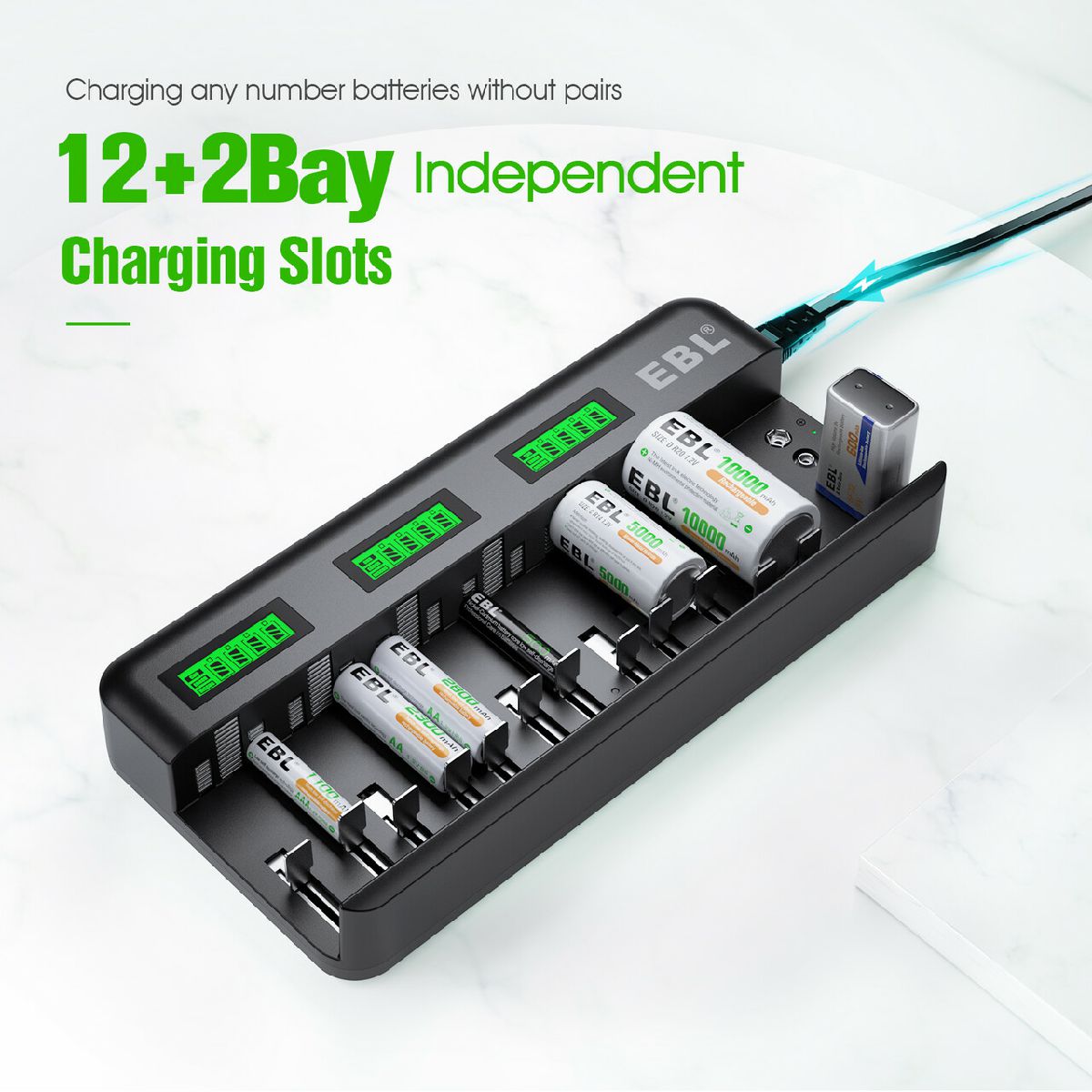

Individual 12+2 Charging Slots Universal Battery Charger
Could charge any number batteries without in pairs, to meet the needs of charging your multiple rechargeable batteries.

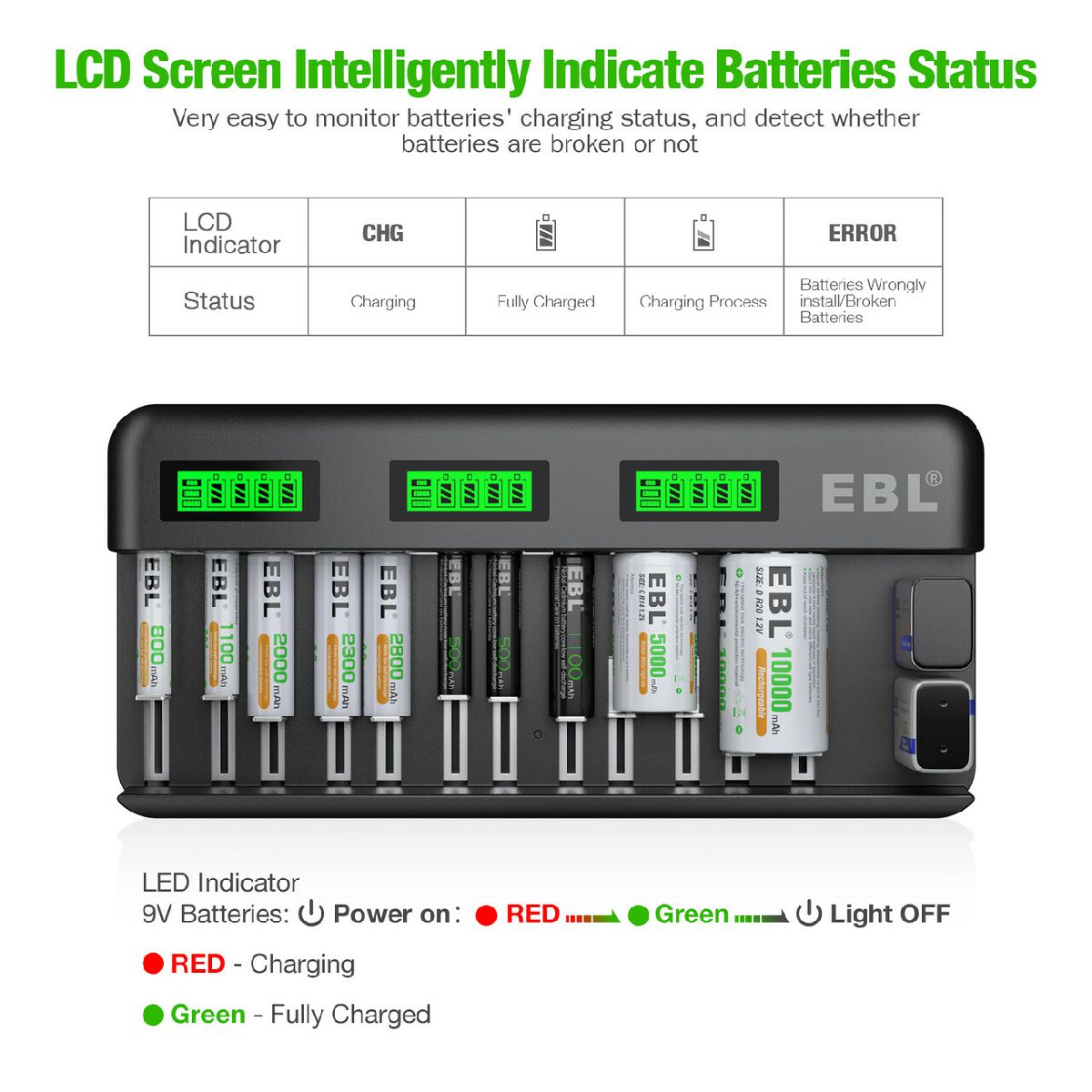

LCD Display Charger with LED Indicator
Rechargeable AA AAA C D Battery charger with smart LCD screen indicates the whole charging process for the AA AAA batteries and C D rechargeable batteries. "CHG" indicates charging. "ERROR" indicates battery damage or installation error, support battery repair function. (If the battery voltage is too low (0-0.9V), the charger can automatically repair the battery.)
LED indicates the 9V charging status, Red-Charging; Green-Fully Charged.

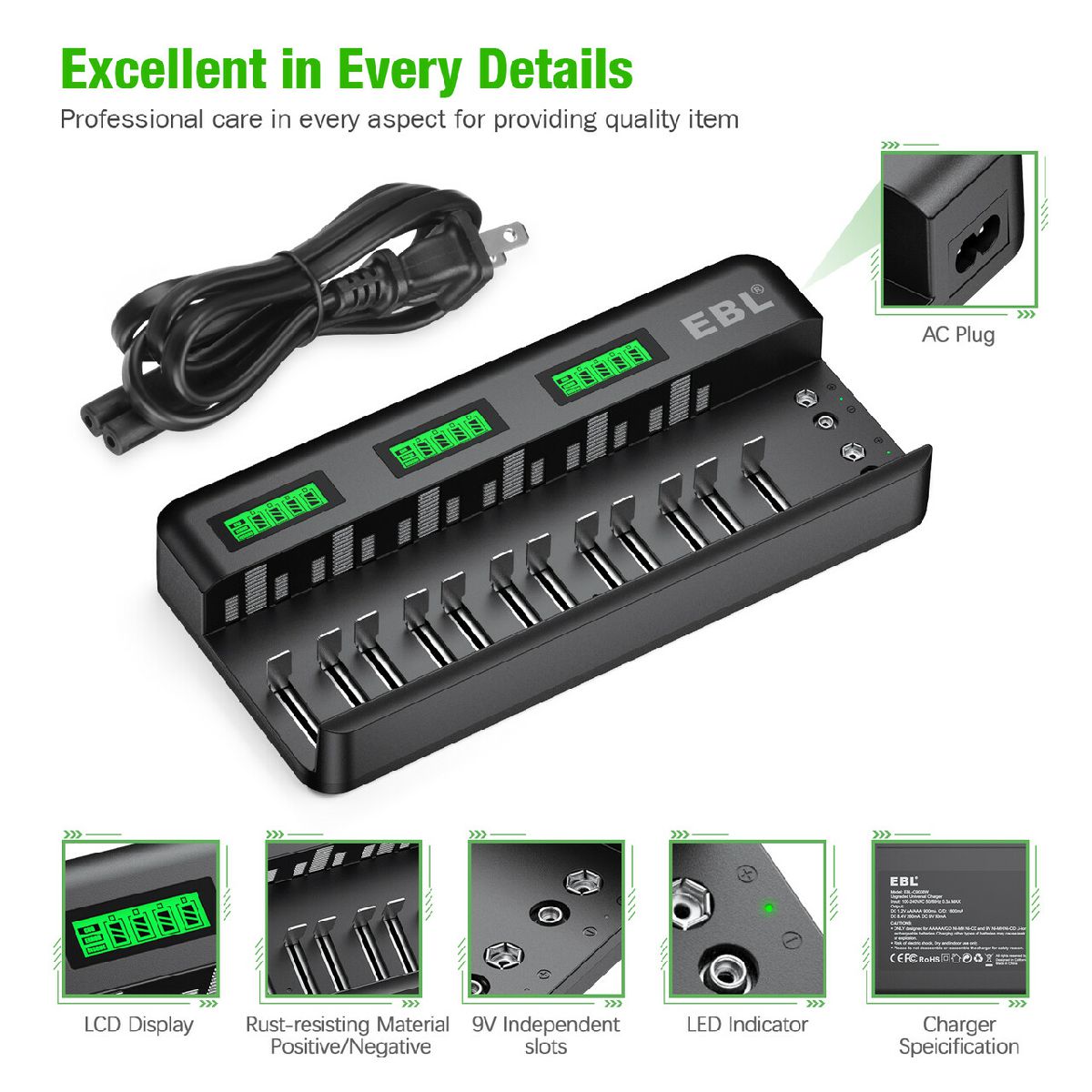

AC Power Supply and Excellent Charger in Every Details
Comes with an AC power cable. Worldwide 100~240v AC adapter, more convenient and easy for daily use, no need to worry about charging voltage, save your time.

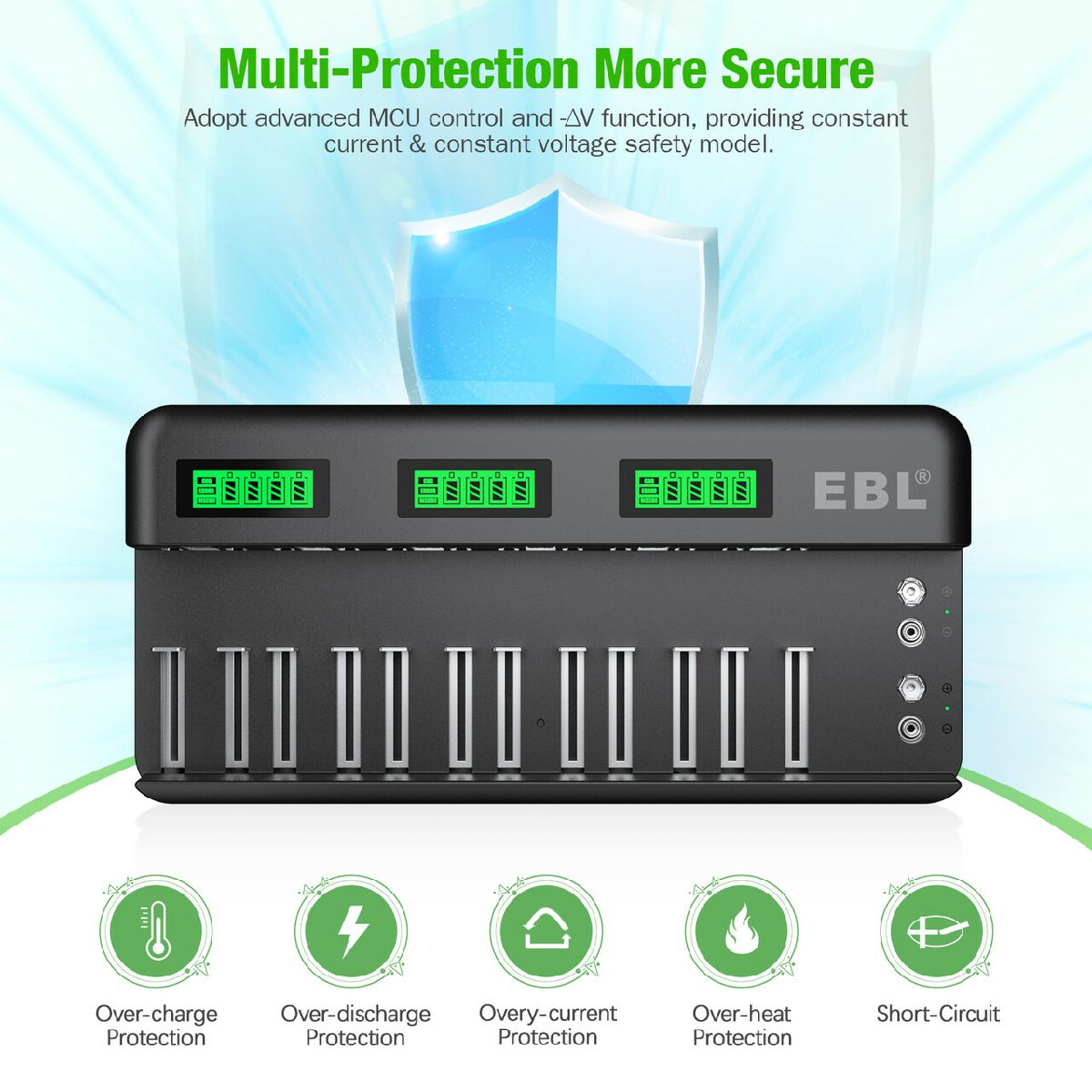

Safety Guarantee
Advanced MCU control and -∆V function, over-heat and over-current protection short-circuit protection, non-rechargeable and defective battery detection.
Specifications of C9036W Battery Charger
|
Model No. |
C9036W Universal Battery Charger |
Brand |
EBL |
|
Compatible |
1-12 pieces of AA AAA/Ni-MH Ni-CD rechargeable batteries |
||
|
Input |
100-240V AC 50/60HZ 0.3A MAX |
||
|
Consume when unloading battery |
2W MAX |
Consume when all channels loading batteries |
30W MAX |
|
Output |
AA/AAA: DC 1.2V 900mA |
||
|
Dimensions of charger |
(259*123*39.8)±3 mm |
Weight of charger |
403±10g/14.57oz |
- Working temperature: 0℃ - 35℃; Storage temperature: -10℃ -50℃
- Surface temperature of Charger: 35℃-80℃; Surface temperature of Battery: 25℃-60℃
- 1Pcs AA/AAA/C/D Ni-MH Ni-CD Rechargeable Batteries Charging Time Cable: AAA 800-1100mAh: 0.8-1.2 hours; AA 2300-2800mAh: 2.5-3 hours; C 5000mAh: 2.7 hours; D 10000mAh: 5.5 hours
- 1Pcs 9V Batteries Charging Time Cable: 9V 600mA: 2.3 hours; 9V 280mA: 3.5 hours
🔋EBL AA Ni-MH Rechargeable Batteries 2800mAh
Specifications
|
Battery Size |
AA Batteries |
Brand |
EBL |
|
Voltage |
1.2V |
Battery Type |
|
|
Rechargeable |
Yes |
Capacity |
2800mAh |
|
Charge Current |
Trickle: 0.02C-0.05C Standard: 210mA x 16H Quick: 420mA x 7H Rapid: 1050mA x 2.4H |
Discharge Current |
Standard: 420mA High Rate: 2100mA
|
|
End voltage of discharge |
1V |
|
|
|
Open circuit voltage |
1.25V |
Internal impedance |
≤38mΩ |
|
Weight of Single AA Battery |
24.8g/0.87oz |
Dimensions of Single AA Battery |
(50.5-1)*(14.5-0.7)mm |
🔋EBL AAA Rechargeable Ni-MH Batteries 1100mAh
Specifications
|
Battery Size |
AAA Batteries |
Brand |
EBL |
|
Voltage |
1.2V |
Battery Type |
|
|
Rechargeable |
Yes |
Capacity |
1100mAh |
|
Charge Current |
Trickle: 0.02C-0.05C Standard: 80mA for 16H Quick: 160mA for 7H Rapid: 400mA for 2.4H |
Discharge Current |
Standard: 160mA High Rate: 800mA |
|
End voltage of discharge |
1V |
|
|
|
Open circuit voltage |
1.25V |
Internal resistance |
≤40 mΩ |
|
Weight of Single AAA Battery |
12±1.5g/0.42oz |
Dimensions of Single AAA Battery |
(44.35±0.3)*(10.35±0.25)mm |
🔋EBL D Size Rechargeable Batteries 10000mAh
Specification
| Battery Size | D Batteries | Rechargeable | Yes |
| Capacity | 10000mAh | Battery Type | Ni-MH |
| Voltage | 1.2V | Brand | EBL |
| Weight of Single Cell | 126±2g/4.45oz | Dimensions of Single Cell | 33*61.5mm |
🔋EBL C Ni-MH Rechargeable Batteries 5000mAh
Specification
| Battery Size | C Batteries | Rechargeable | Yes |
| Capacity | 5000mAh | Battery Type | Ni-MH |
| Voltage | 1.2V | Brand | EBL |
| Weight of Single Cell | 73g/2.57oz | Dimensions of Single Cell | (50.0-1.5)*(25.8-1.0)mm |
🔋EBL 9V Rechargeable Ni-MH Battery 280mAh
Specification
| Battery Size | 9V | Rechargeable | Yes | Capacity | 280mAh |
| Battery Type | Ni-MH | Total Resistor | ≤700mΩ | Brand | EBL |
| Rated Voltage | 8.4V | Charge limited voltage | 10.5V | Discharge-off voltage | 7V |
| Standard Charging | 15mA×15hrs | Standard Discharge | 30mA≥300min | Rapid Charging Current | 150mA×1.1hrs |
| Dimensions of single battery | 45.4*26.6*17.3mm | Weight of single battery | 35g/1.23oz | Rapid Discharge Current | 150mA≥54min |
🔋EBL 9V Li-ion Rechargeable Batteries 600mAh
Specification
|
Battery Size
|
9V
|
Brand
|
EBL
|
|
Battery Type
|
Li-ion
|
Capacity
|
600mAh
|
|
Rechargeable
|
Yes
|
Rated Voltage
|
7.4V
|
|
Charge limited voltage
|
8.4V
|
Discharge-off voltage
|
5.6V
|
|
Charging Current
|
Standard: 100mA
Rapid: 500mA
|
Discharge Current
|
Standard: 100mA
Rapid: 500mA
|
|
Operating Temperature Range
|
Charge: 32℉ ~ 113℉
Discharge: 14℉ ~ 122℉
|
Total Resistor
|
≤230mΩ
|
|
Weight of single battery
|
22g/0.77oz
|
Dimensions of single battery
|
(47.9*25.9*17.3)±0.5mm
|

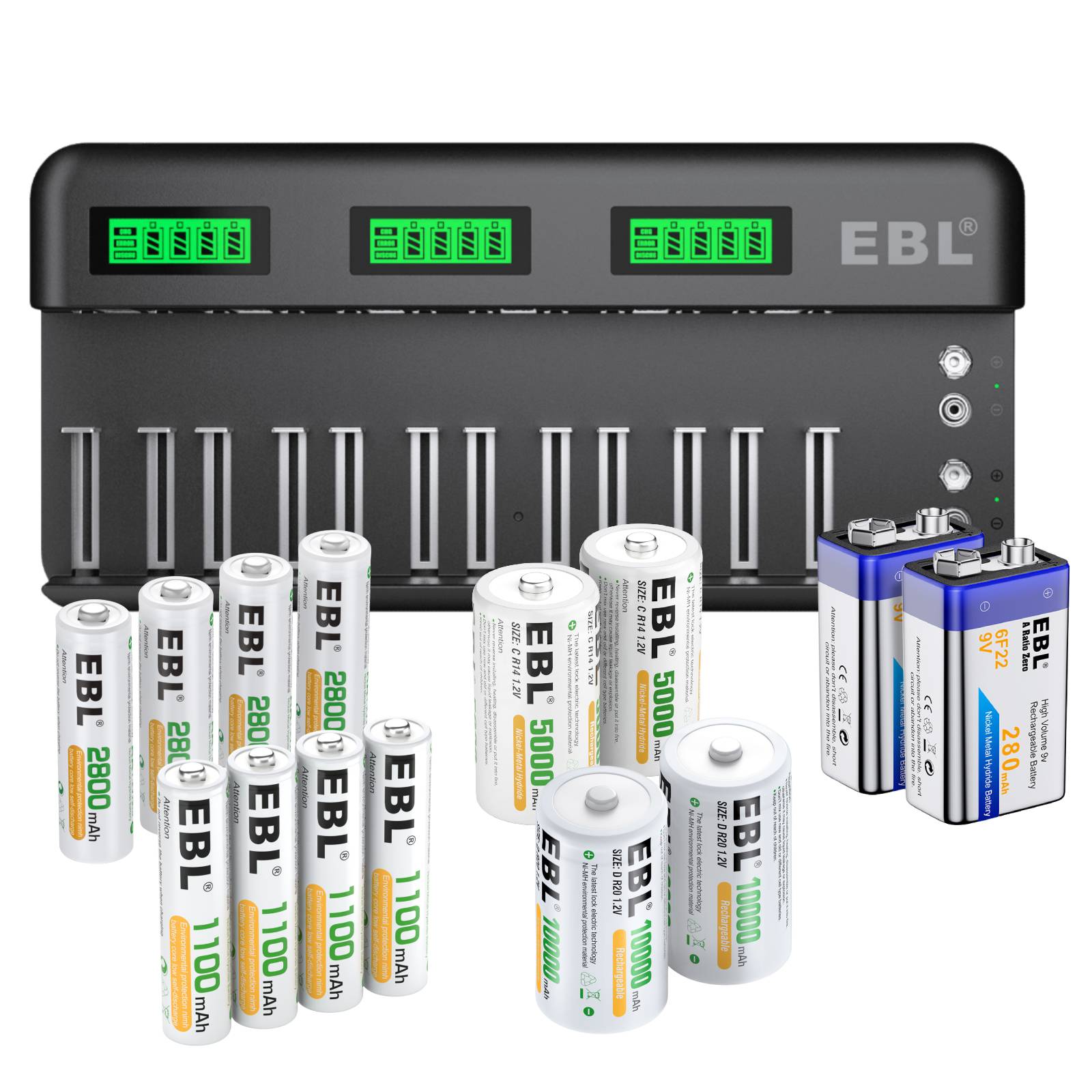

What You Get
| C9036W Battery Charger + AA AAA C D Ni-Mh Batteries and 9V Li-ion Batteries |
|
| C9036W Battery Charger + AA AAA C D 9V Ni-Mh Batteries |
|
